914219 Removing and installing rear loudspeaker

WM 914219 Removing and installing rear loudspeaker

Information

Some of the repair illustrations show only one side of the vehicle. Naturally, some steps also have to be performed on the opposite side of the vehicle as well. These must be carried out as a mirror image of the steps shown.

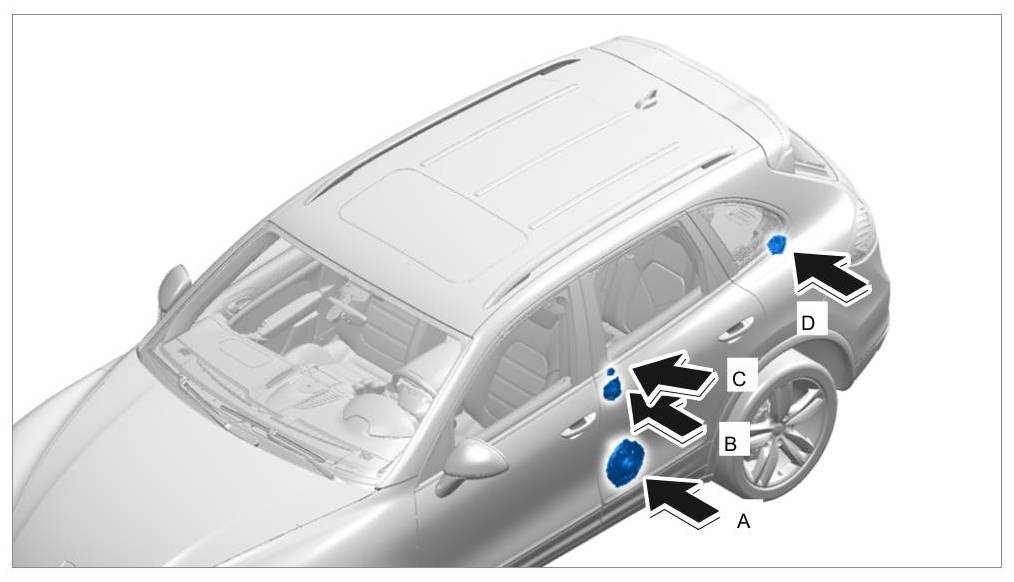

Installation position of rear loudspeakers





Preliminary work

Preliminary work for low-range loudspeaker in rear door

Remove rear door panel. -> 707319 Removing and installing rear door panel - section on "Removing" 707319 Removing and installing rear door panel

Preliminary work for mid-range loudspeaker in rear door

Remove rear door panel. -> 707319 Removing and installing rear door panel - section on "Removing" 707319 Removing and installing rear door panel

Preliminary work for tweeter in rear door

Remove rear door panel. -> 707319 Removing and installing rear door panel - section on "Removing" 707319 Removing and installing rear door panel

Preliminary work for tweeter in rear side trim panel

Remove side trim panel for rear luggage compartment. -> 700319 Removing and installing side trim panel for rear luggage compartment - section on "Removing" Service and Repair

Removing rear loudspeaker

Removing low-range loudspeaker in rear door

NOTICE

Incorrect handling of components

- Risk of irreparable damage to electric and electronic components
- Reduced functionality

-> Switch off the ignition, remove the ignition key and switch off the audio system before removing the loudspeakers.
-> Never pull the connectors directly off the loudspeaker.

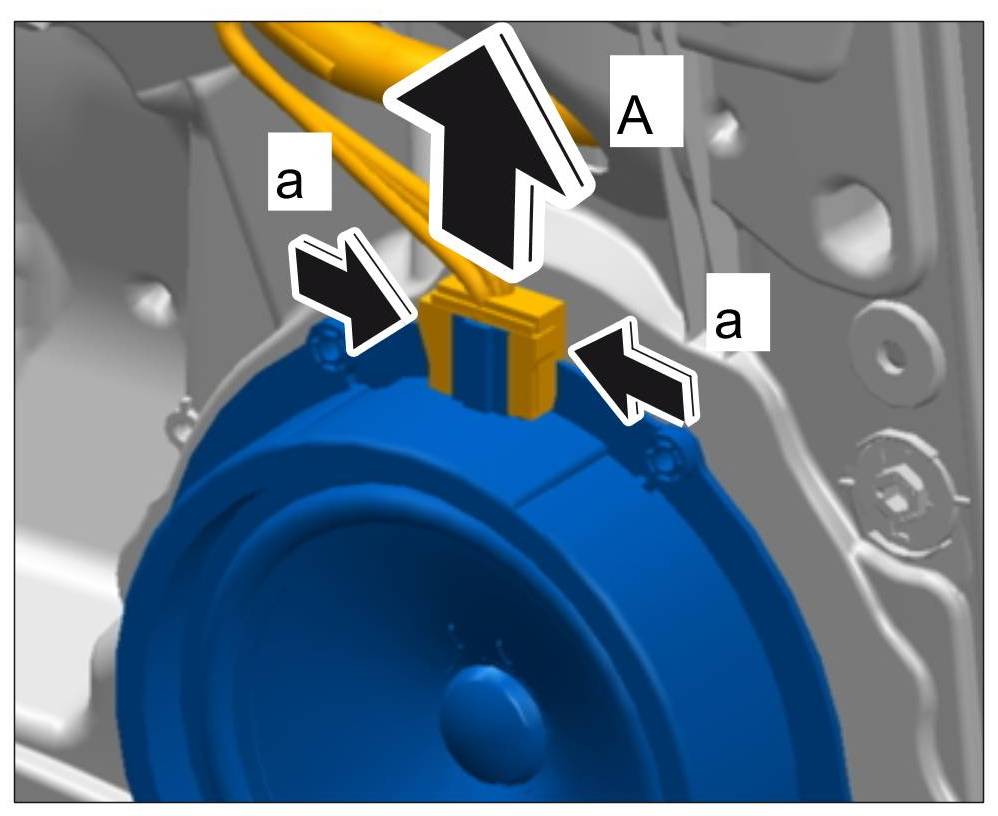

1. Release electric plug connection -a- and pull it off -A-.





Plug connection for low-range loudspeaker in rear door

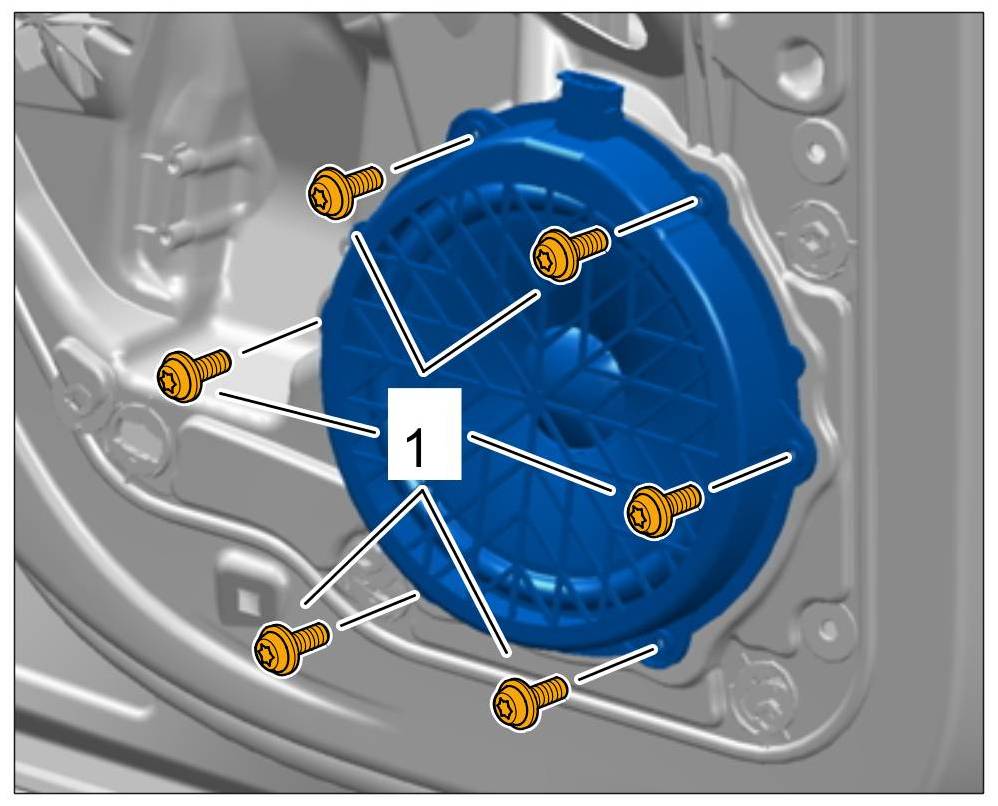

2. Unscrew six fastening screws -1-.





Low-range loudspeaker in rear door

Removing mid-range loudspeaker from rear door

NOTICE

Incorrect handling of components

- Risk of irreparable damage to electric and electronic components
- Reduced functionality

-> Switch off the ignition, remove the ignition key and switch off the audio system before removing the loudspeakers.
-> Never pull the connectors directly off the loudspeaker.

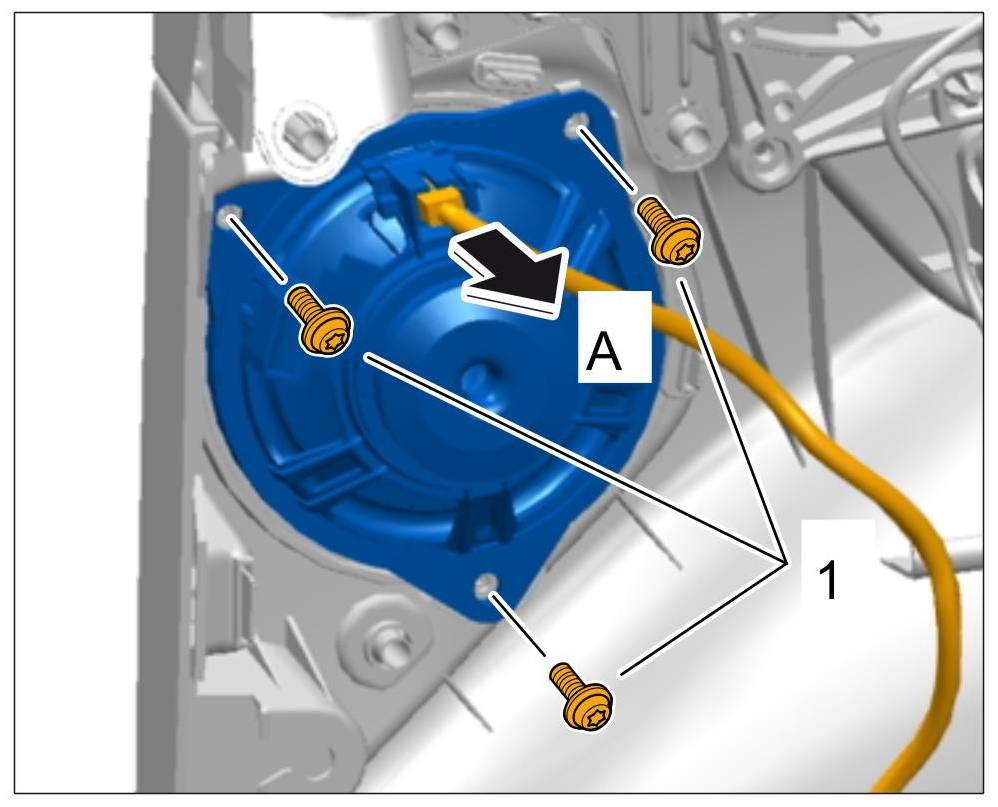

1. Unscrew three fastening screws -1-.





Removing mid-range loudspeaker

2. Unplug electric plug connection -A-.

Removing tweeter in rear door

NOTICE

Incorrect handling of components

- Risk of irreparable damage to electric and electronic components
- Reduced functionality

-> Switch off the ignition, remove the ignition key and switch off the audio system before removing the loudspeakers.
-> Never pull the connectors directly off the loudspeaker.

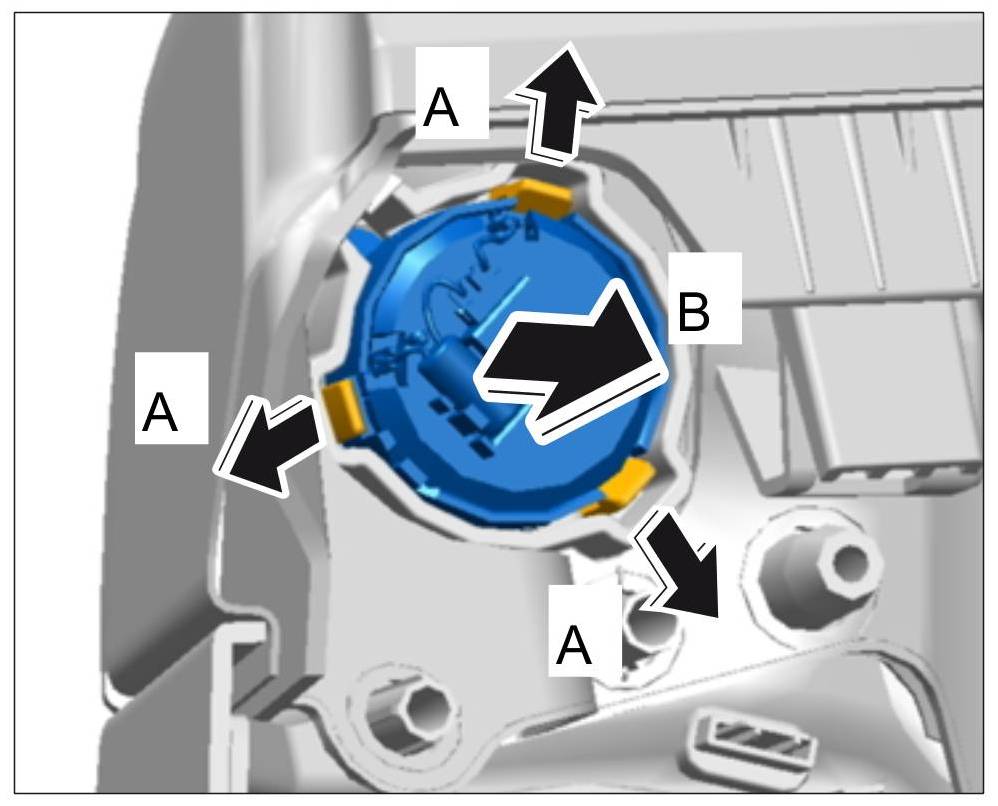

1. Press the three locks outwards -A- and remove the loudspeaker -B-.





Removing tweeter in rear door

Removing tweeter from rear side trim panel

NOTICE

Incorrect handling of components

- Risk of irreparable damage to electric and electronic components
- Reduced functionality

-> Switch off the ignition, remove the ignition key and switch off the audio system before removing the loudspeakers.
-> Never pull the connectors directly off the loudspeaker.

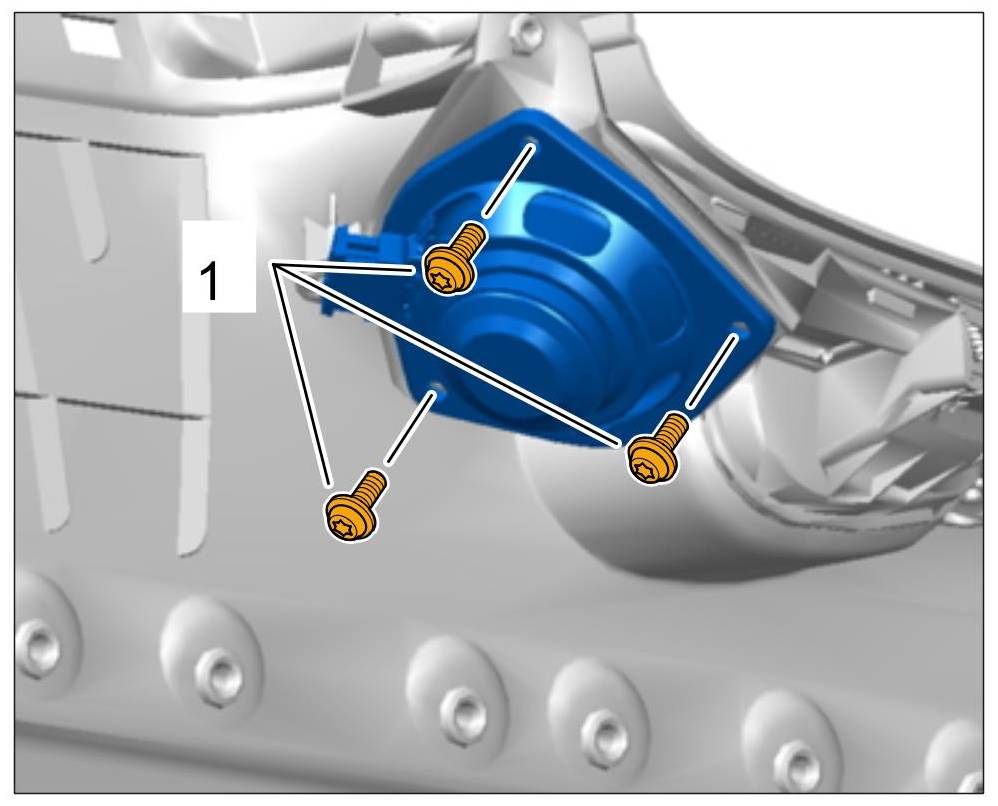

1. Unscrew three fastening screws -1-.





Removing tweeter from rear side trim panel

Installing rear loudspeaker

Installing low-range loudspeaker in rear door

The low-range loudspeaker is installed in the rear door in reverse order to removal.

Installing mid-range loudspeaker in rear door

The mid-range loudspeaker is installed in the rear door in reverse order to removal.

Installing tweeter in rear door

The tweeter is installed in the rear door in reverse order to removal.

Installing tweeter in rear side trim panel

The tweeter is installed in the rear side trim panel in reverse order to removal.

Subsequent work

Subsequent work for low-range loudspeaker in rear door

1. Install rear door panel. -> 707319 Removing and installing rear door panel - section on "Installing" 707319 Removing and installing rear door panel

Subsequent work for mid-range loudspeaker in rear door

1. Install rear door panel. -> 707319 Removing and installing rear door panel - section on "Installing" 707319 Removing and installing rear door panel

Subsequent work for tweeter in rear door

1. Install rear door panel. -> 707319 Removing and installing rear door panel - section on "Installing" 707319 Removing and installing rear door panel

Subsequent work for tweeter in rear side trim panel

Install side trim panel for rear luggage compartment. -> 700319 Removing and installing side trim panel for rear luggage compartment - section on "Installing" Service and Repair
