G41S

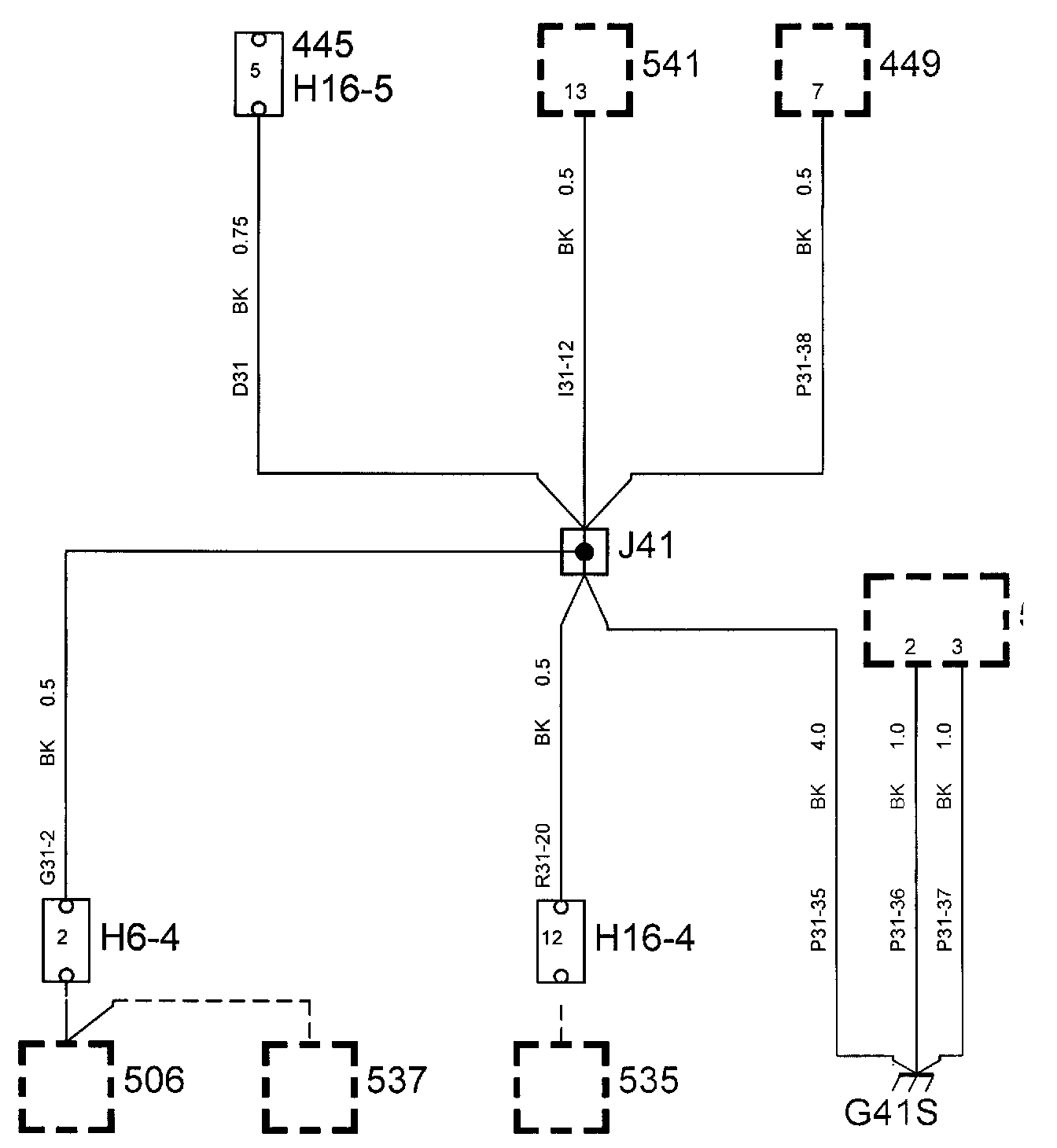

Grounding Point G41S


G41S:











Location: On the left-hand ground screw in the middle of the knee member (in the interior).

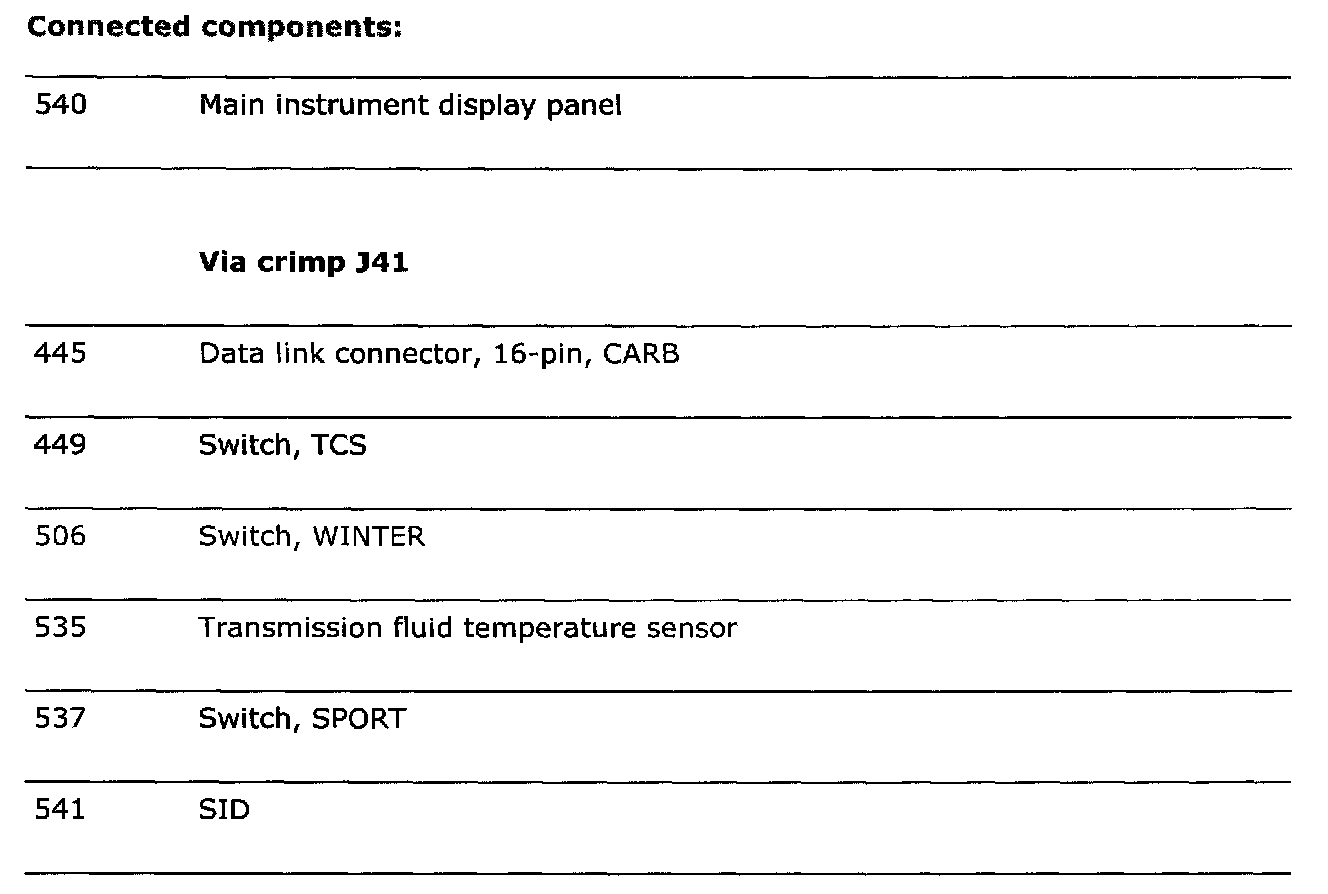

Connected Components:
