Saab
>>
2001
>>
9-5 SE Wagon (9600) V6-3.0L Turbo (B308)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Splices
>>
J73, Instrument Harness
J73, Instrument Harness

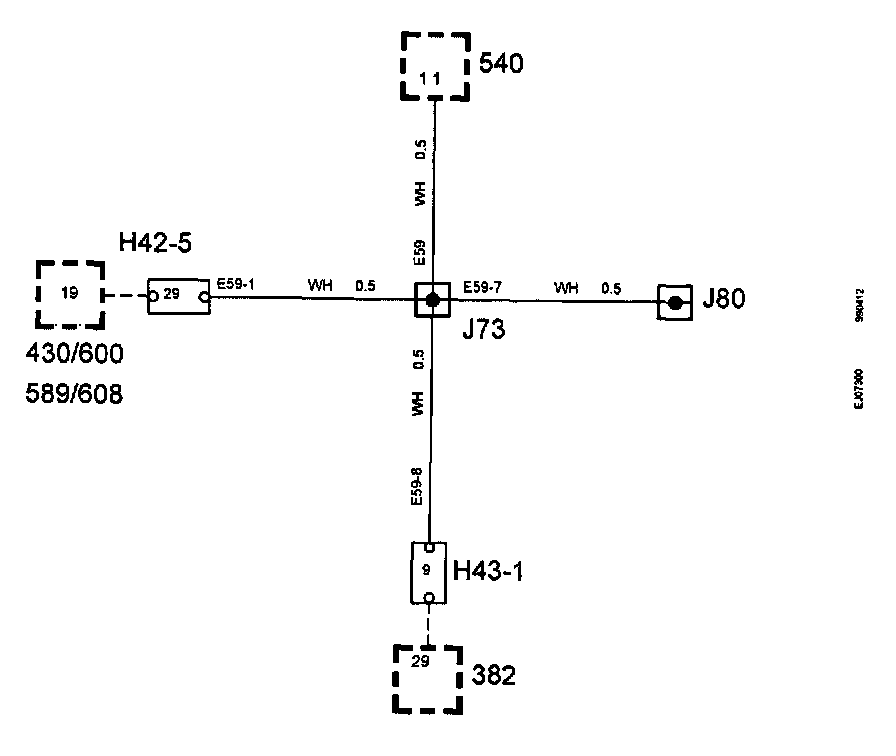

Crimp connection J73, instrument harness
