Restraints and Safety Systems
>>
Seat Belt Tensioner
>>

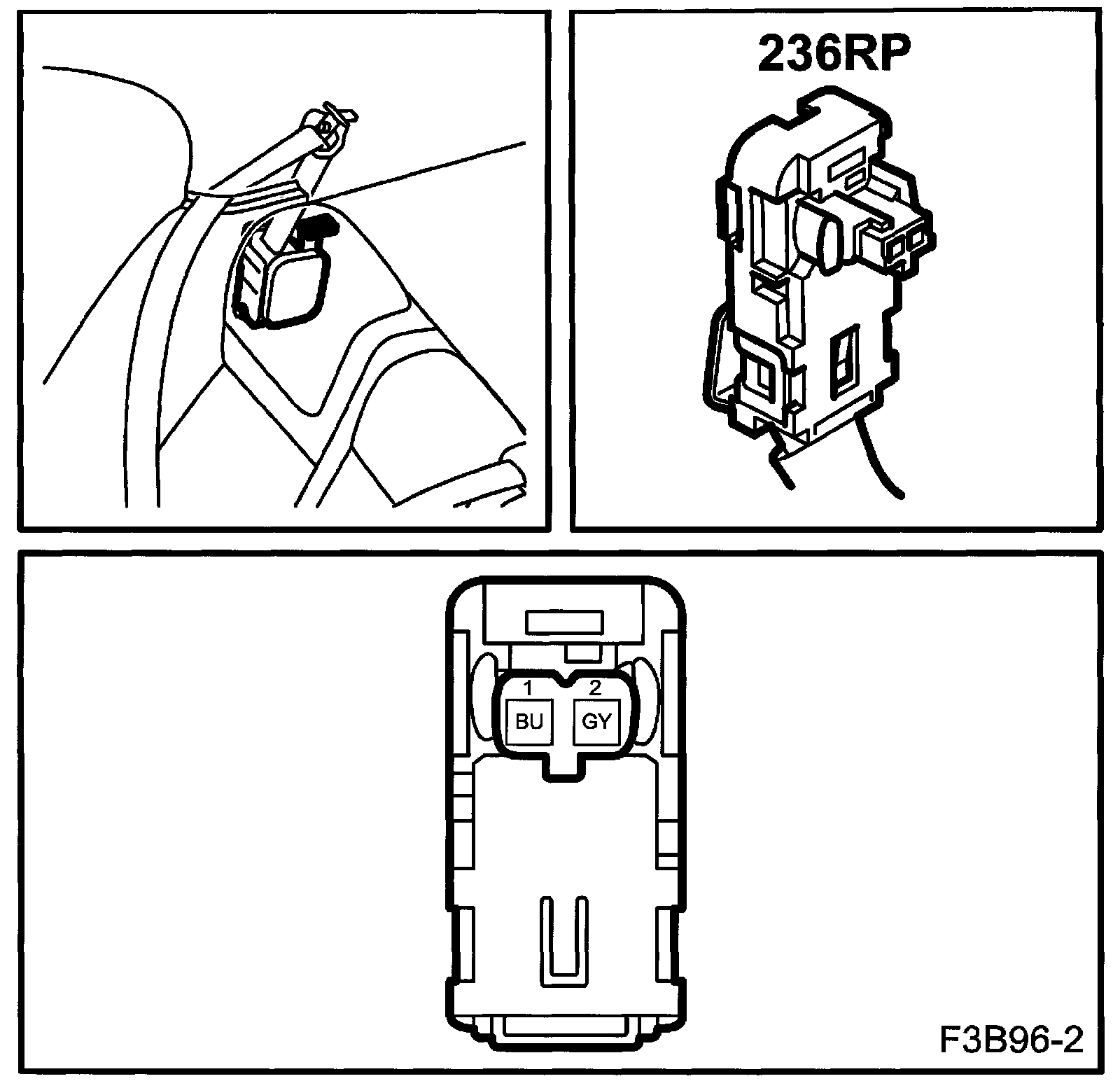

Belt Tensioner, Rear Seat, Passenger's Side (236RP)
Belt Tensioner, Rear Seat, Passenger's Side (236RP)
Location:
under the parcel shelf
Belt Tensioner, Rear Seat, Passenger Side (236RP):
