5D

Antenna Amplifier, 5D

To remove
1. Remove the rear side trim, 5D

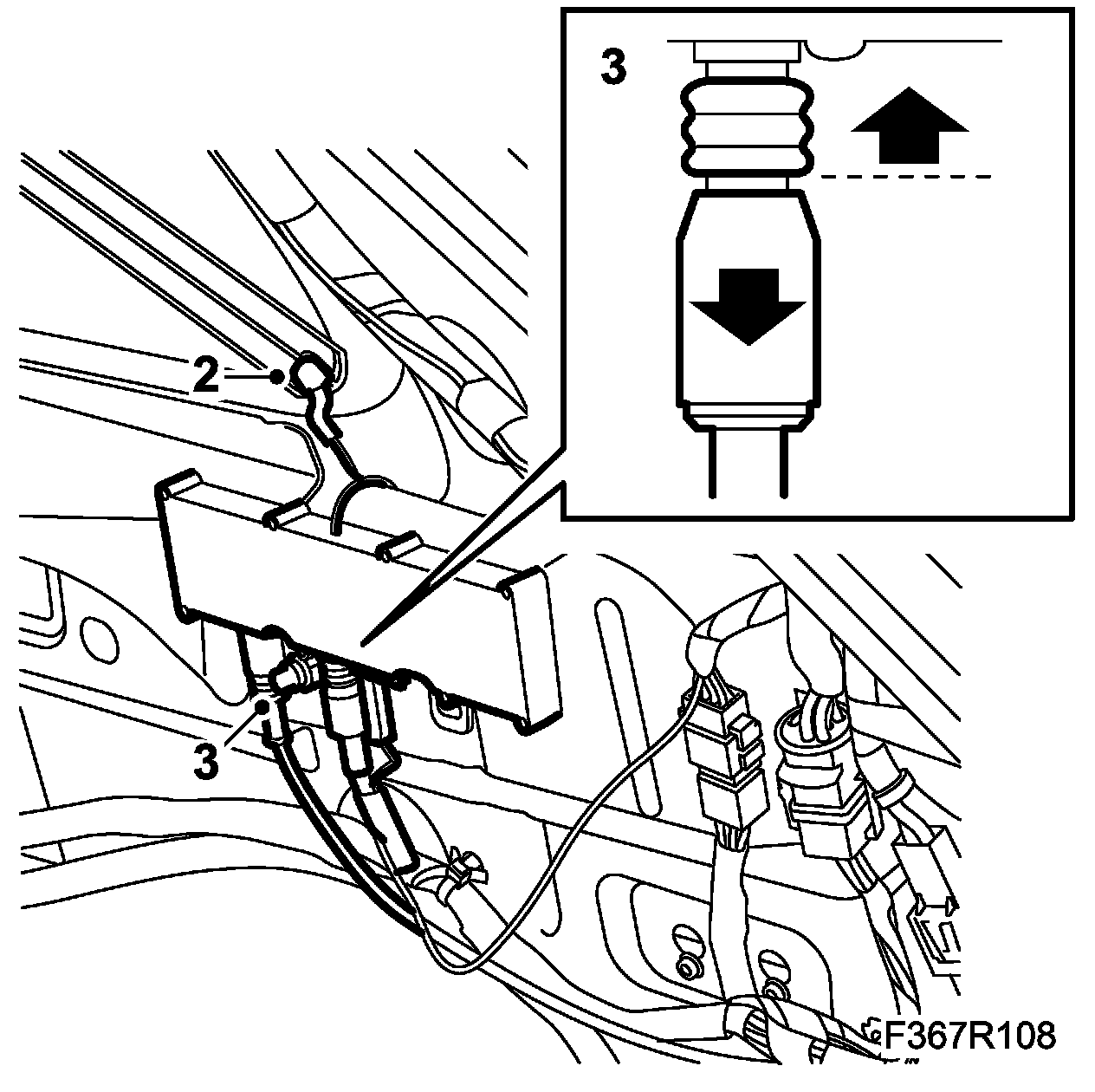

2. Unplug the connectors on the amplifier and rear window.

LH





RH

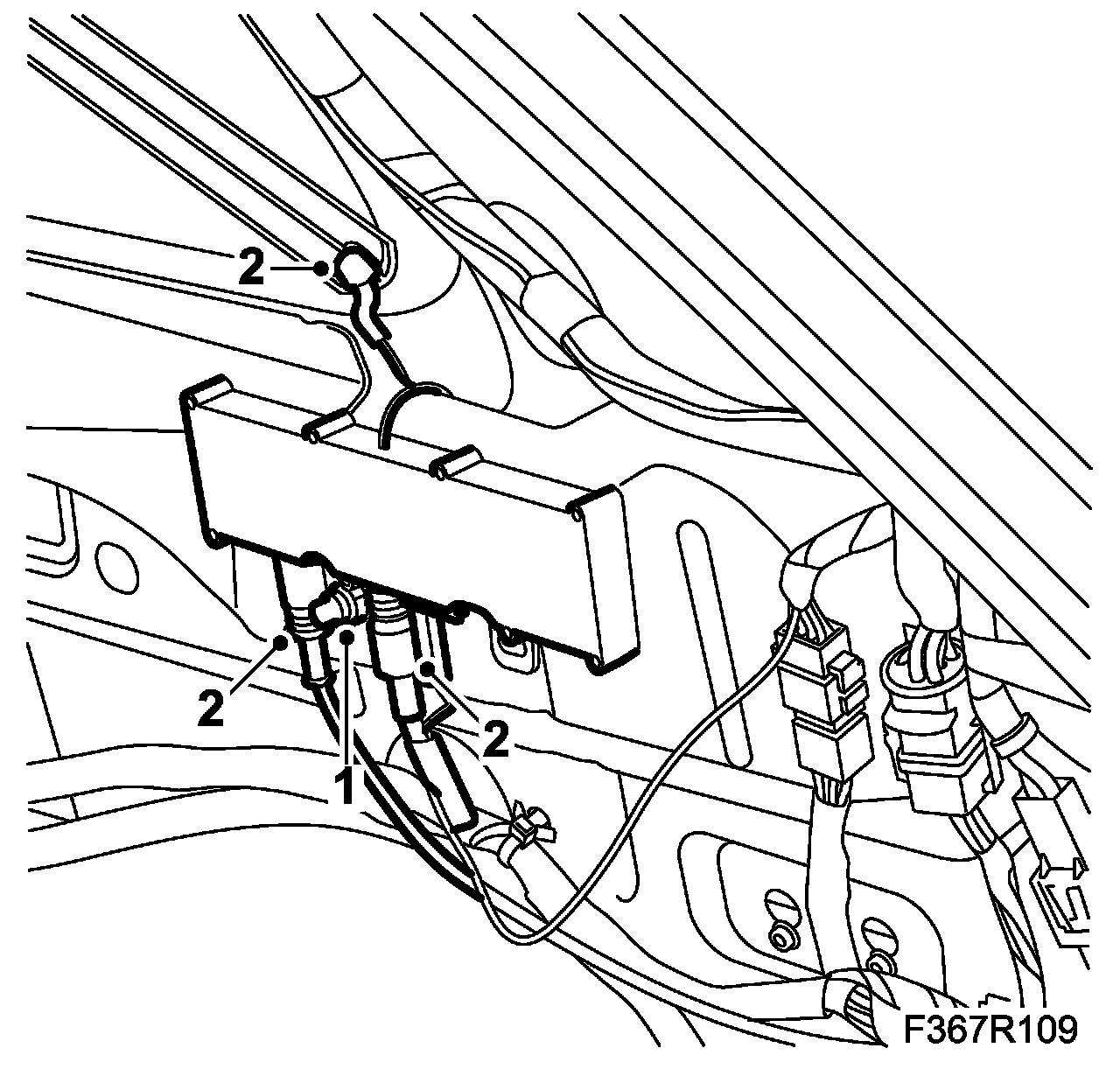

3. Remove the amplifier.

To fit

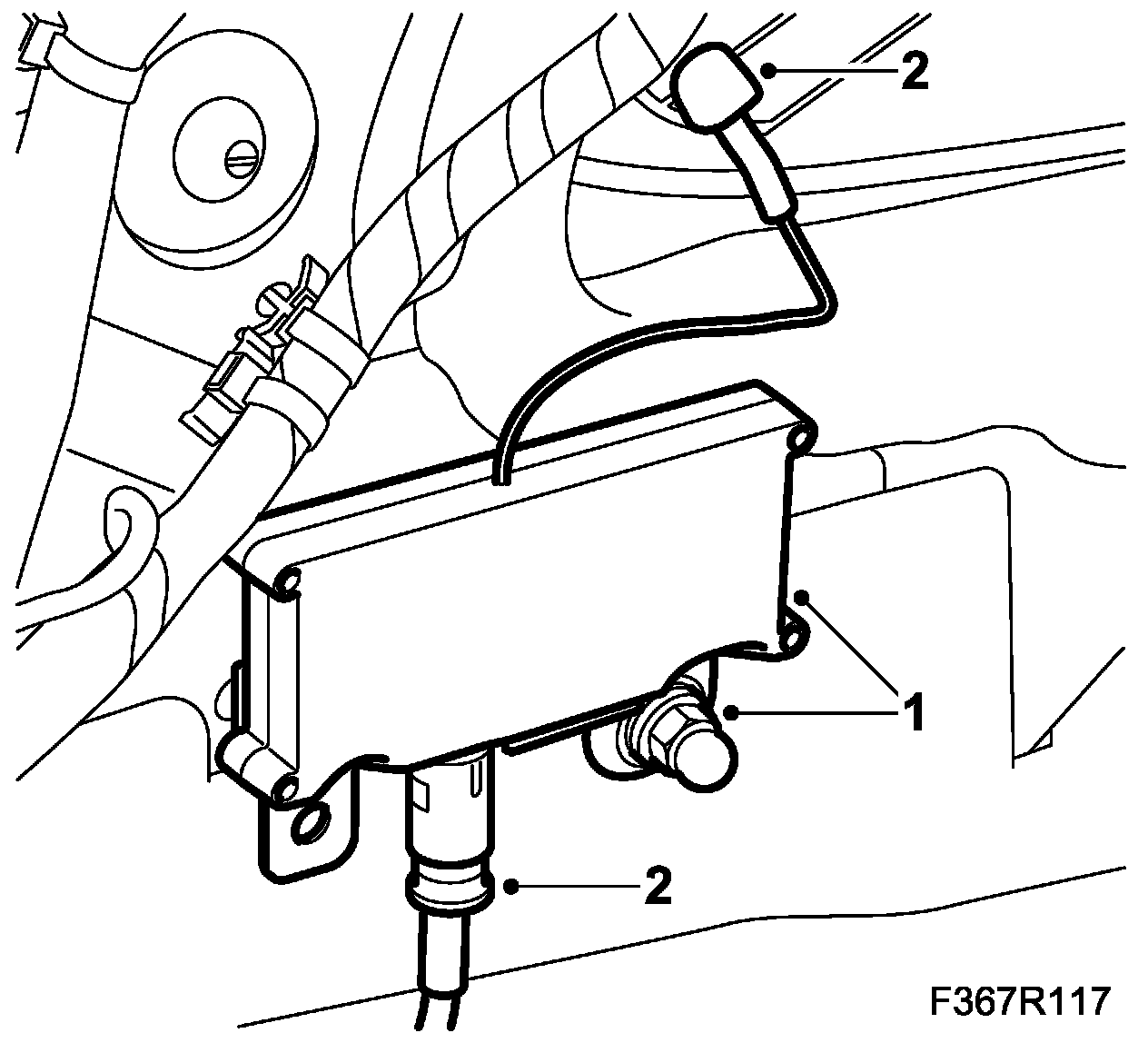

1. Fit the antenna amplifier

LH





RH





2. Plug the connectors into the amplifier and the rear window.
3. Fit the rear side trim, 5D
