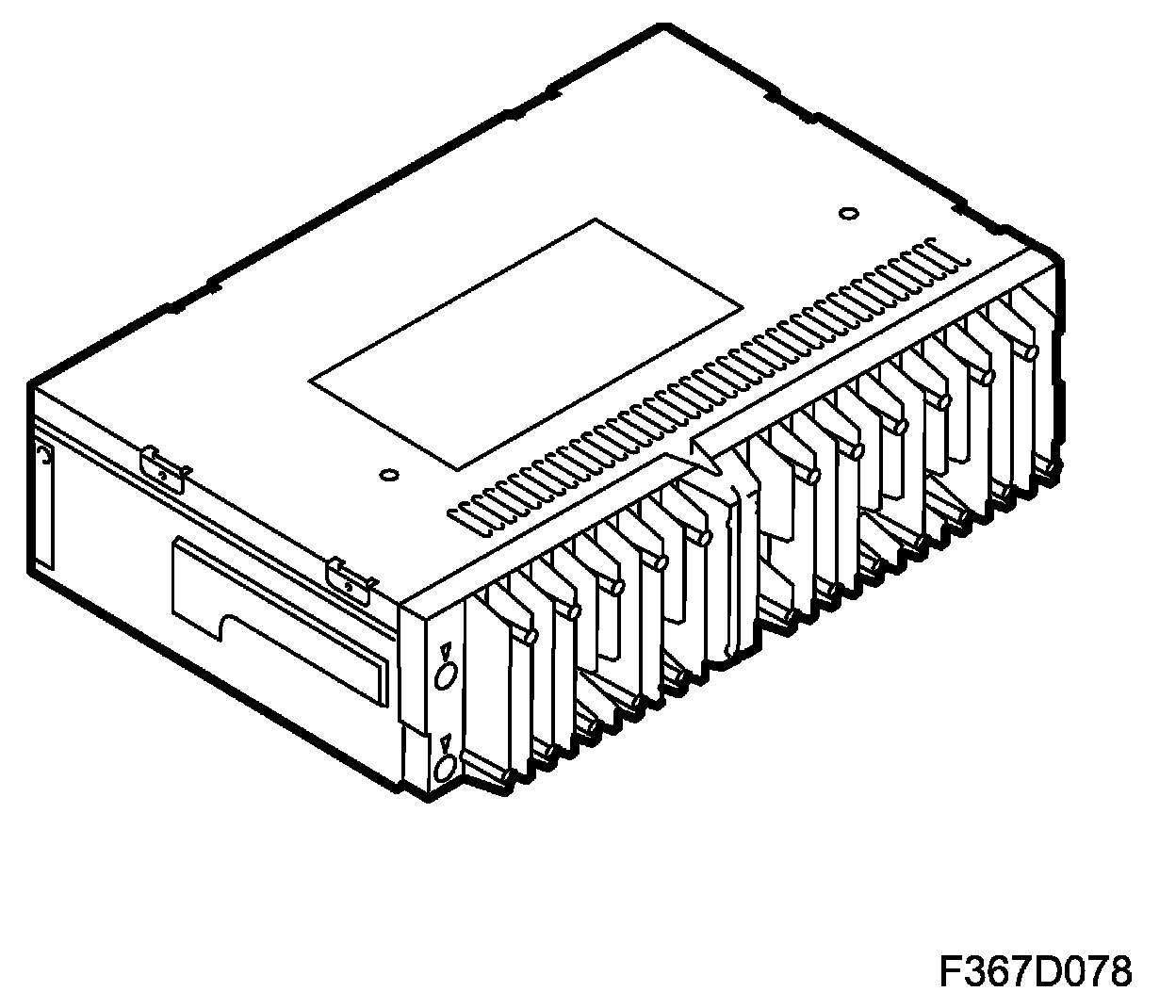

Amplifier (354)

Amplifier (354)

Location





Main
task Amplify and distribute sound to the speakers.

Type
Control module to supply output to the speaker.

Connection

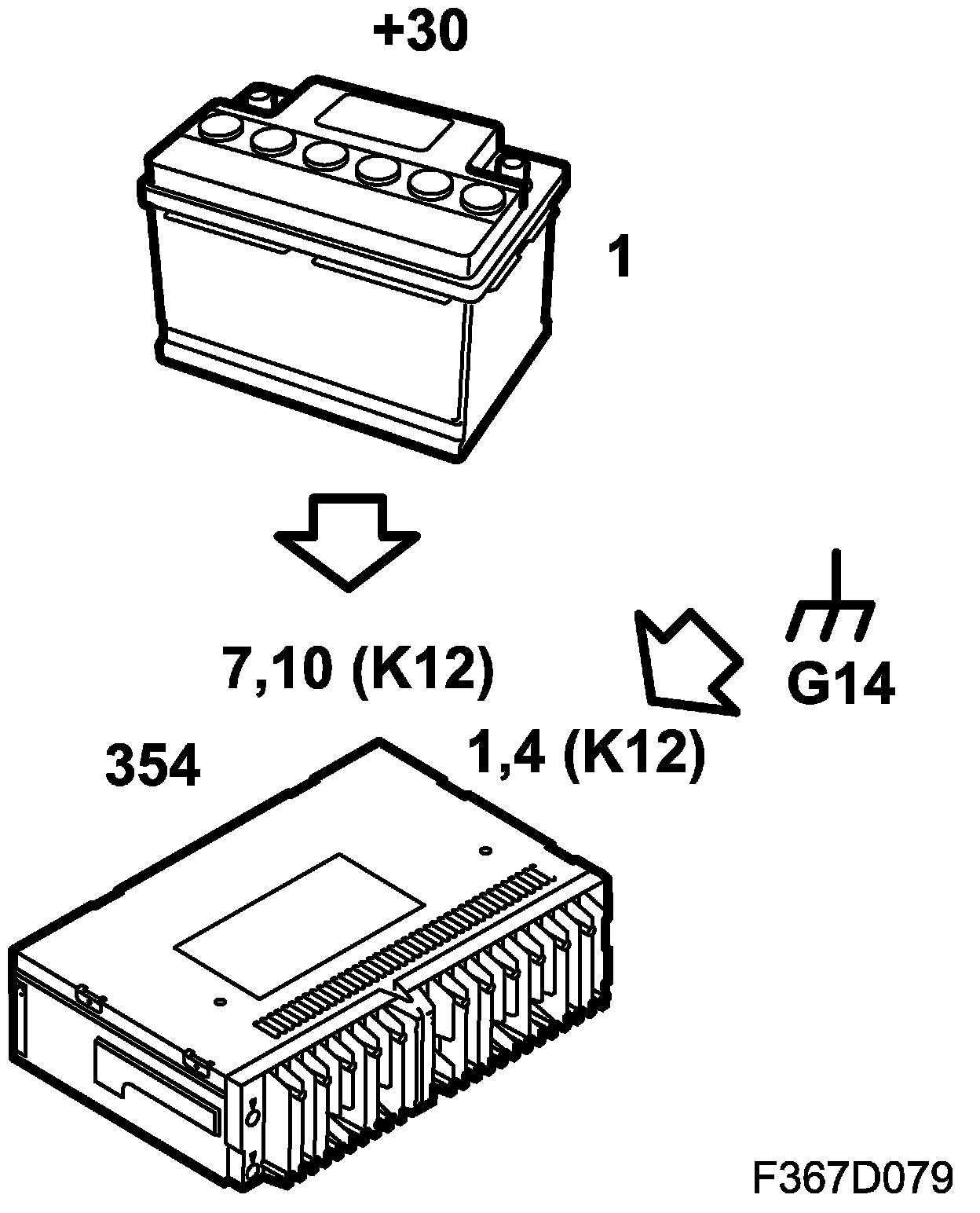

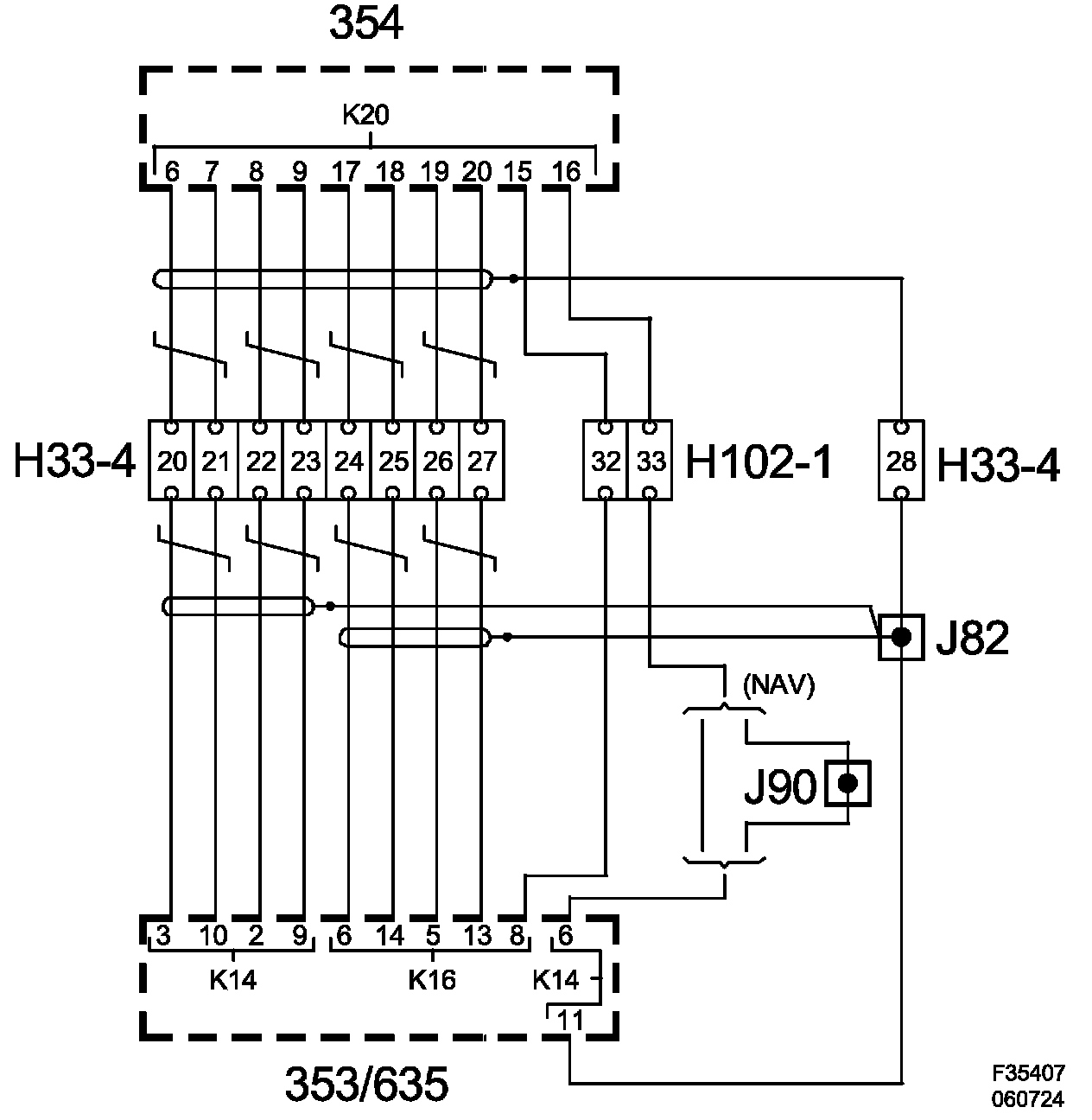

Wiring diagram, power supply
