Front Speaker Amplifier (354F), Bose (R) Sound System



Front Speaker Amplifier (354F), Bose (R) Sound System

Location





Main task
Amplify and distribute sound to the front door speakers and the center speaker on the dashboard.

Type
Control module to supply output to the speaker.

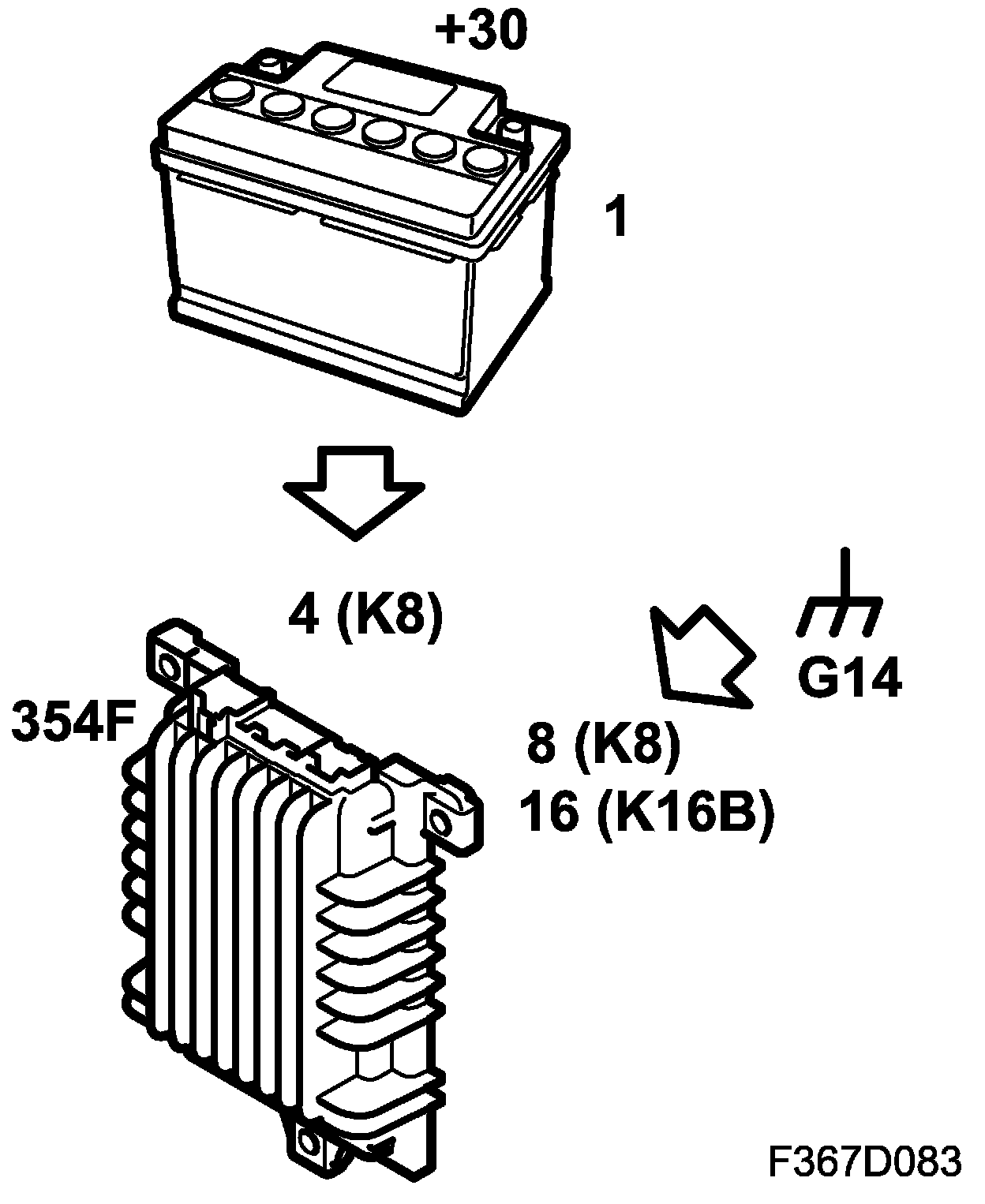

Connection

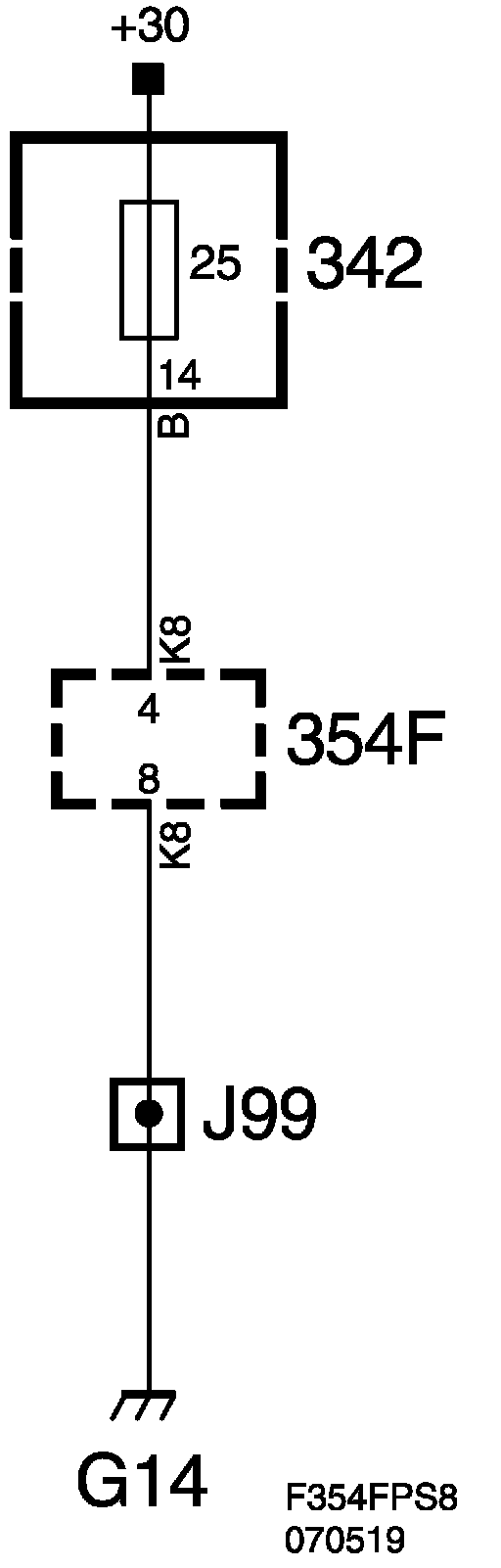

Wiring diagram, power supply
