Duct, Wiring Harness, Bumper, Front

Duct, Wiring Harness, Bumper, Front

To remove
1. Raise the car.
2. Remove the front bumper shell.
3. Remove the duct.

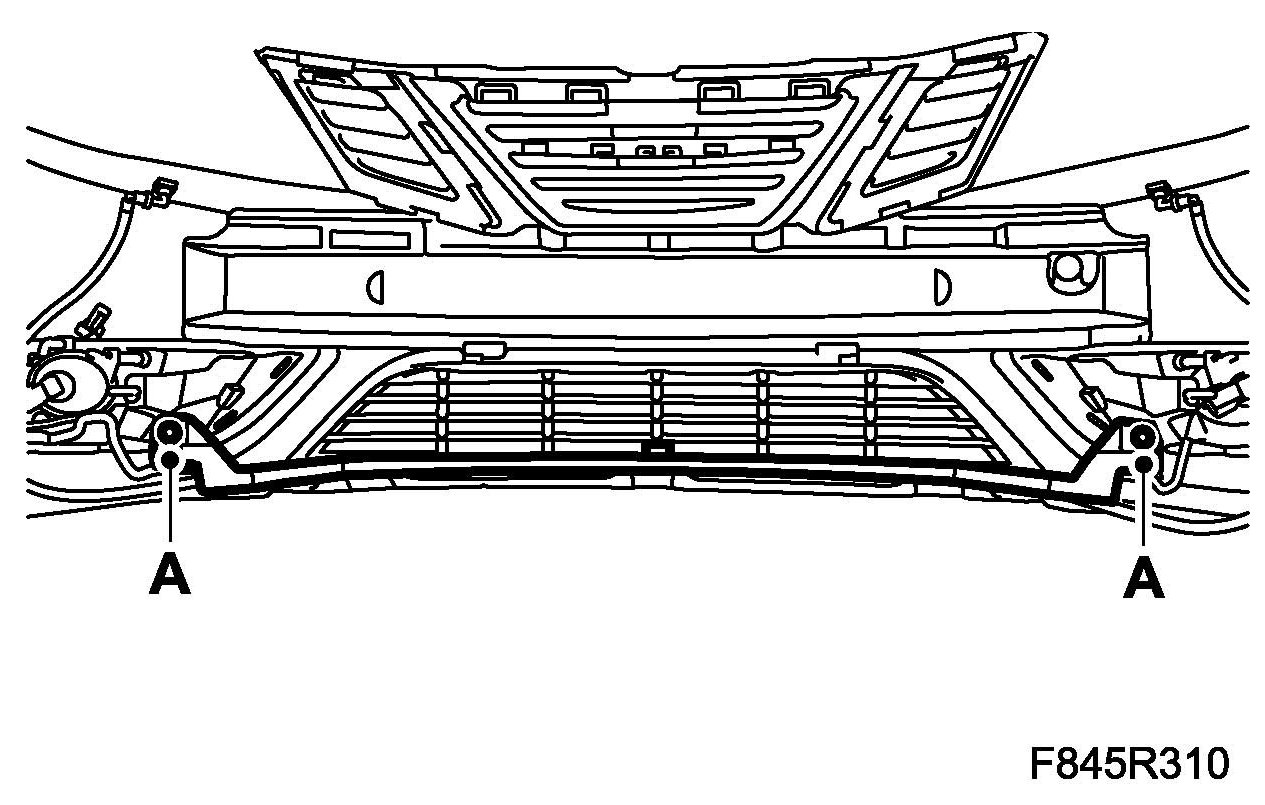

^ Remove the bolts (A).

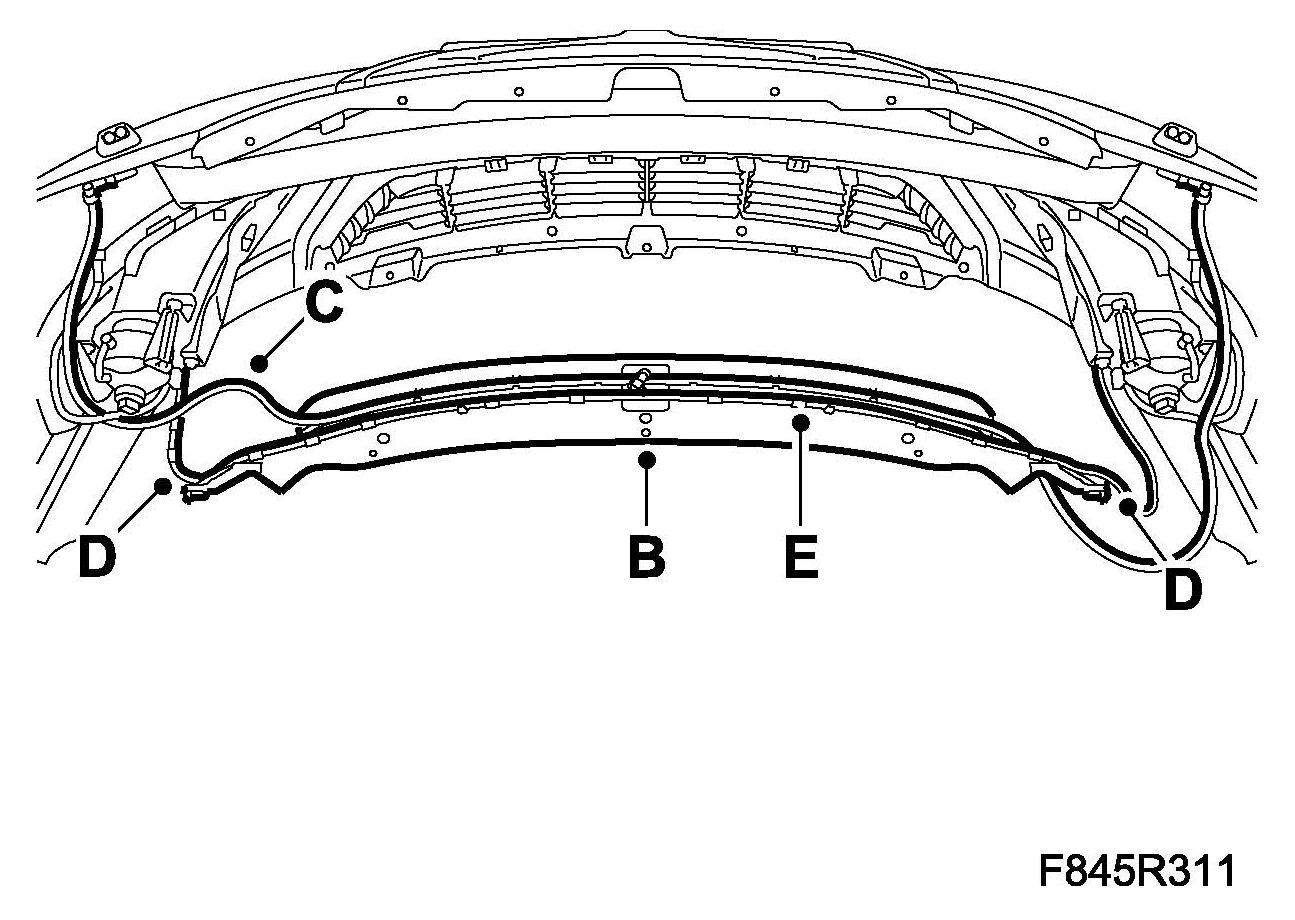

^ Lift up the duct (B).







^ Remove the washer hose (C).
^ Remove the clips (D) and the wiring harness (E).

To fit
1. Fit the duct.
^ Fit the wiring harness (E) in the rear duct.
^ Fit the clips (D).
^ Fit the washer hose (C) in the front duct.
^ Lift the duct (B) into position so that the locating lugs are positioned correctly.
^ Fit the bolts (A).







2. Fit the front bumper shell.
3. Lower the car.
