Fuel Door Release Actuator: Locations

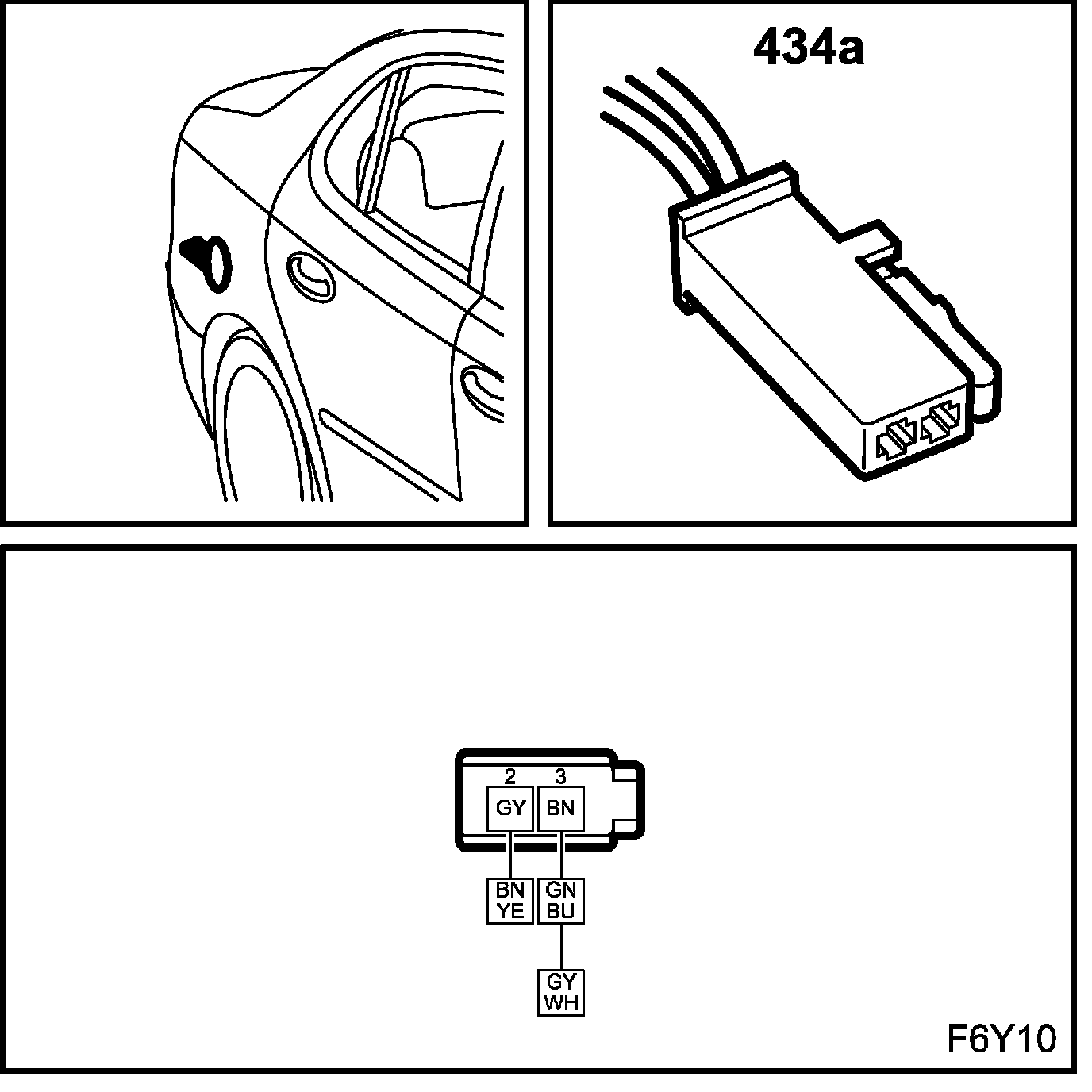

Location: by the filler flap in luggage compartment


Filler Flap Solenoid, Central Locking System (434a):
