Fuel Door: Service and Repair

Fuel Filler Flap

Removing

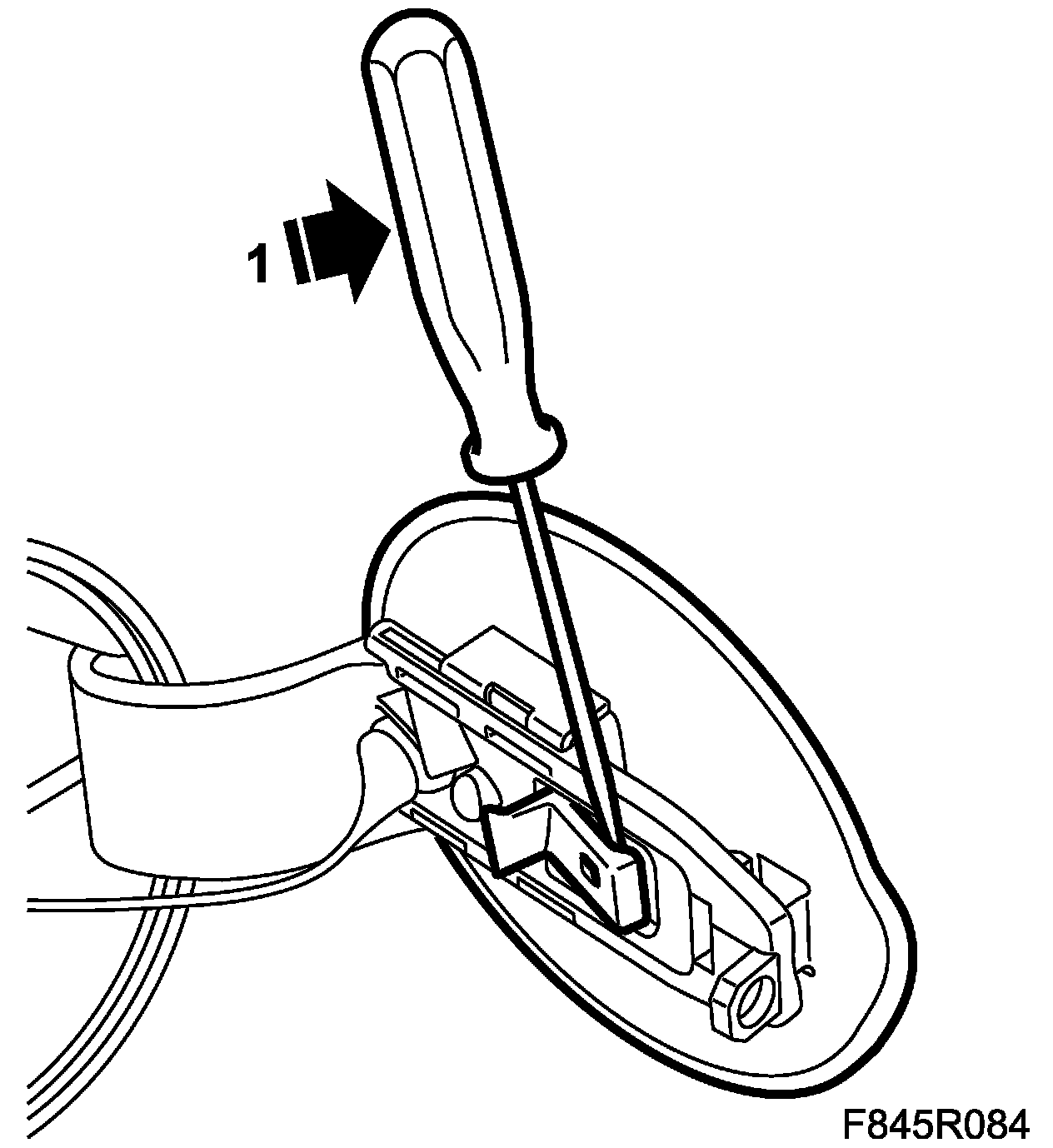

1. Lift up the locking catch using a screwdriver.





2. Pull out the filler flap.

Fitting

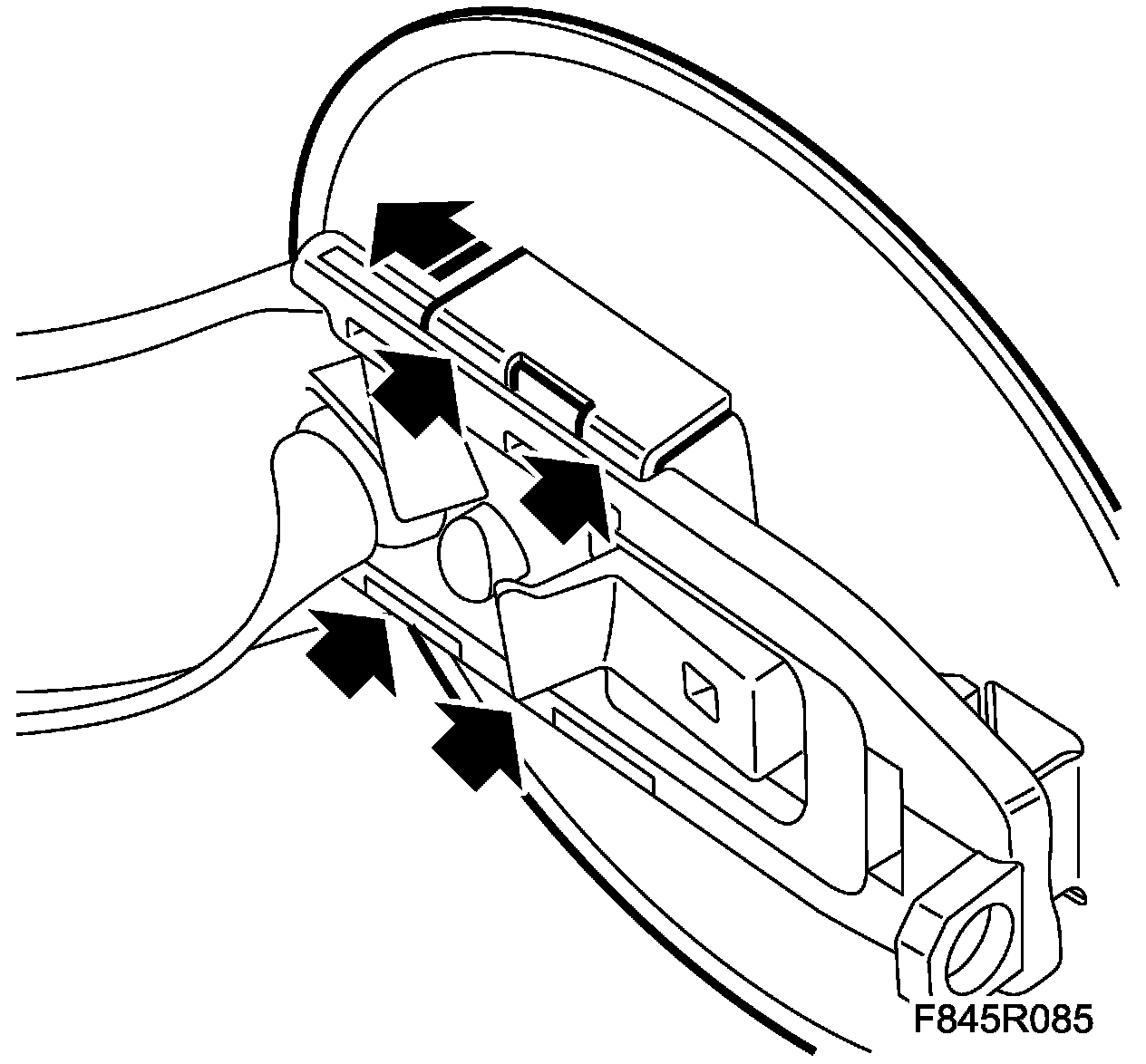

1. Insert the flap's butts into the mounting.





2. Push in the flap's so that the hooks enter the slot and the locking catch locks.
