Heated Door Mirror, FR

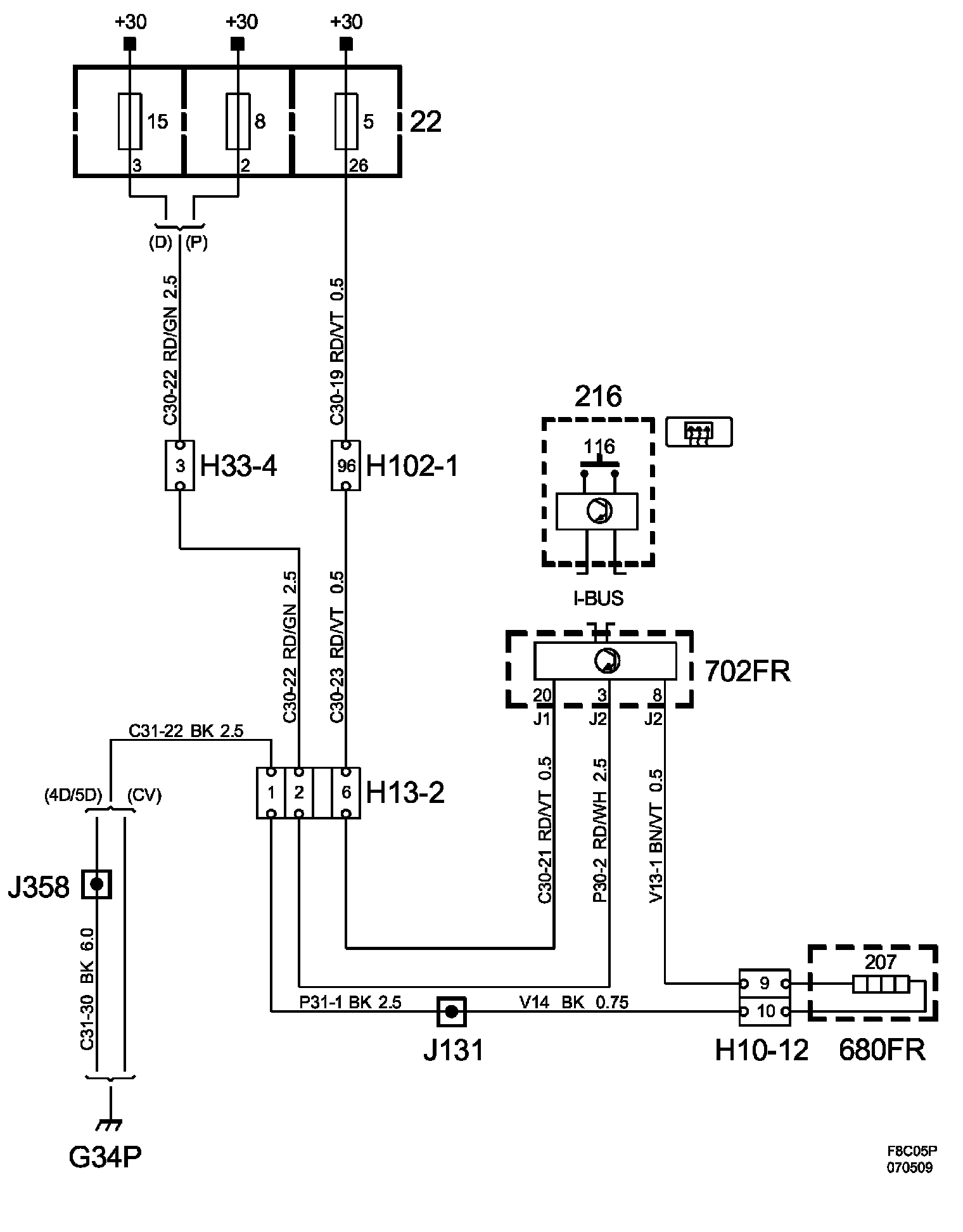

Heated Door Mirror, FR:

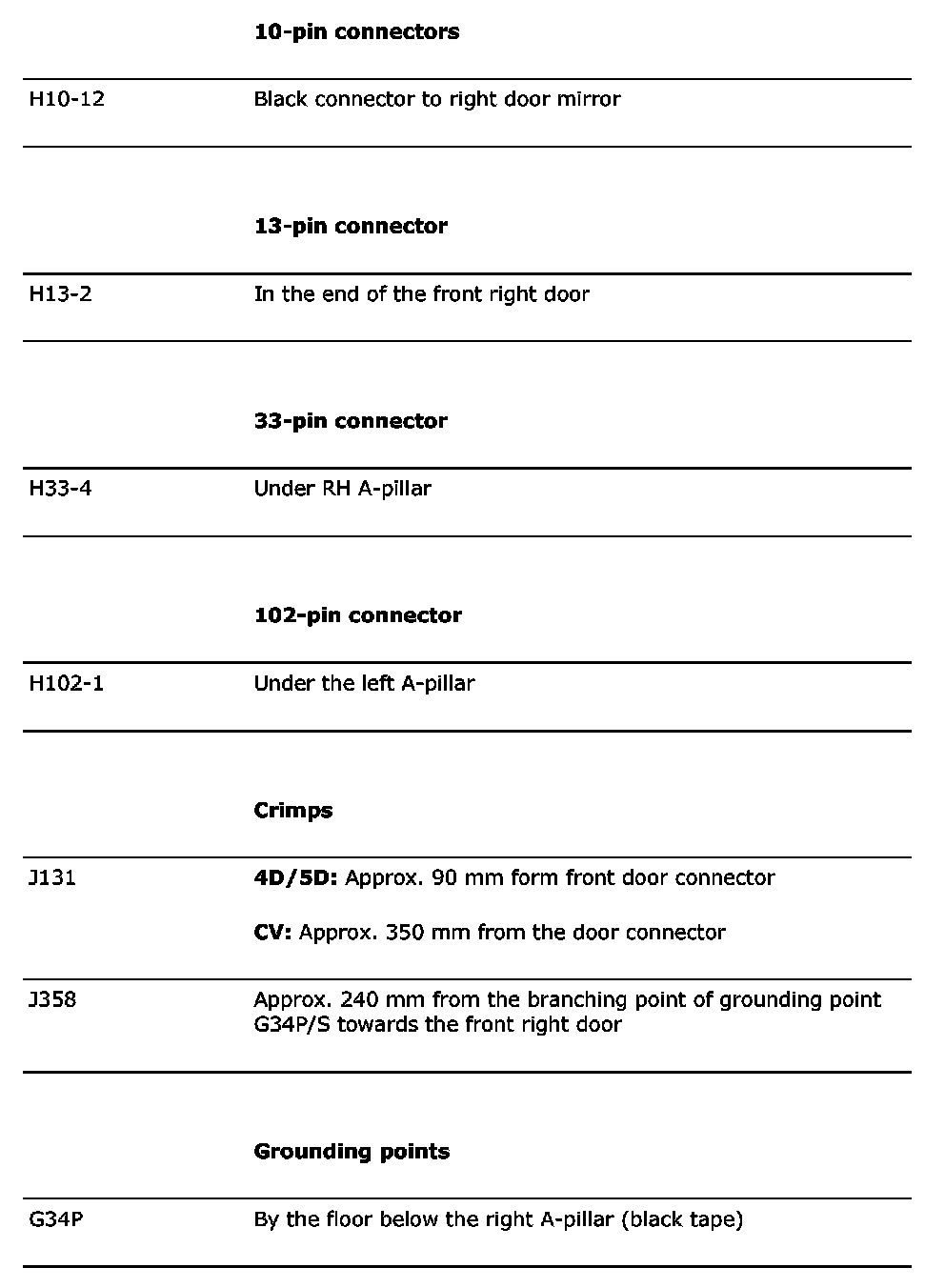

List of Components (Part 1):



List of Components (Part 2):
