Electrically Adjustable Seat 4D/5D LH
Electrically Adjustable Seat 4D/5D LH
Electrically Adjustable Seat 4D/5D LH
Electrically Adjustable Seat 4D/5D LH:

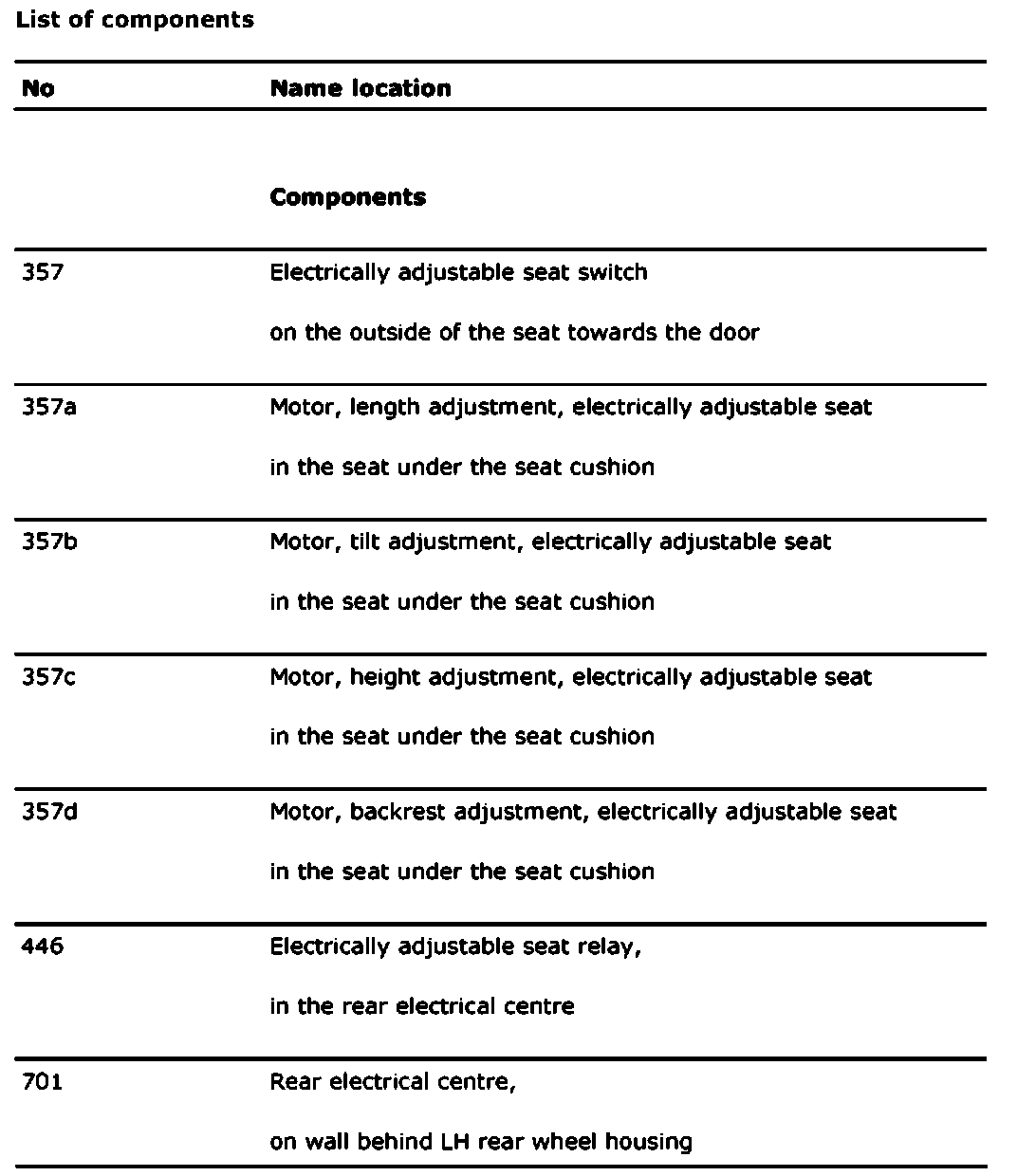

List Of Components (Part 1):

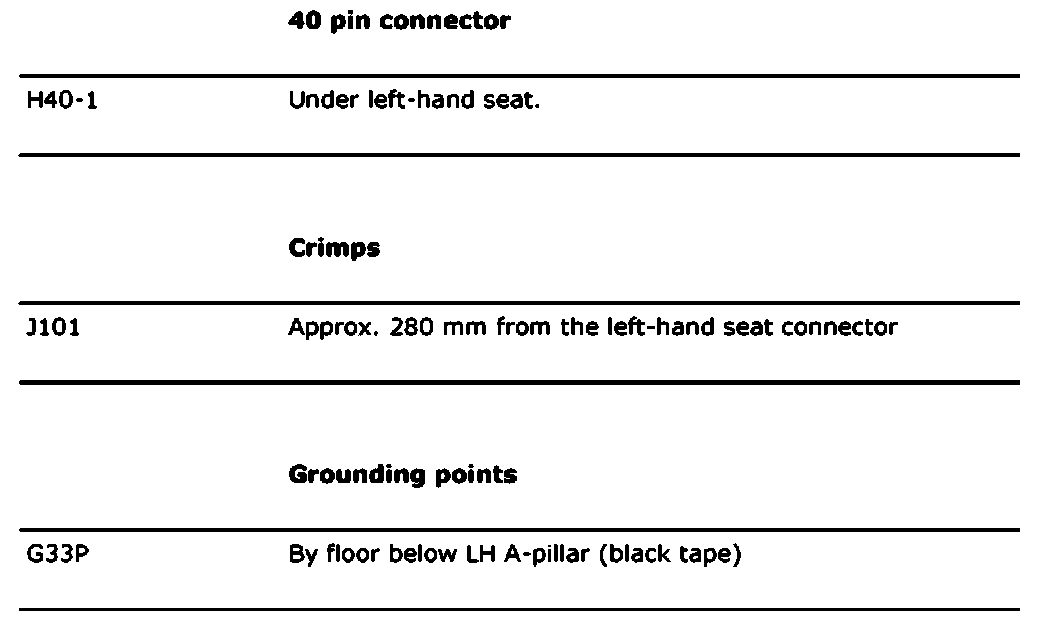

List Of Components (Part 2):
