Diesel Data: Automotive Repair
Home >> Saab >> 2008 >> 9-3 (9440) L4-2.0L Turbo >> Repair and Diagnosis >> Body and Frame >> Seats >> Locations >> Splice Locations >> Crimp J162, Seat Harness

Crimp J162, Seat Harness



Location: Approx. 65 mm from branching point motor 375b towards seat switch

Electrically adjustable seat with memory CV

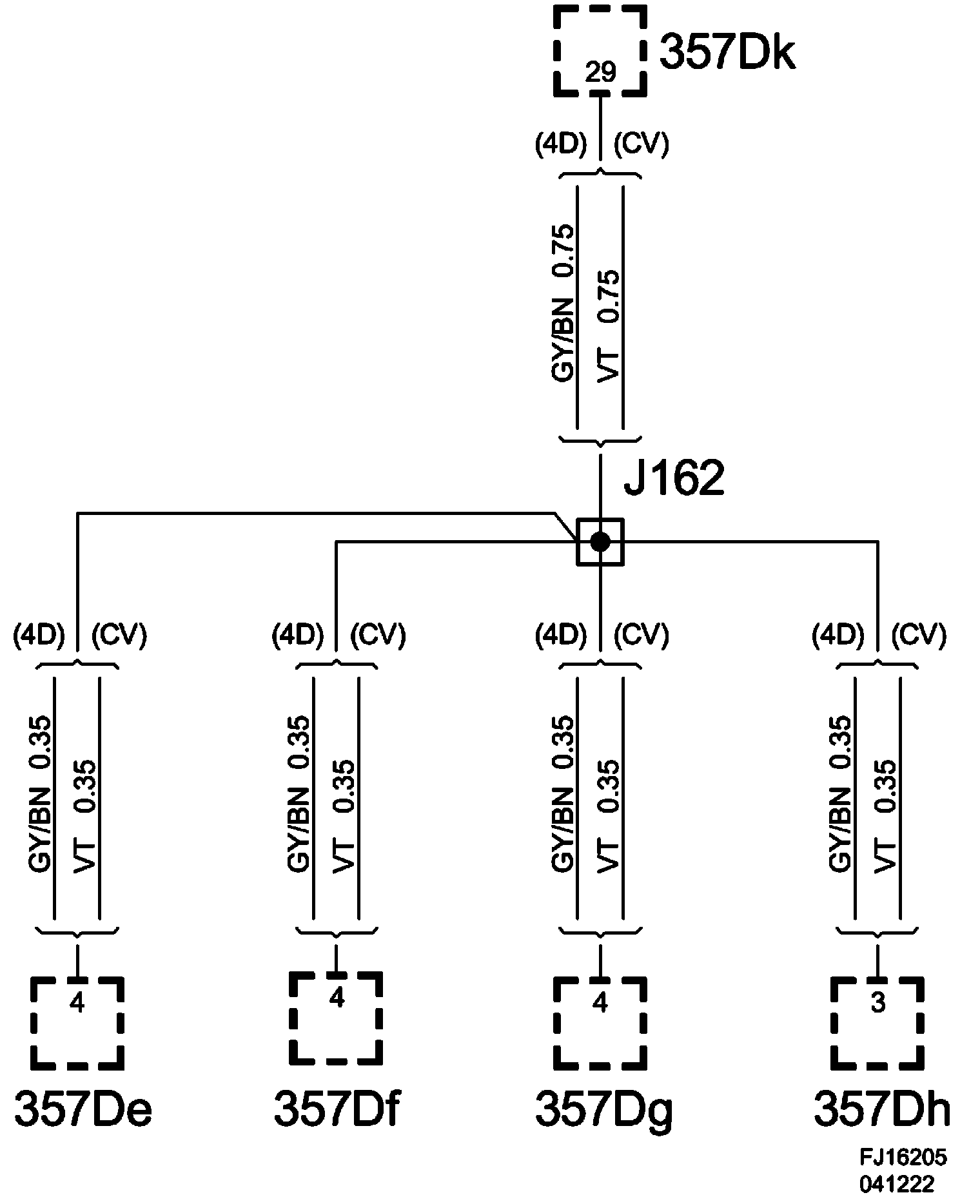

Crimp J162, Seat Harness - Electrically Adjustable Seat With Memory Function CV:

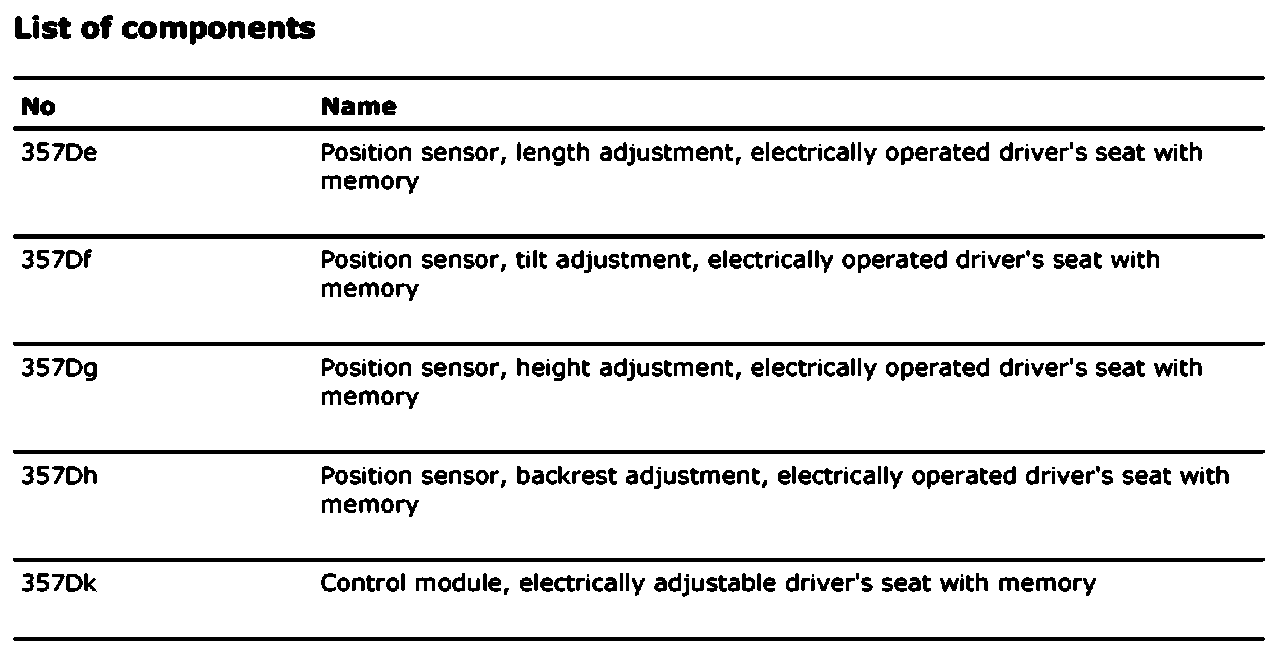

List Of Components:
