Splice Locations
>>

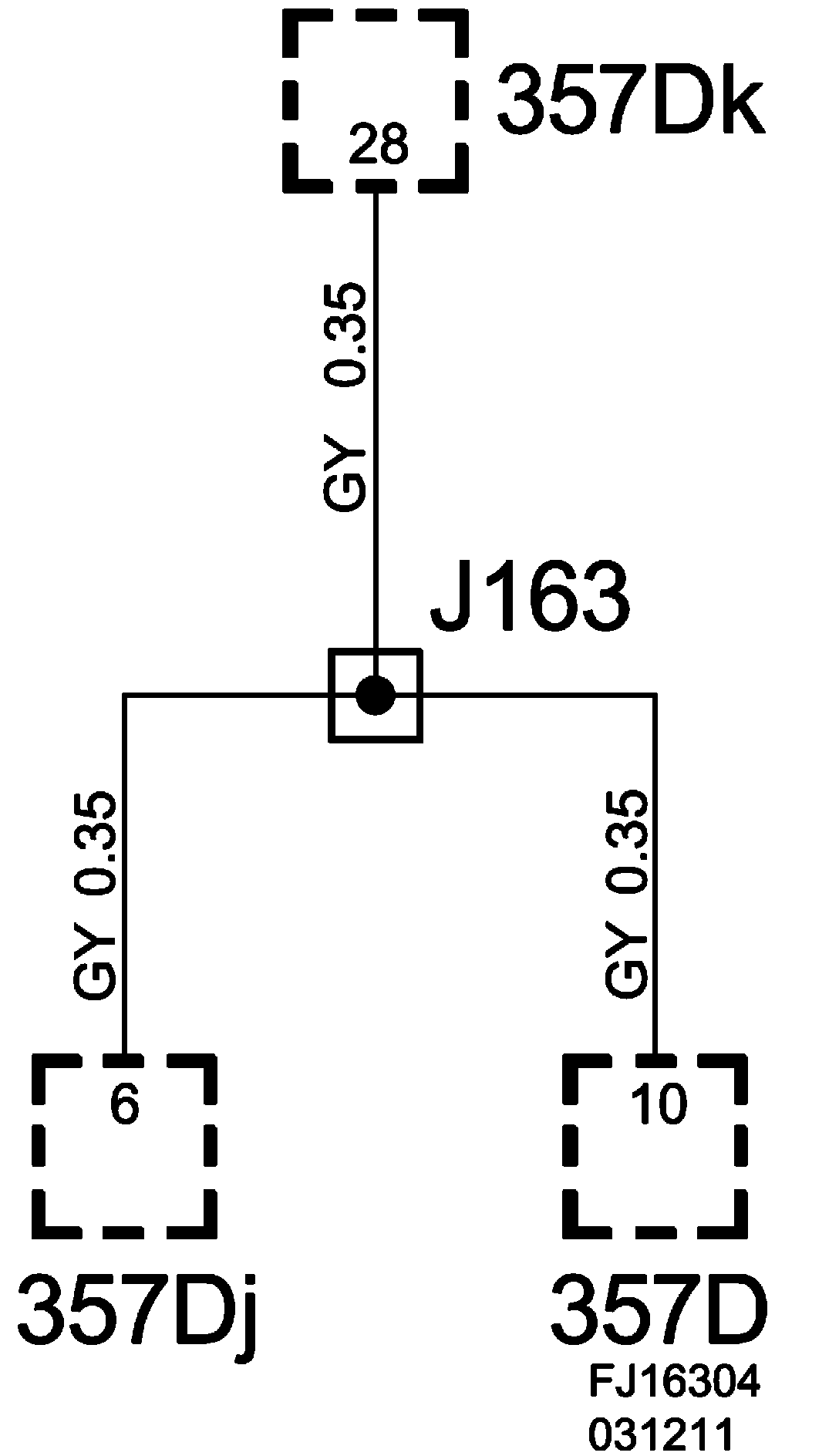

Crimp J163, Seat Harness
Crimp J163, Seat Harness
Location:
Approx. 35 mm from branching point motor 375b towards seat switch
Crimp J163, Seat Harness:

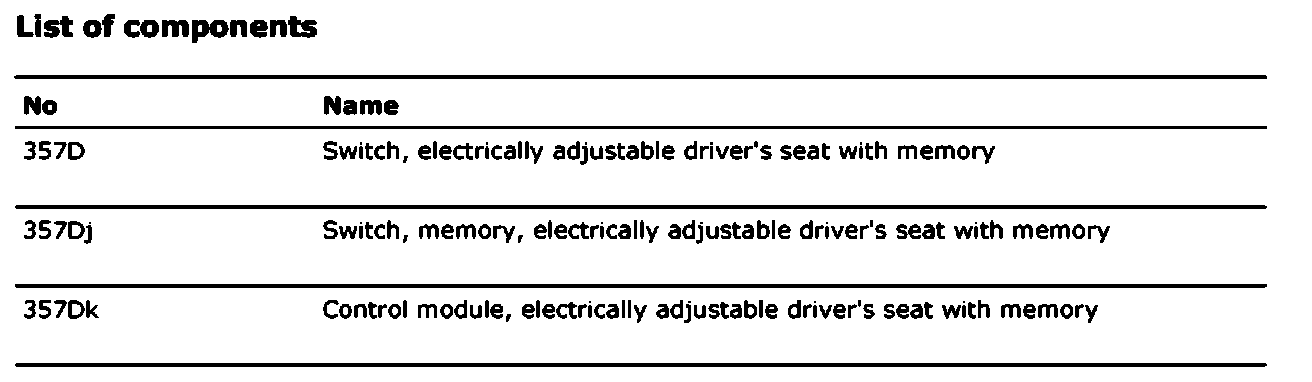

List Of Components:
