Crimp J165, Seat Harness



Location

LH: Approx. 30 mm from branching point control module towards seat switch

RH: Approx. 30 mm from branching point control module towards switch unit

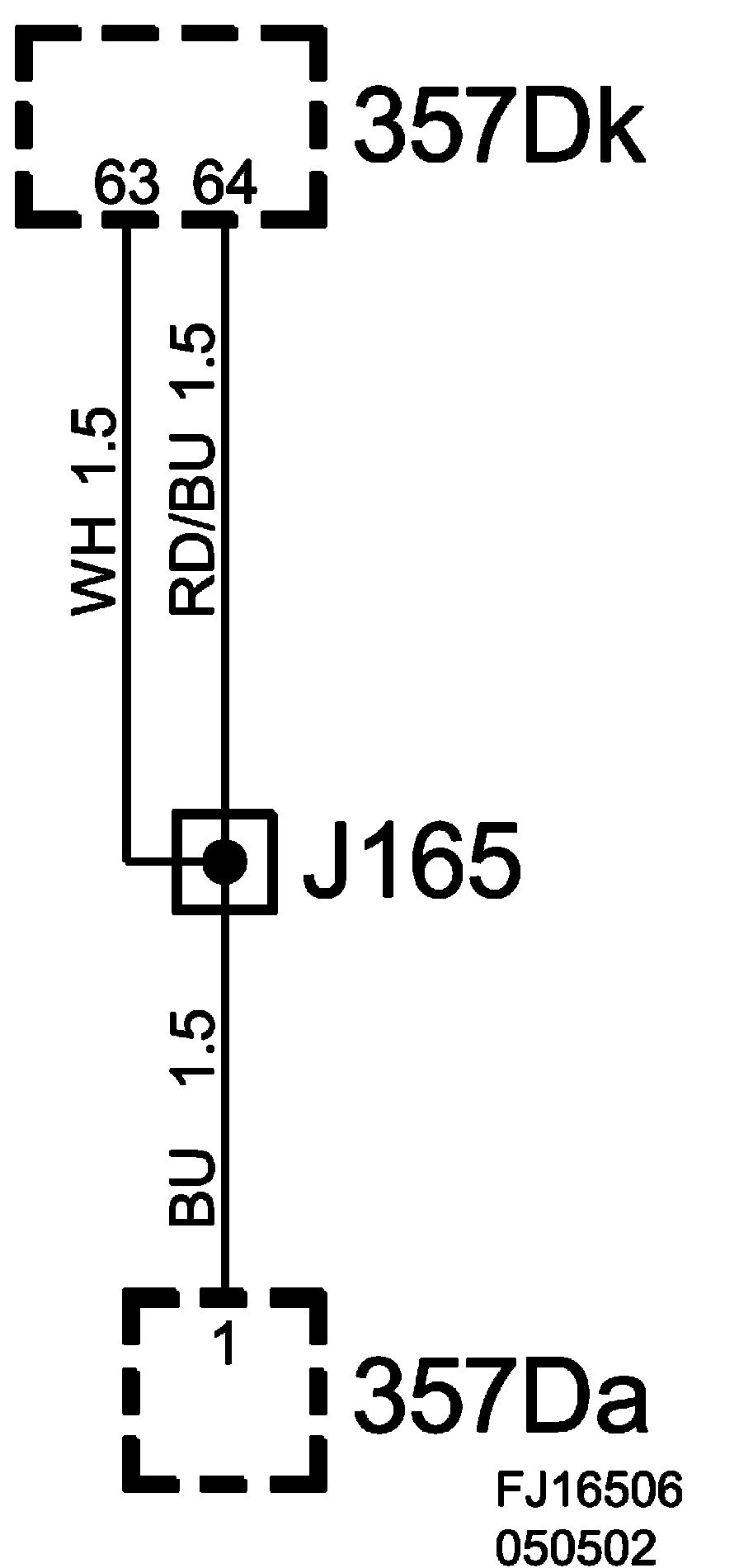

Crimp J165, Seat Harness:

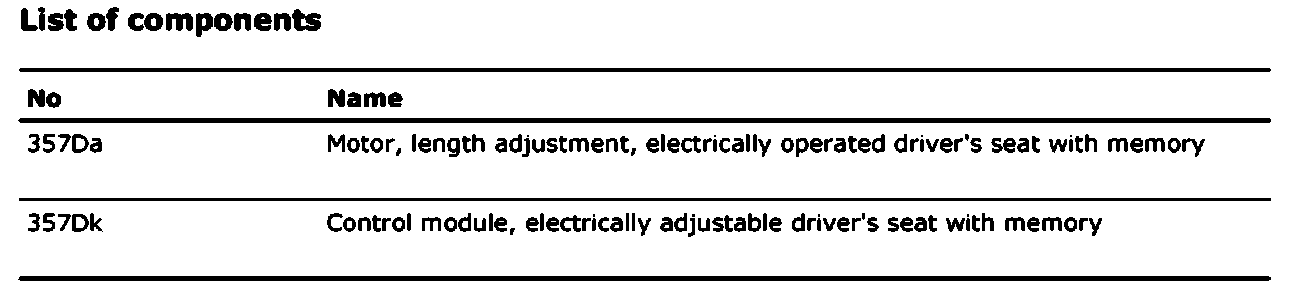

List Of Components:
