Yaw Rate Sensor: Description and Operation

Yaw Sensor (658)

On cars equipped with ESP





Main use

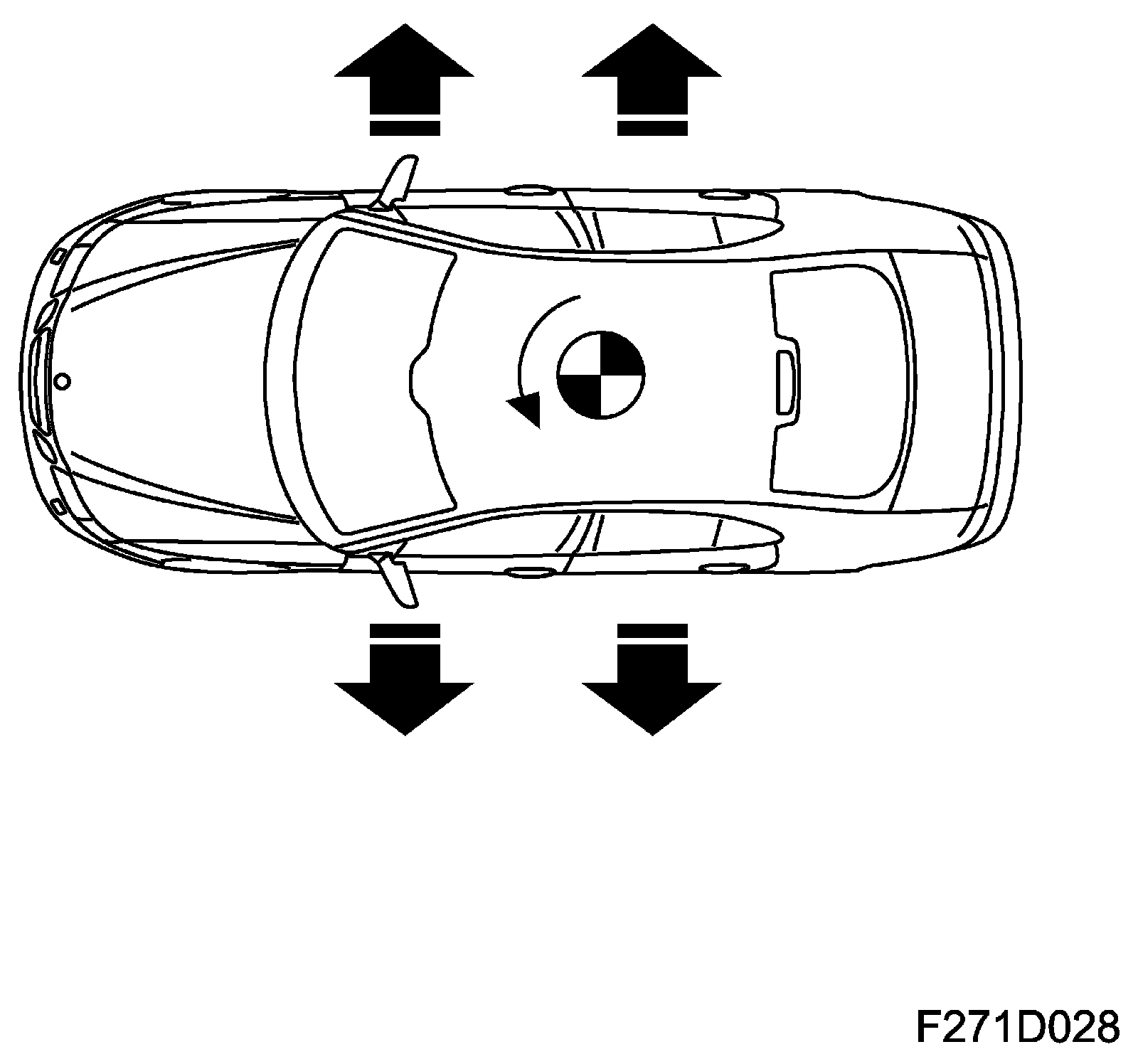

The sensor is used to measure the physical forces of the yaw rate acceleration and lateral acceleration of the vehicle. On cars with B284 engine and manual gearbox there is an additional sensor element that measures longitudinal acceleration. The incline of the hill can be detected with this signal.

Type





The sensor comprises a combined micro-mechanical yaw rate sensor and lateral acceleration sensor.

A hermetically sealed metal housing protects the components from being affected by its surroundings.

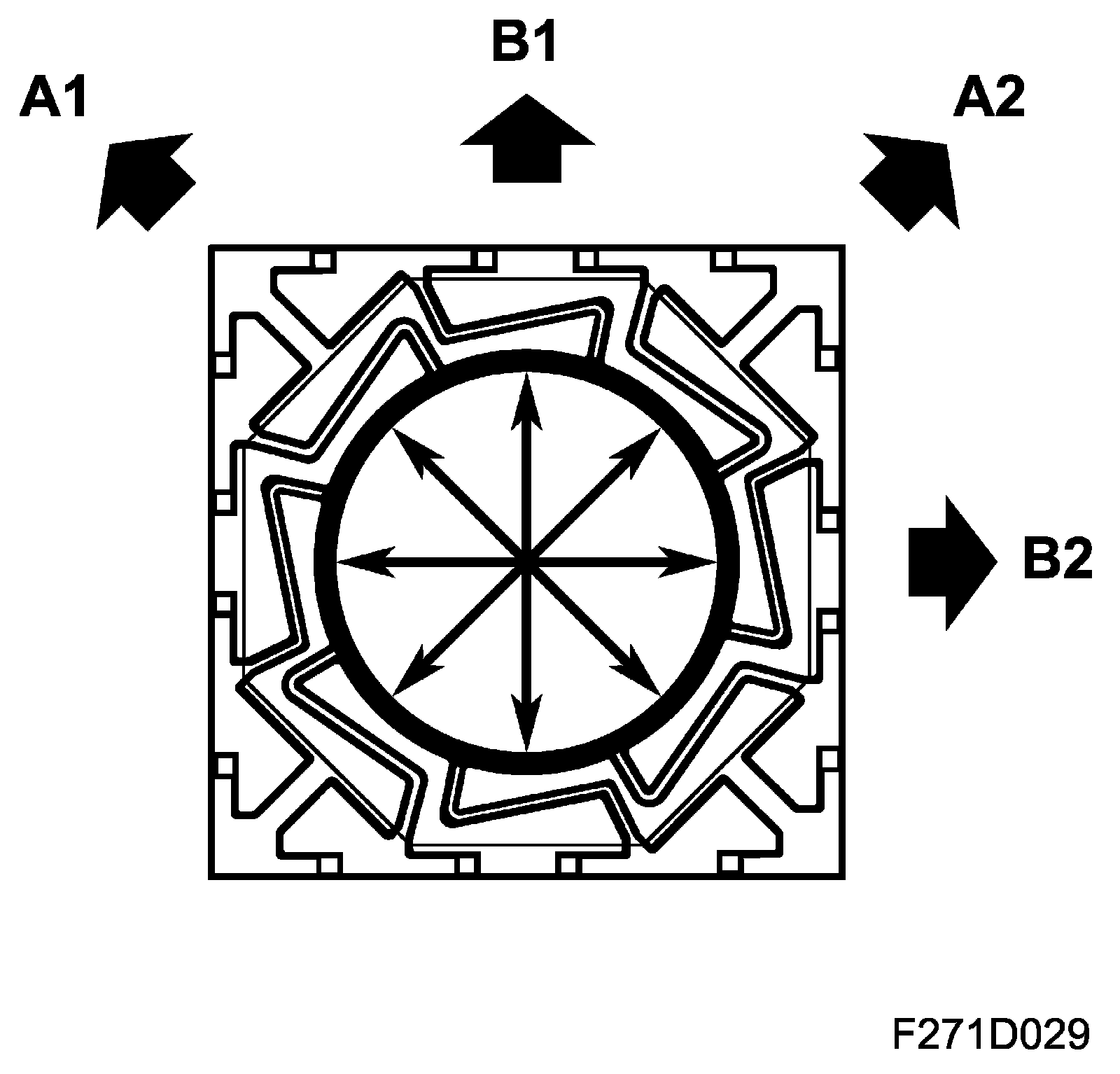

The center of the combined micro-mechanical sensor consists of a silicone ring gyro containing three layers of silicone with intermediate isolation of thin glass, eight radial spokes which detect rotation movement and a capacitive element which detects lateral acceleration movements.

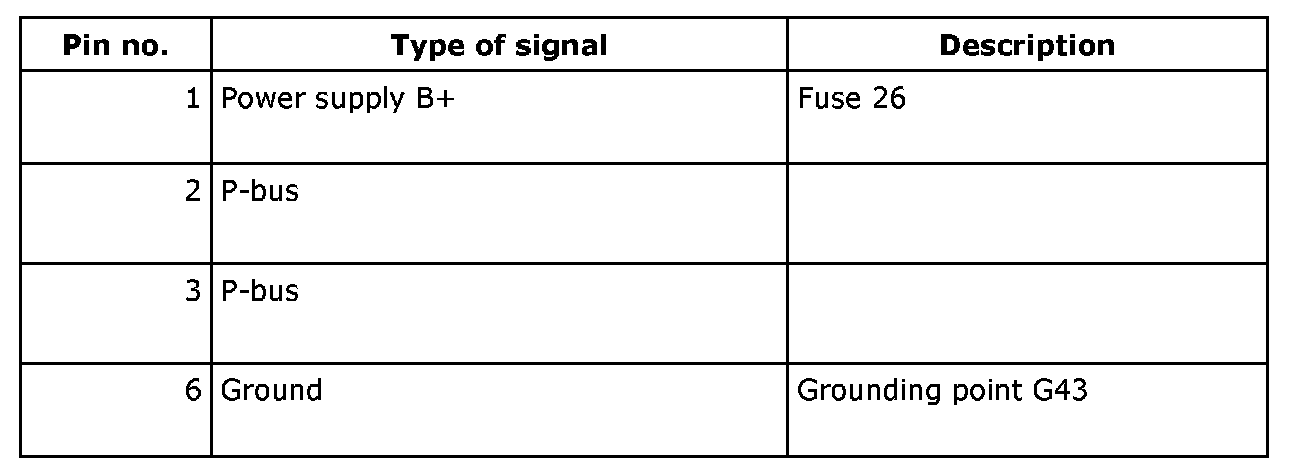

Connection (not for control module)

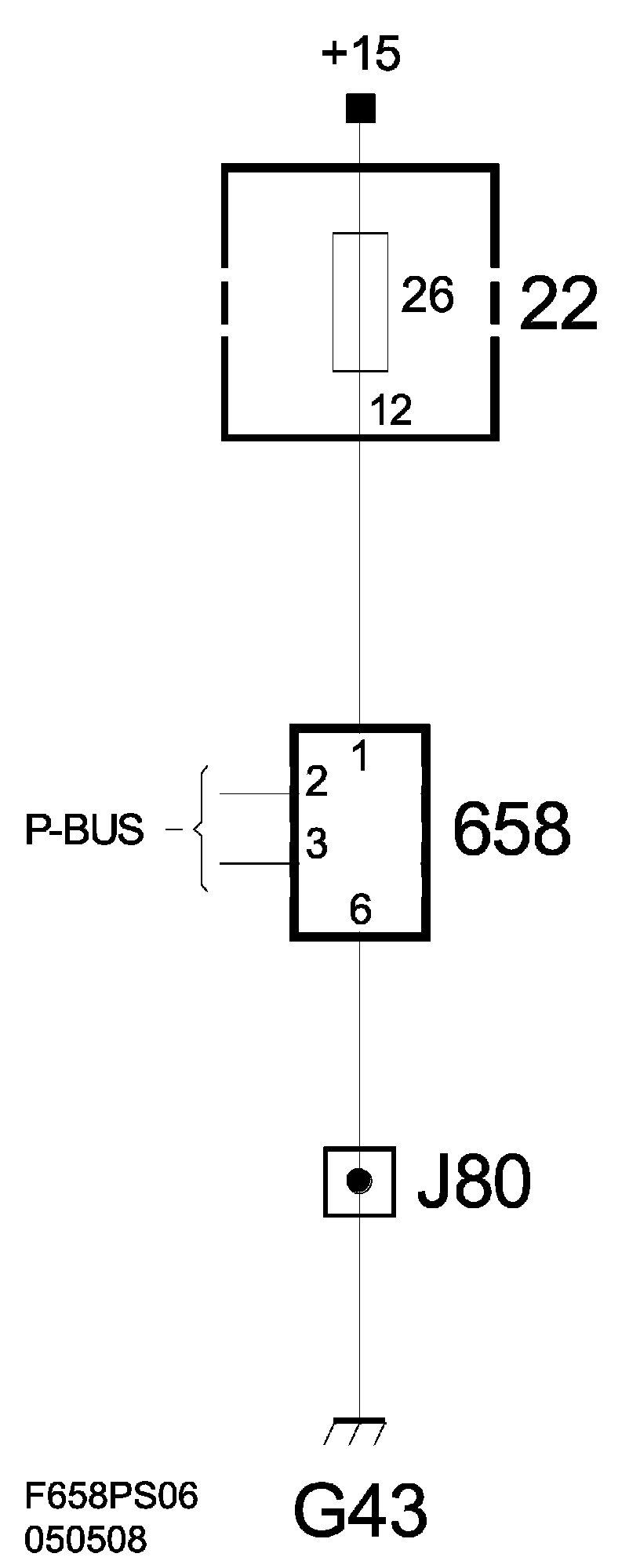

Wiring Diagram

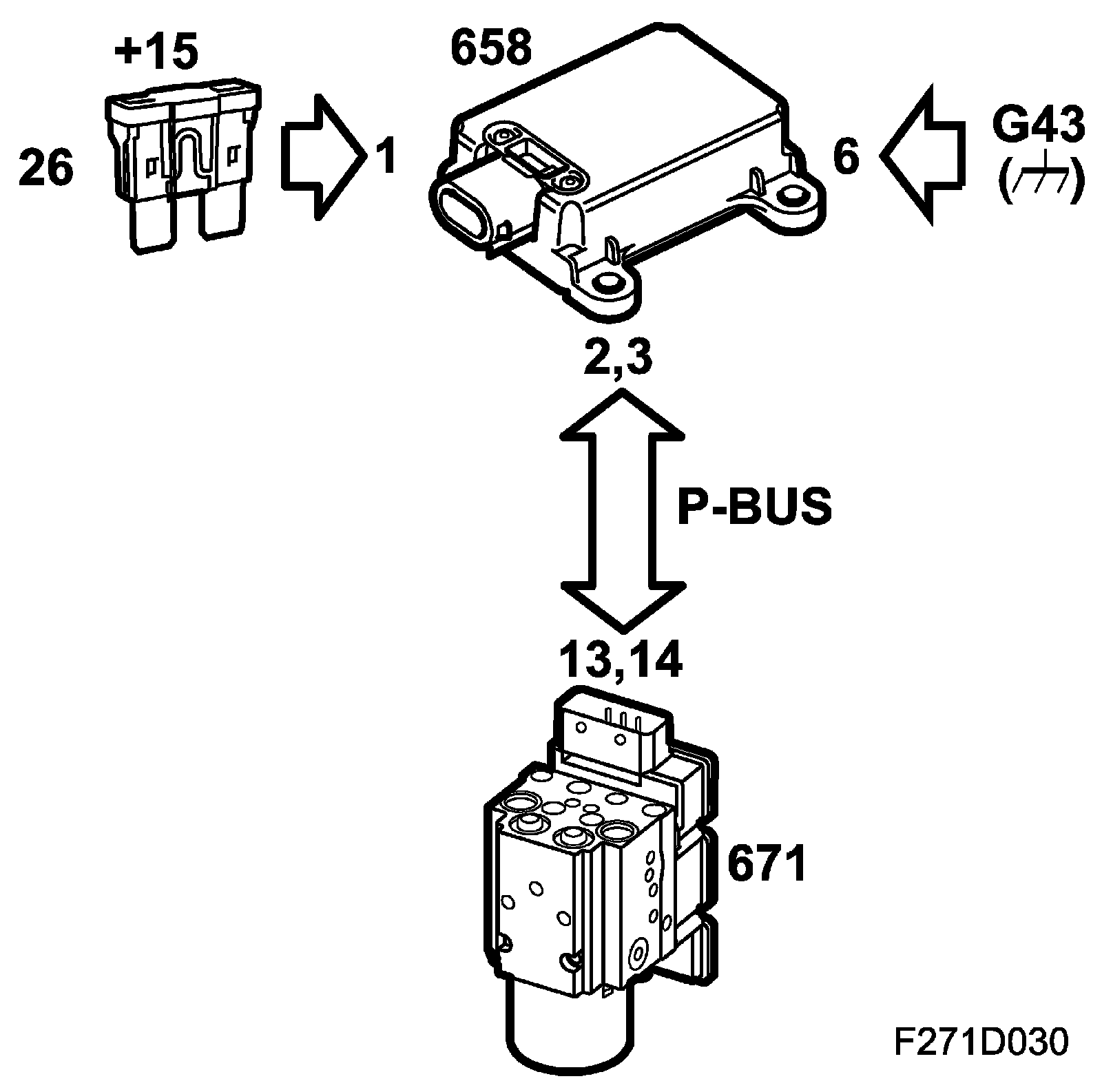

^ Overview





^ +30 and ground
