Clockspring Assembly / Spiral Cable, Air Bag
>>
Steering Wheel Contact Unit, Airbag (336) - From Steering Column Loom
Steering Wheel Contact Unit, Airbag (336) - From Steering Column Loom

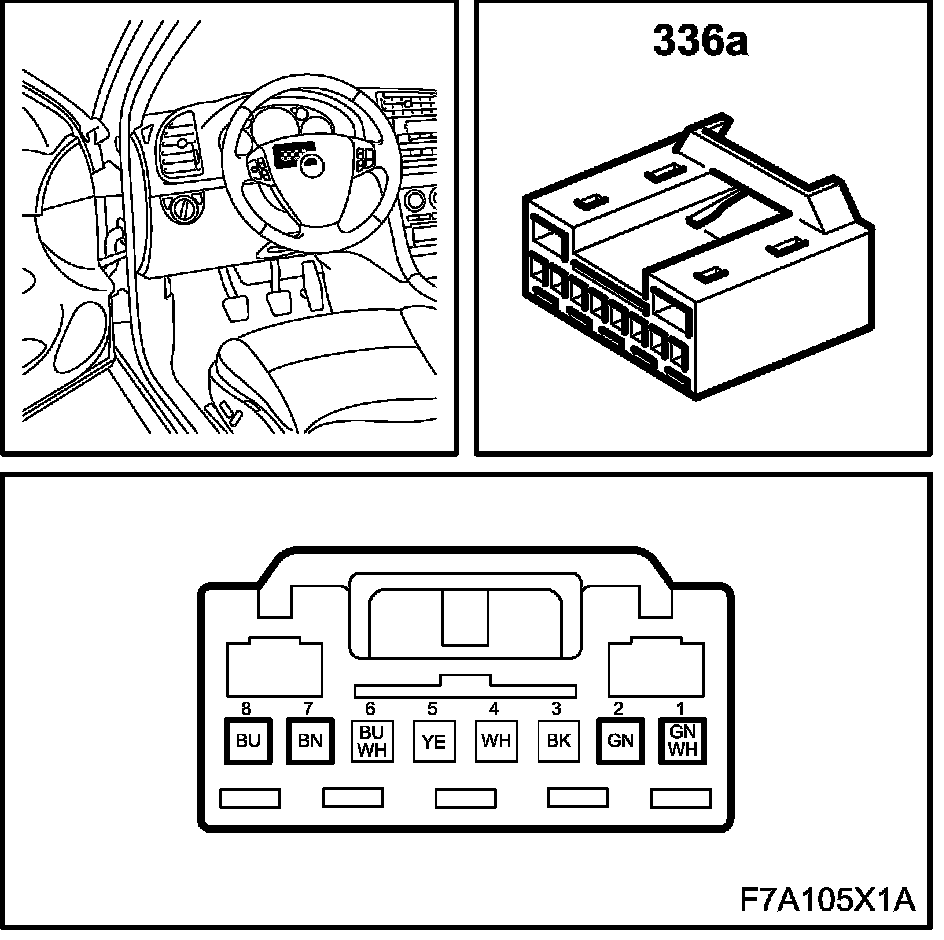

Steering Wheel Contact Unit, Airbag (336a)
Location: Integrated in steering wheel assembly unit. Connection from the steering column loom.
