Saab
>>
2008
>>
9-3 (9440) L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

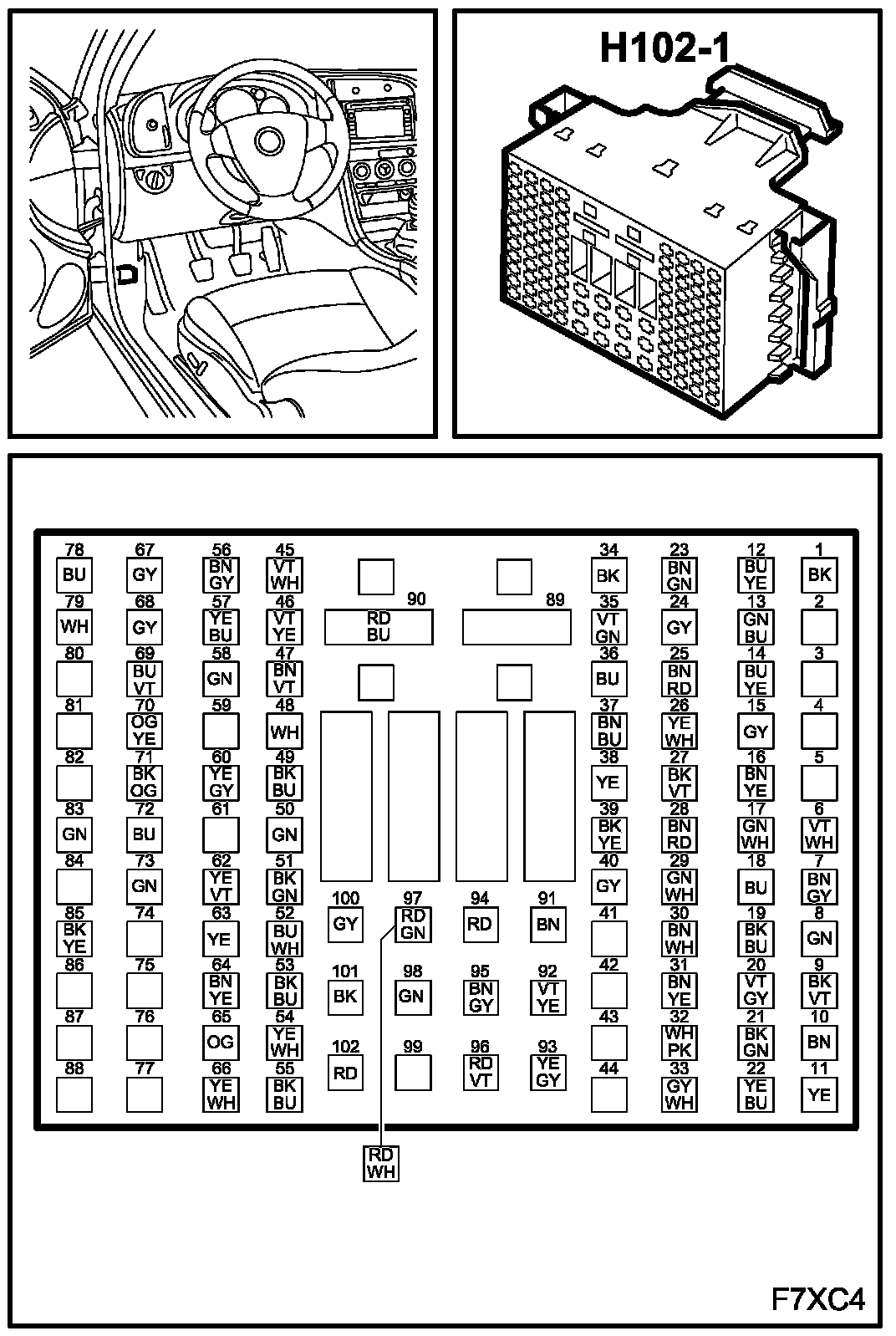

Connector H102-1
Connector H102-1
Location:
Under the LH A-pillar
Connector H102-1:
