Saab
>>
2008
>>
9-3 (9440) L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
Control Module, Trionic, Switch A (589A)
Control Module, Trionic, Switch A (589A)
Location
: engine front

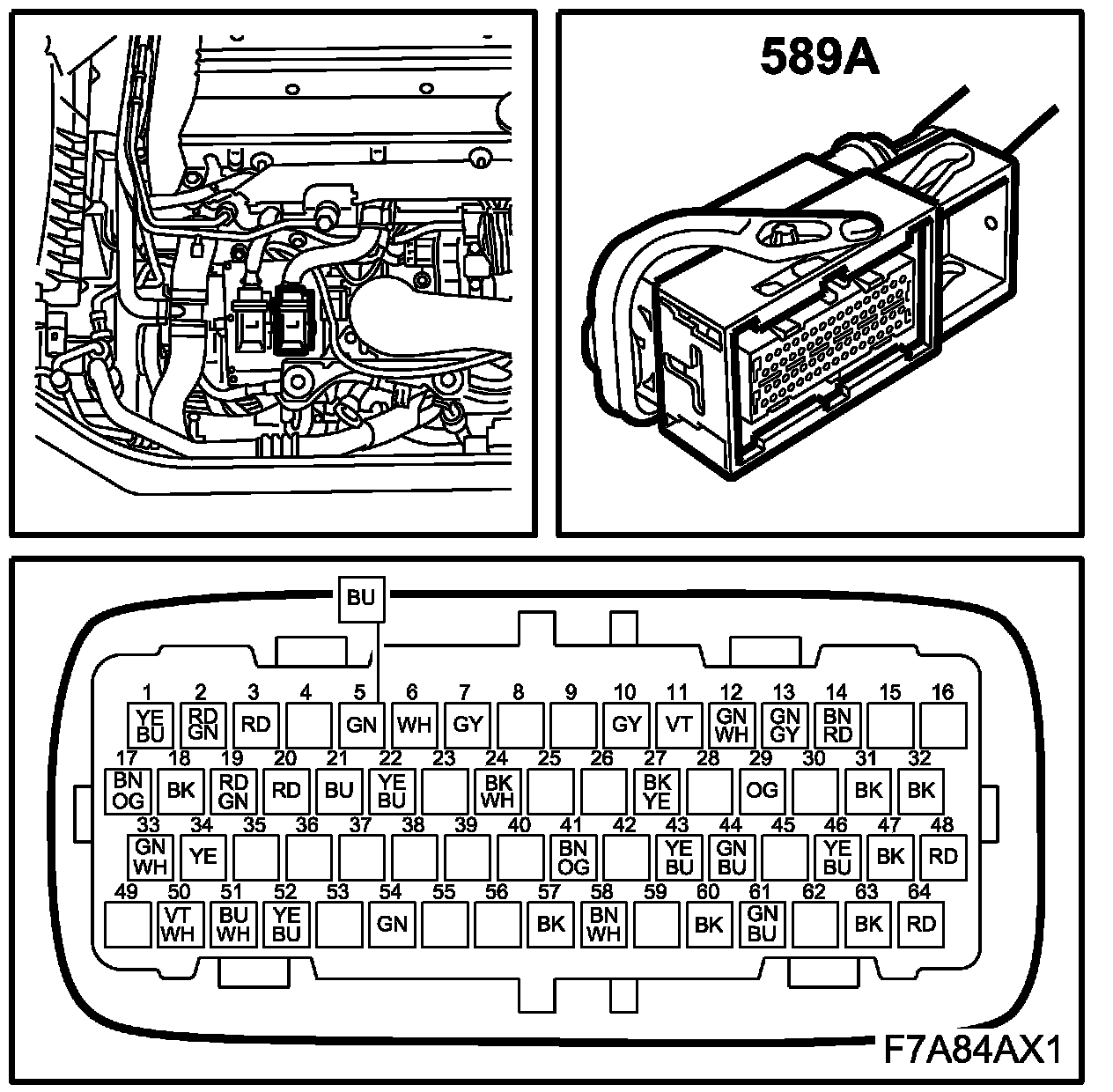

Control Module, Trionic, B207, Switch A (589A):
