Motor, Air Distribution, Defroster (714)
Motor, Air Distribution, Defroster (714)

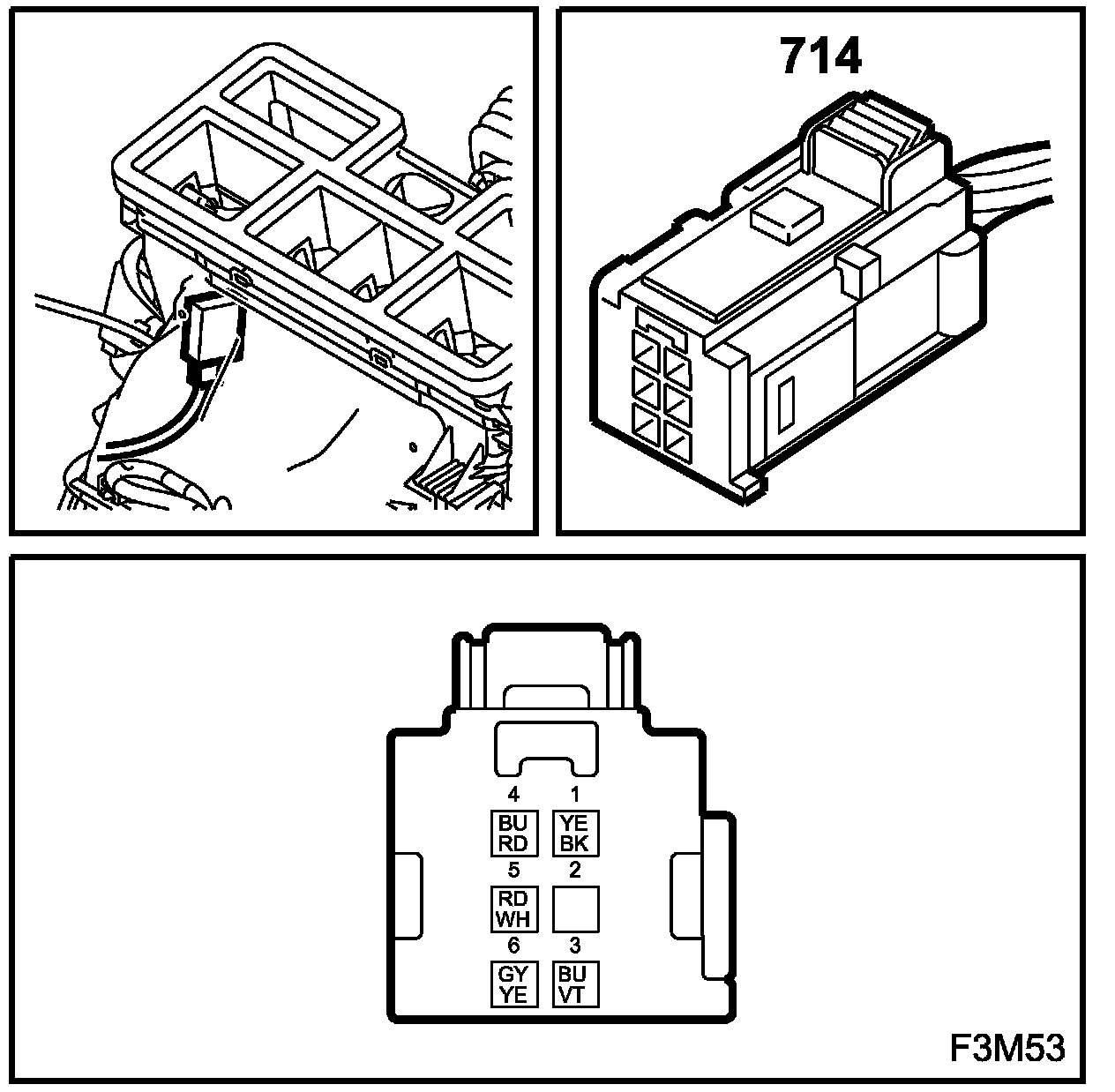

Location:
center motor on the LH heating and ventilation unit end plate
Motor, Air Distribution, Defroster (714):
