Saab
>>
2008
>>
9-3 (9440) L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heating and Air Conditioning
>>
Auxiliary Water Pump
Auxiliary Water Pump

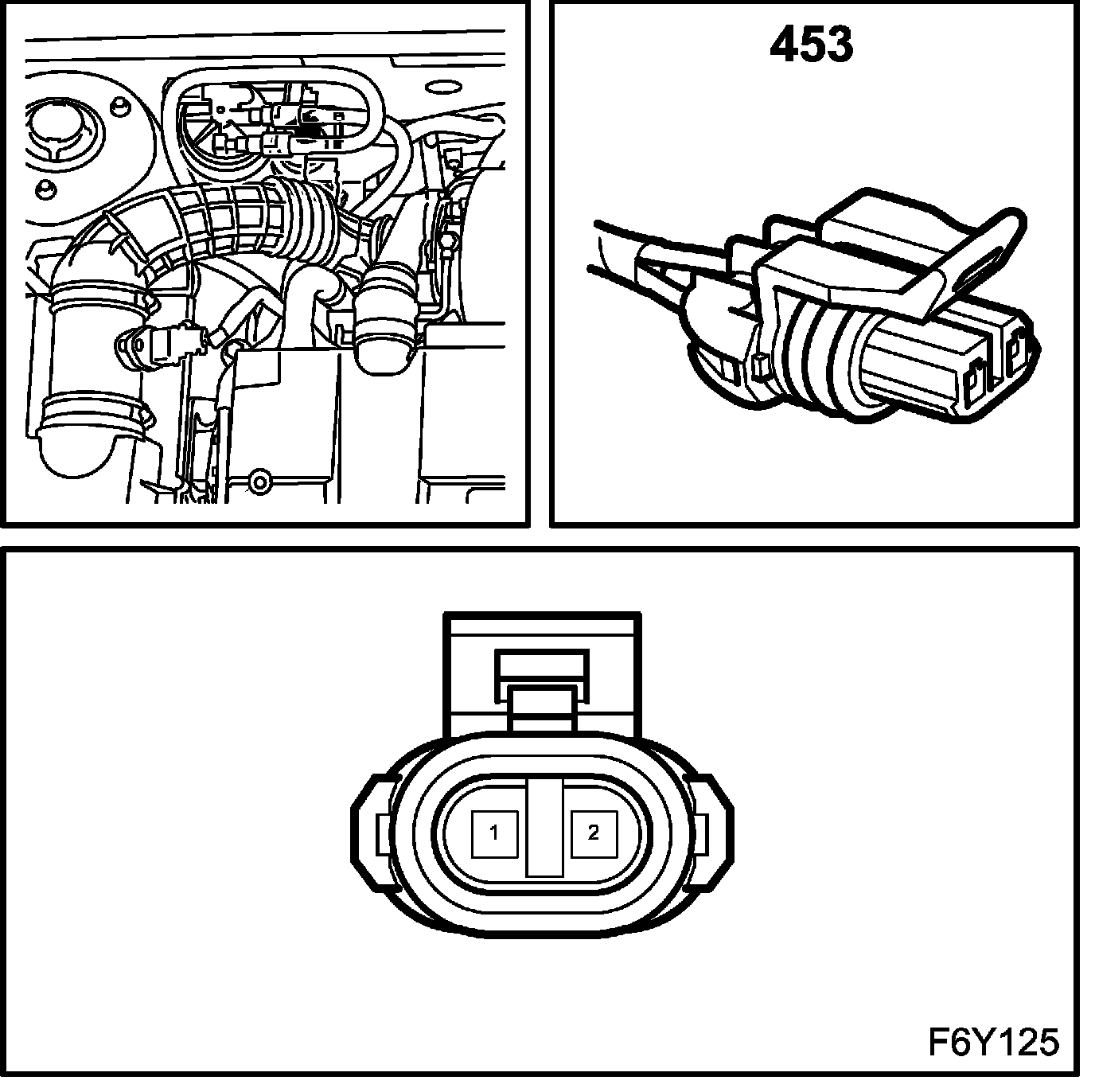

Location:
on parking heater
Motor, Pump, Engine Coolant Circulation (453):
