Ignition Control Module
Ignition Control Module

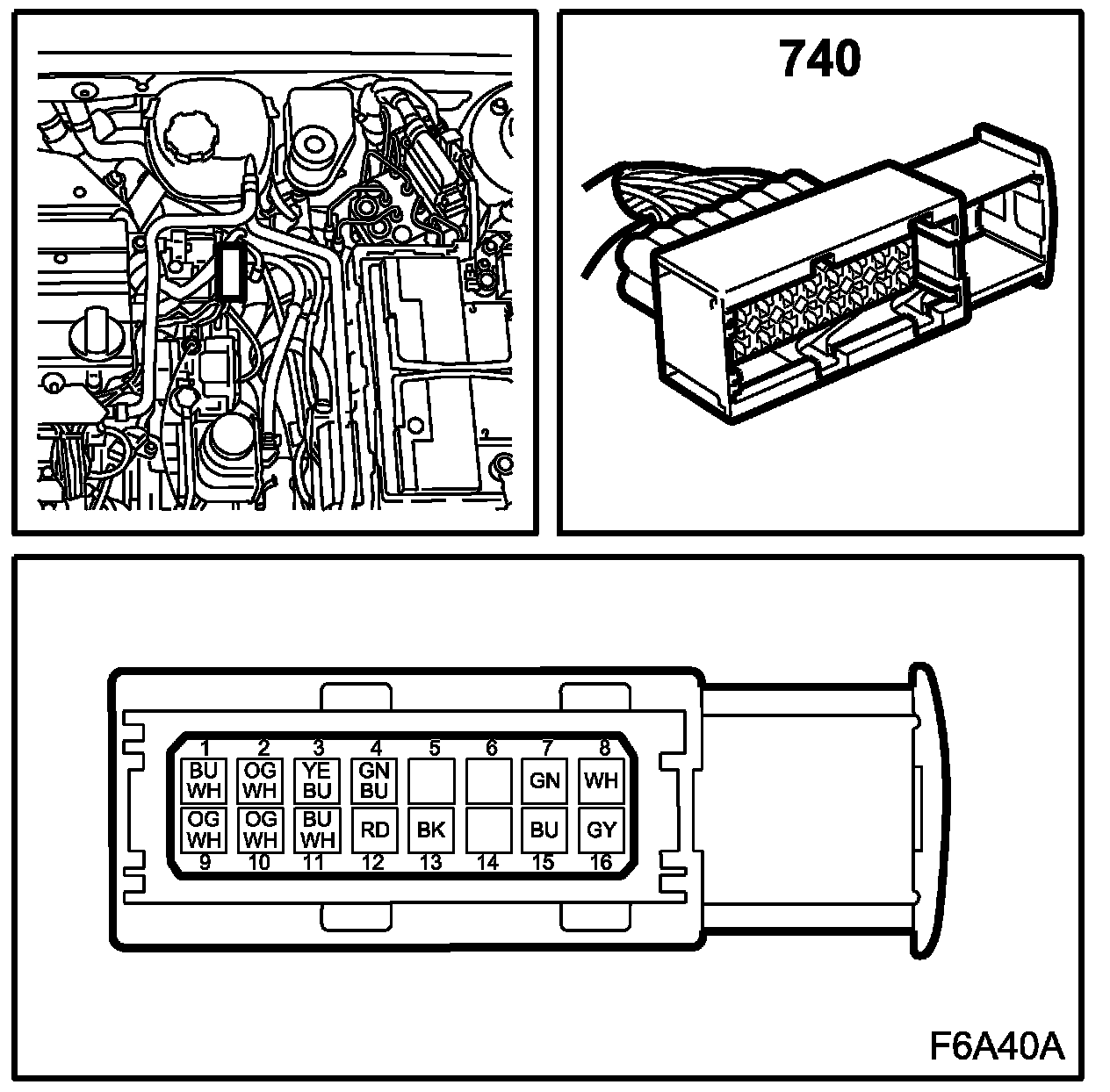

Location:
on the engine's short left side by the vacuum pump
Ionization Detection Module (740):
