Leak Detection Solenoid, Evaporative System
Leak Detection Solenoid, Evaporative System

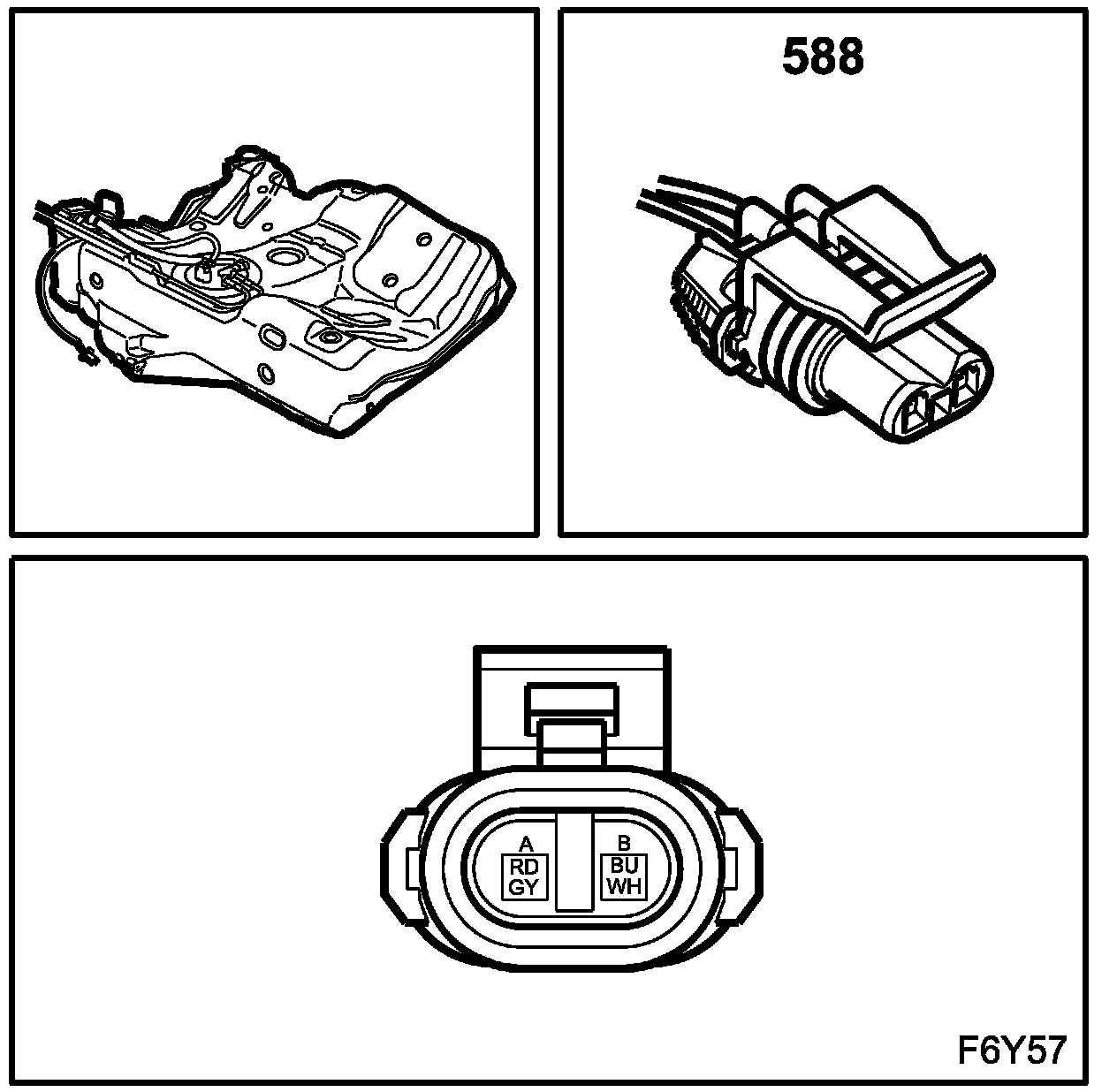

Location:
on the fuel tank
EVAP Shut-off Solenoid Valve (588):
