Diesel Data: Automotive Repair
Home >> Saab >> 2008 >> 9-3 (9440) L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Door Lock Actuator >> Central Locking System Motor, Right Rear Door (184RR)

Central Locking System Motor, Right Rear Door (184RR)



Central Locking System Motor, Right Rear Door (184RR)

Location: in the central locking system

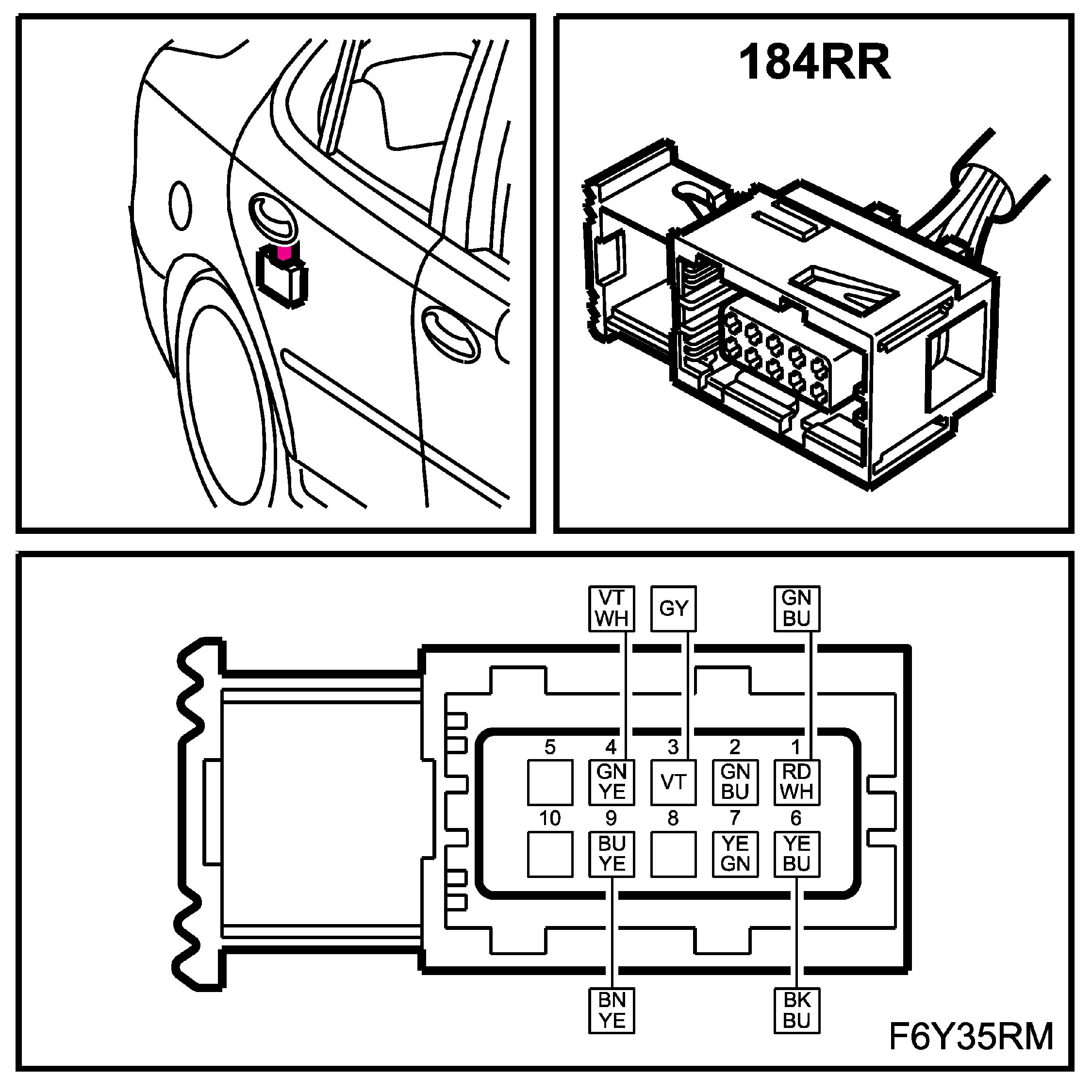

Central Locking System Motor, Right Rear Door (184RR):
