Radio, Stereo, and Compact Disc
>>
Amplifier, Sound System
>>

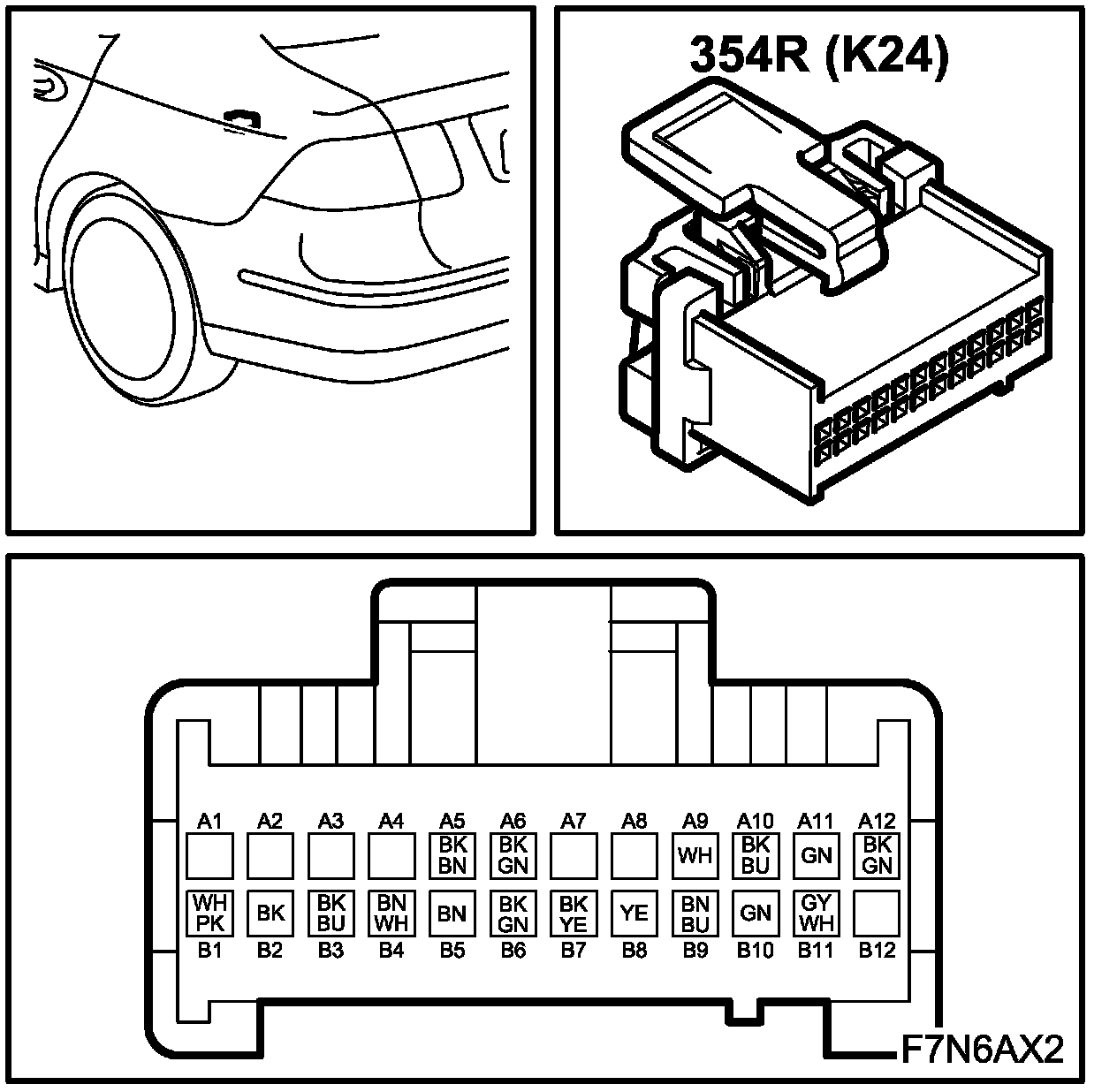

Amplifier (354R), K24
Amplifier (354R), K24
Amplifier (354R), K24:

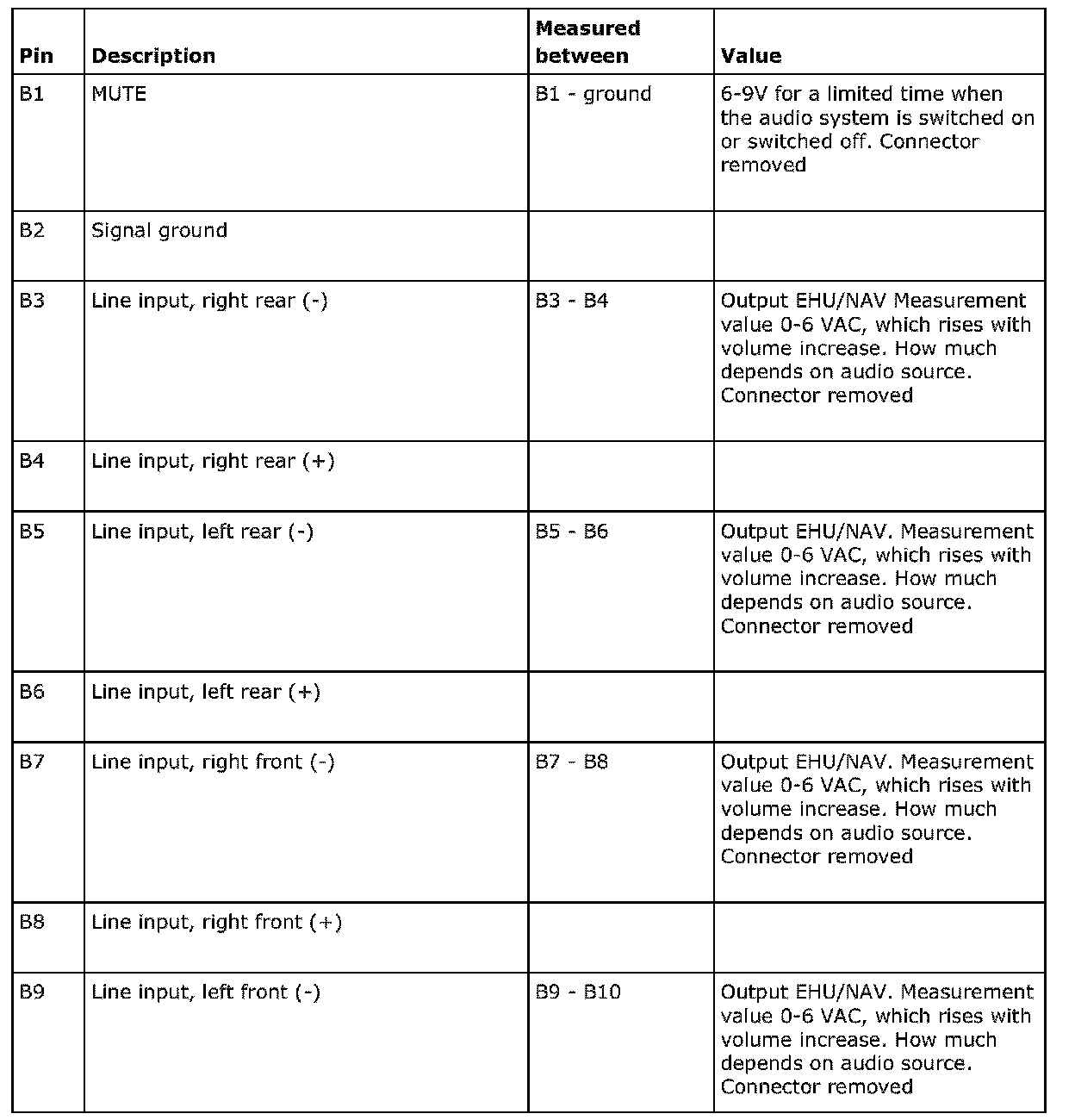

Part 1:

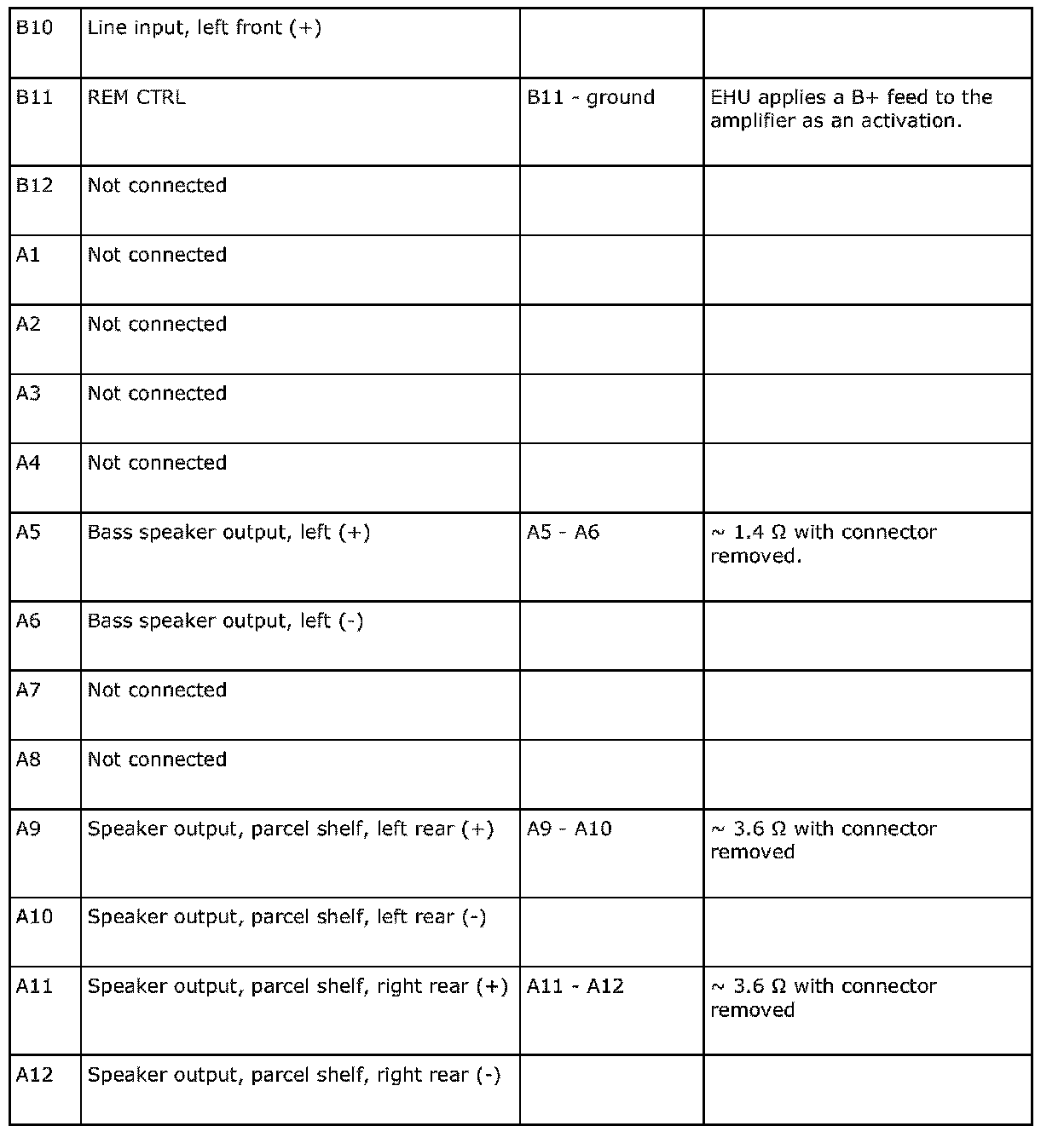

Part 2:
