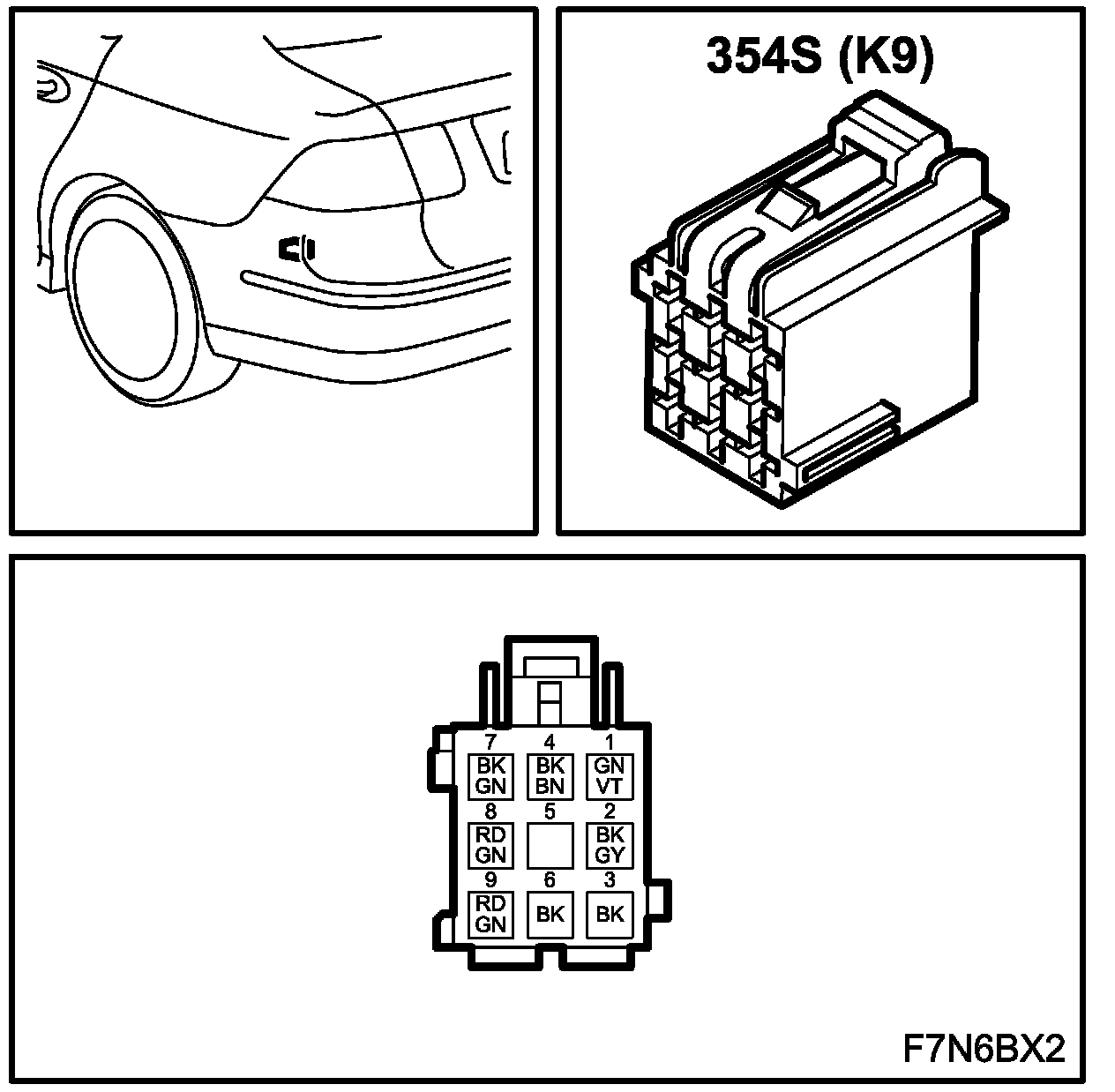

Bass Speaker Amplifier (354S), K9, CV
Bass Speaker Amplifier (354S), K9, CV
Bass Speaker Amplifier (354S), K9, CV:
