Home >> Saab >> 2008 >> 9-3 (9440) L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Radio Receiver >> Radio Receiver, TMC (718)

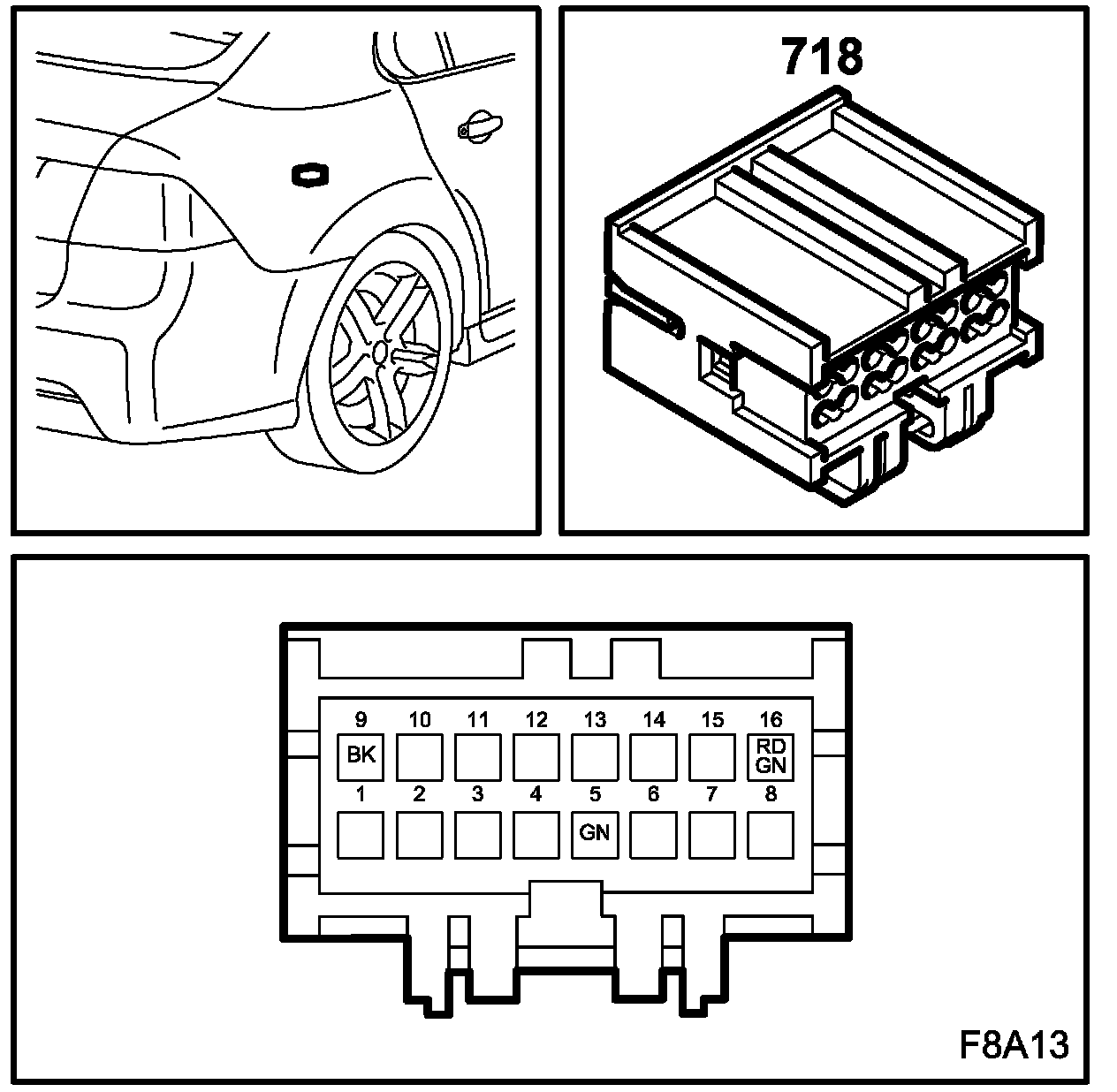

Radio Receiver, TMC (718)




Location:
4D: above right wheel housing
5D: behind left wheel housing
CV: within the rear seat RH side trim

Radio Receiver, TMC (718):
