Diesel Data: Automotive Repair
Home >> Saab >> 2008 >> 9-3 (9440) L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Position Sensor >> Position Sensor, Rake Adjustment, Electrically Operated Driver's Seat With Memory (357Df)

Position Sensor, Rake Adjustment, Electrically Operated Driver's Seat With Memory (357Df)



Position Sensor, Rake Adjustment, Electrically Operated Driver's Seat With Memory (357Df)

Location: on the motor shaft

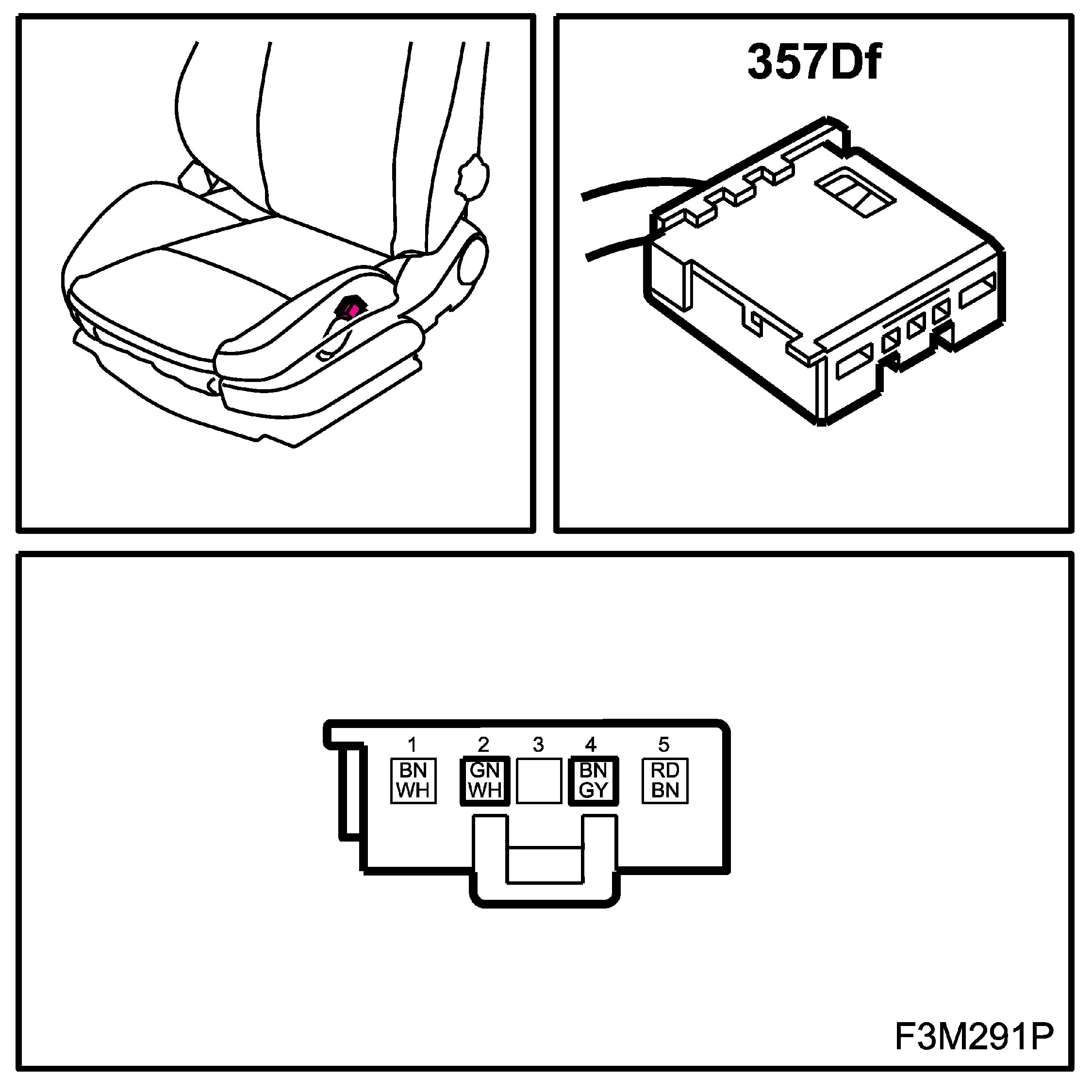

4D LH

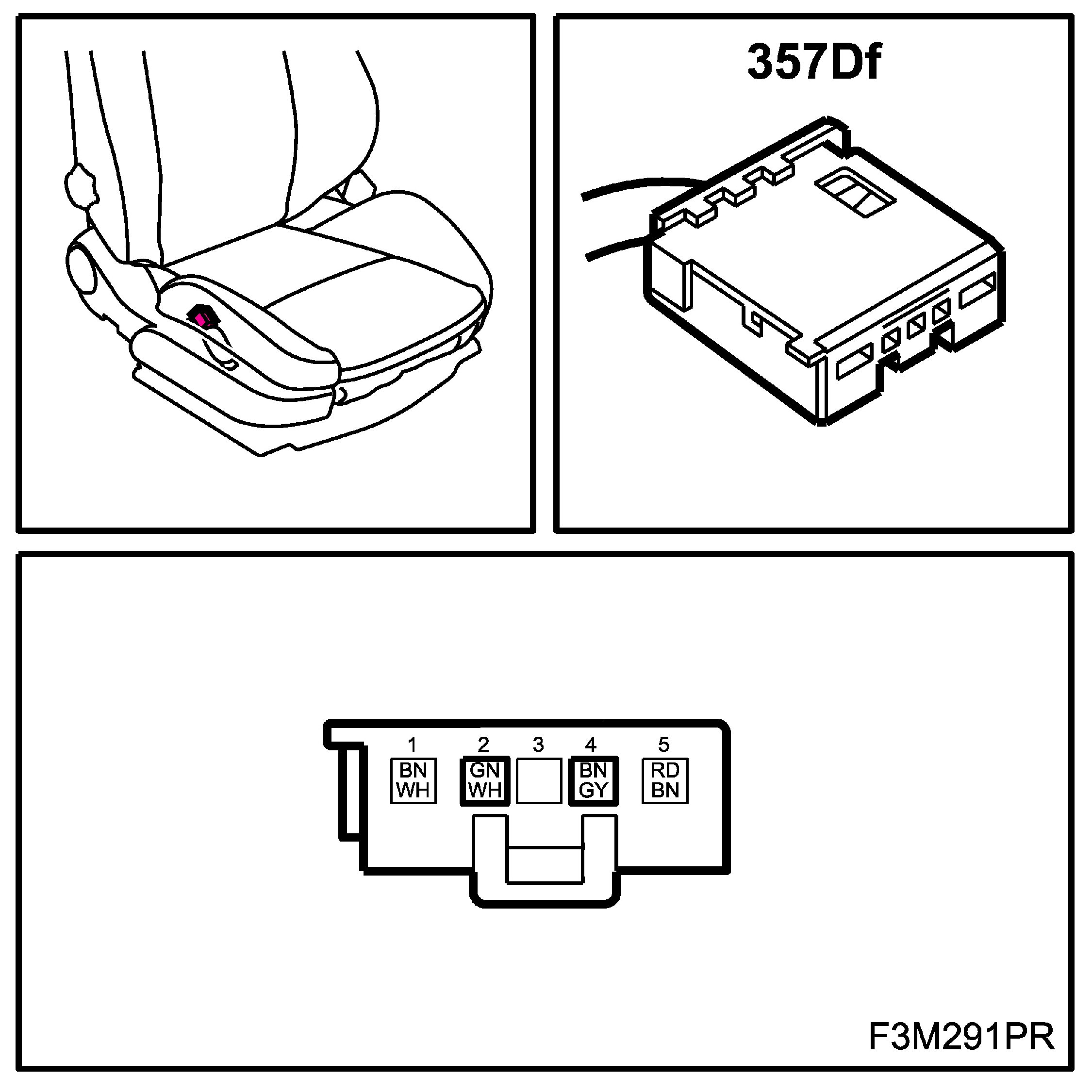

4D RH

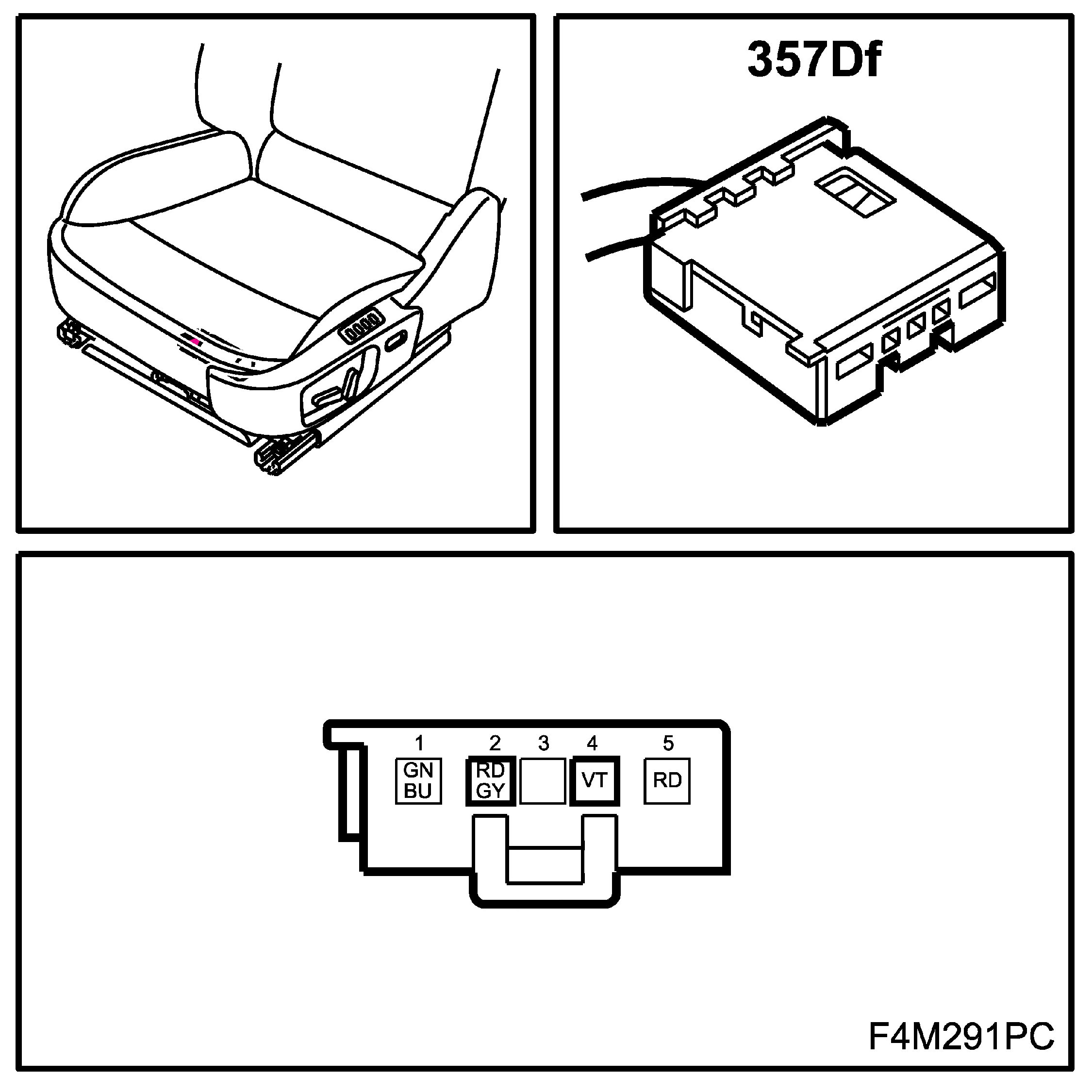

CV LH

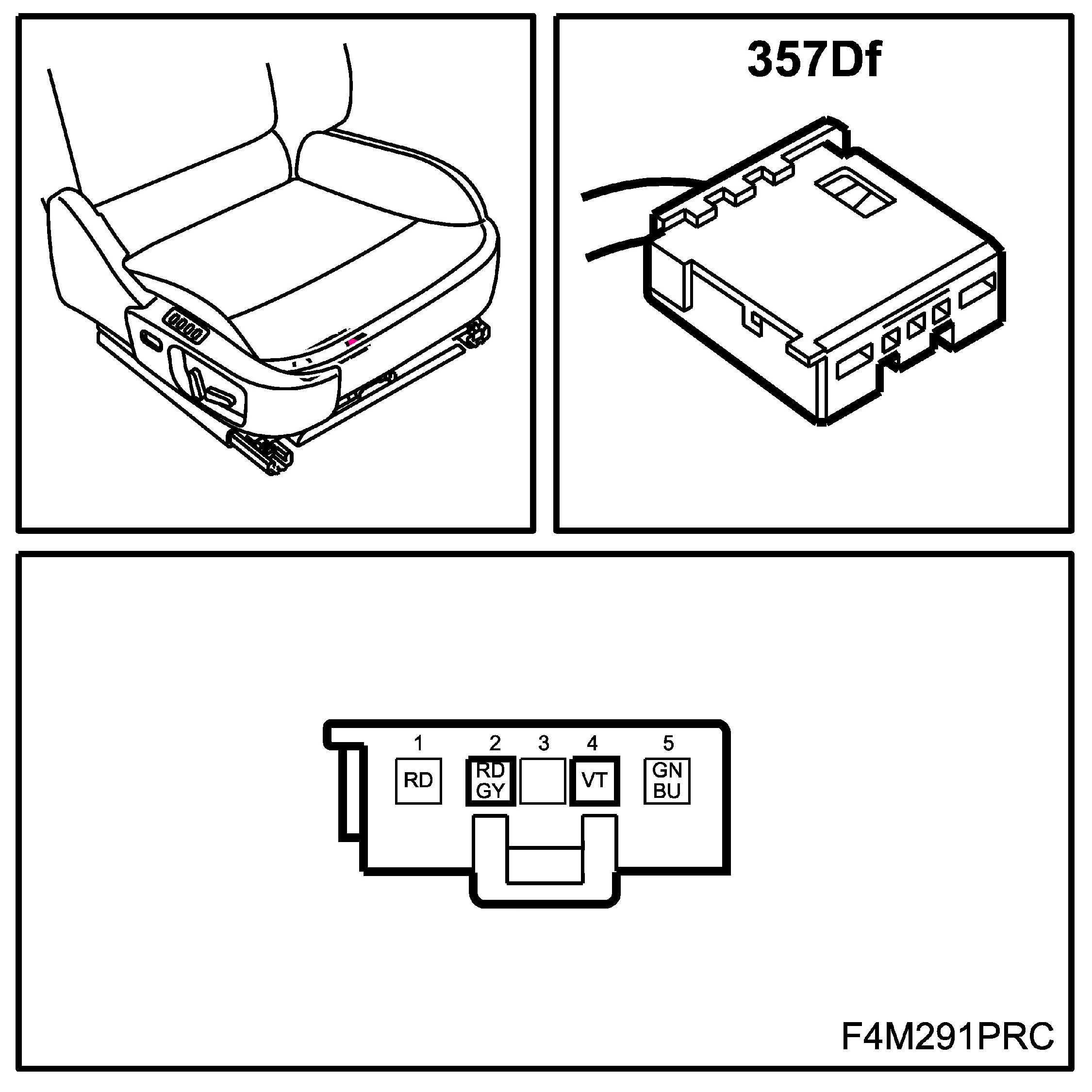

CV RH
