Diesel Data
: Automotive Repair
Home
>>
Saab
>>
2008
>>
9-3 (9440) L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Tail Lamp
>>
Light Cluster Unit, Rear Wing, RH (418RR)
>>
5D
5D

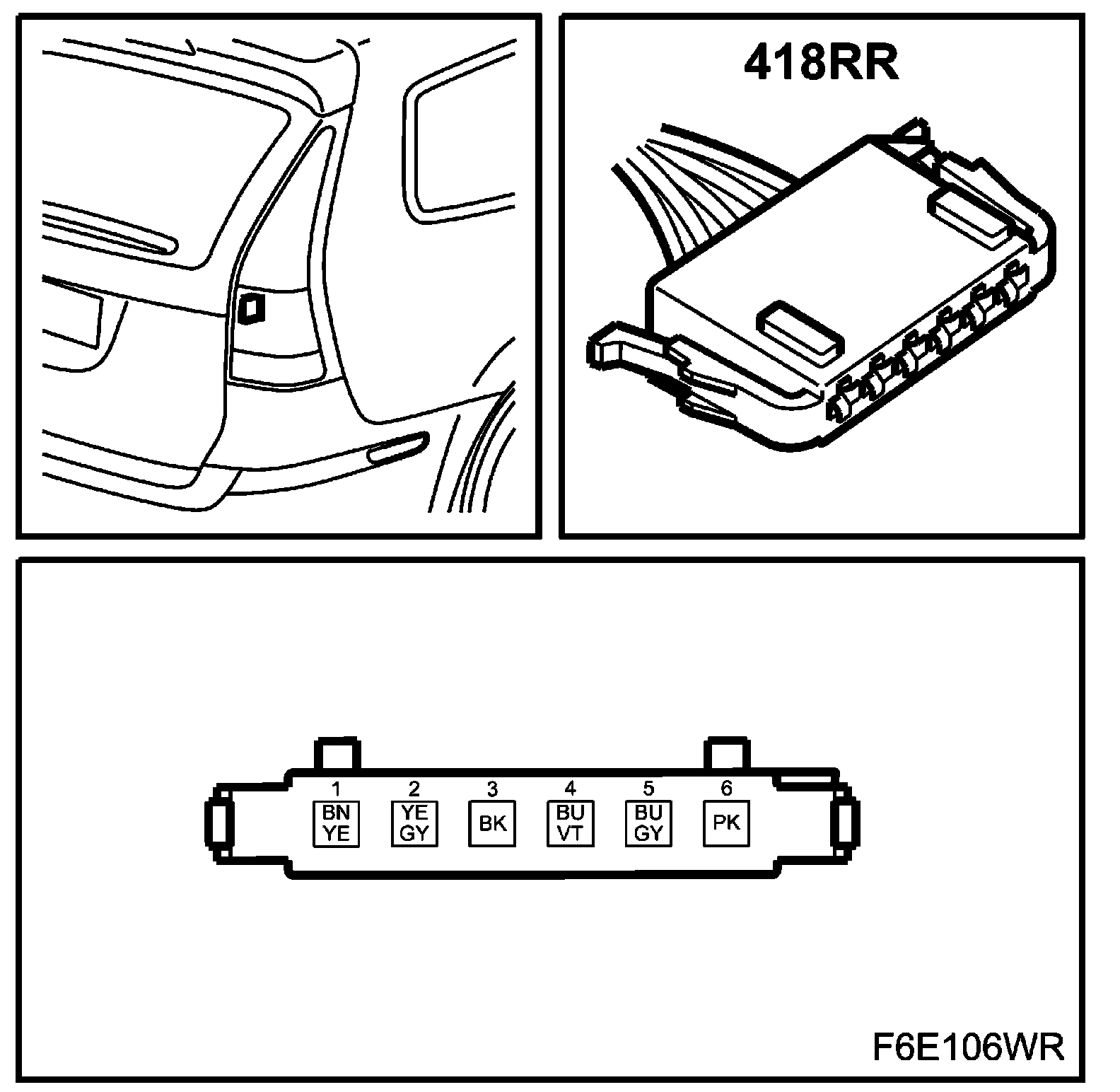

Light Cluster Unit, Rear Wing, RH (418RR), 5D:
