Saab
>>
2008
>>
9-3 (9440) L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trunk/Liftgate Sensor/Switch (For Alarm)
>>
Bootlid Lock Microswitch (622)
>>
4D/CV
4D/CV

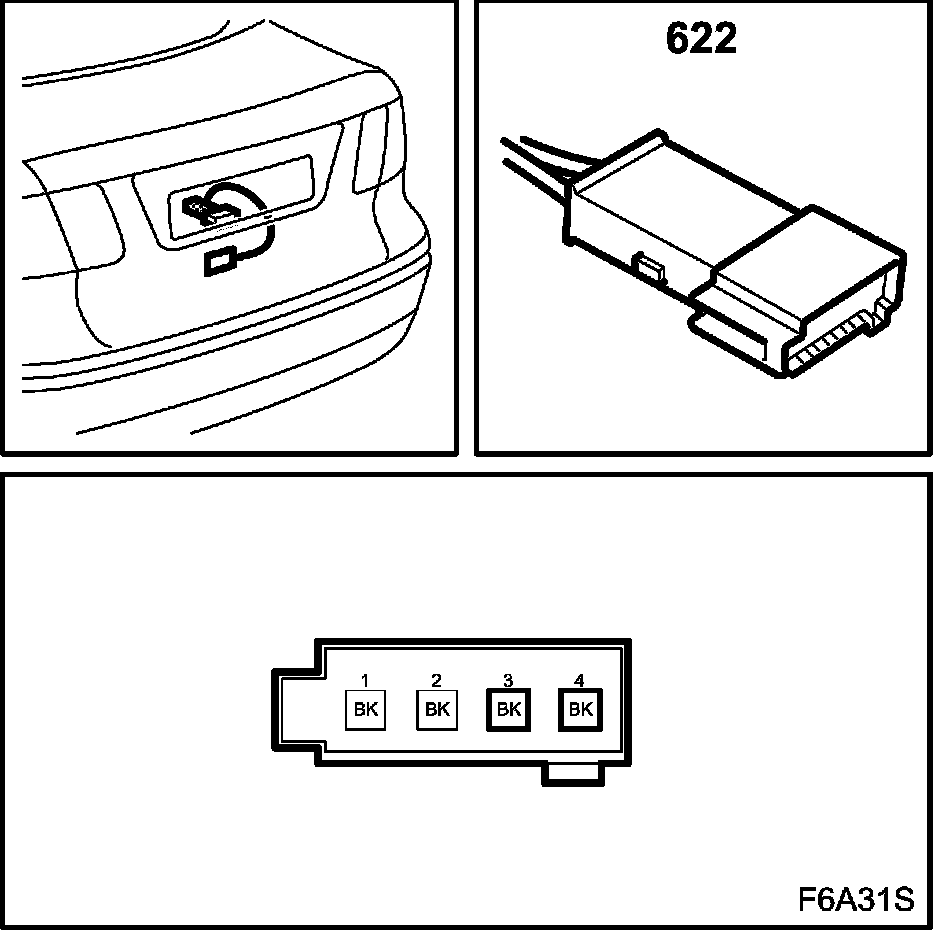

Bootlid Lock Microswitch (622), 4D/CV:
