Saab
>>
2008
>>
9-3 (9440) L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Turbo Boost Sensor
Turbo Boost Sensor

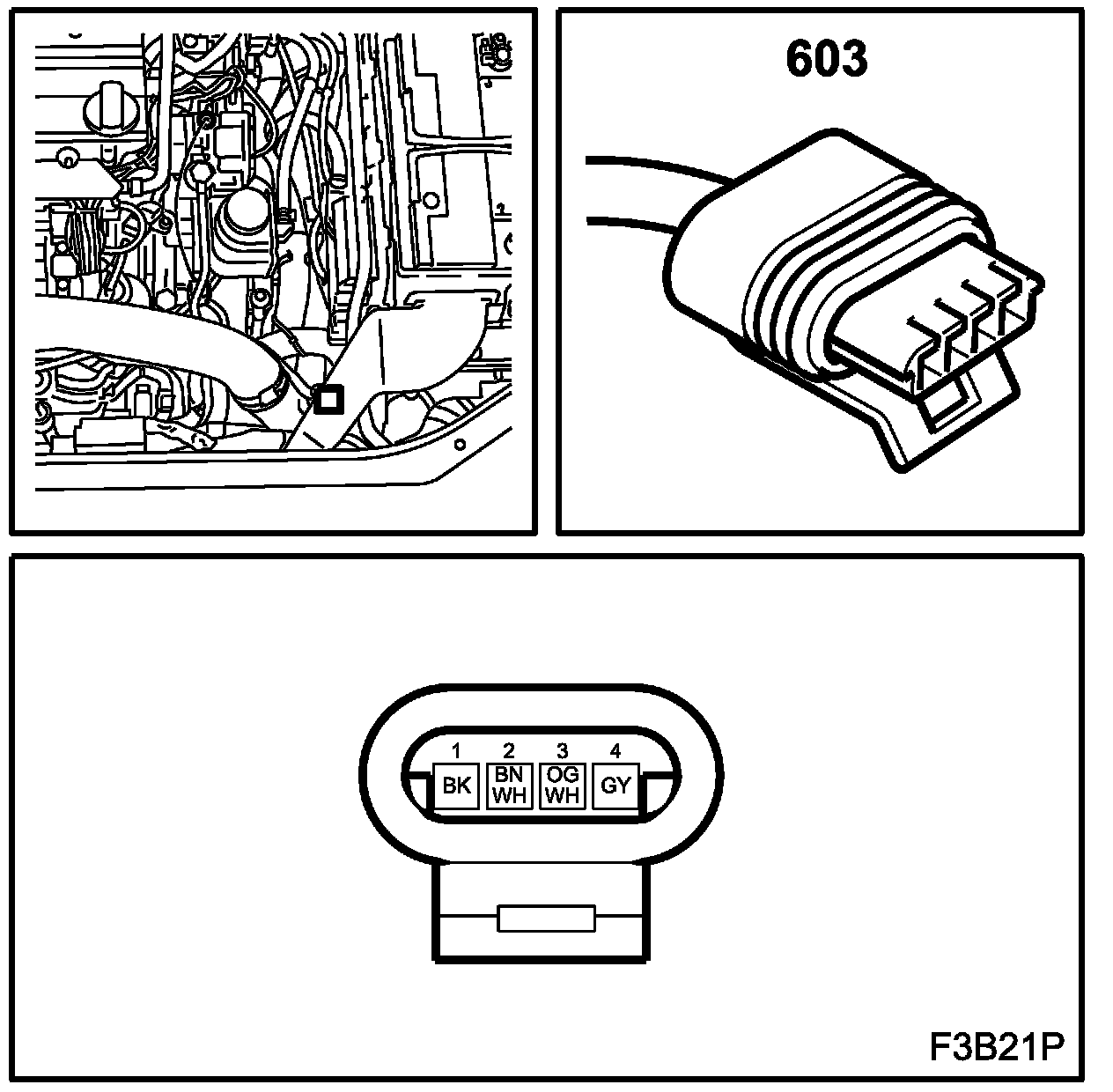

Location:
integrated in the intake air sensor 688 on the charge air pipe
B207
Charge Air Pressure Sensor (603):
