Connector H24-1
Connector H24-1

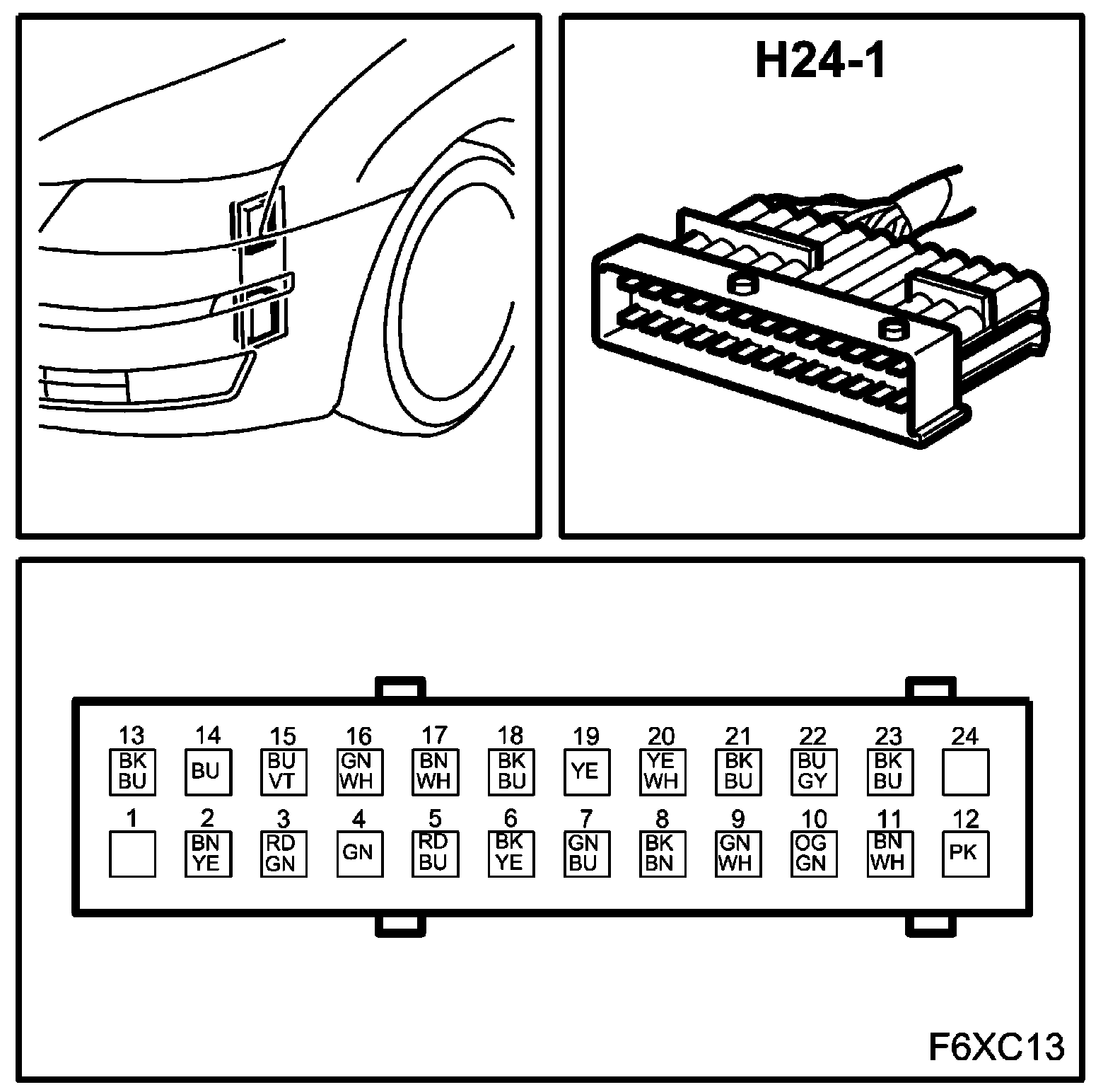

Location:
black connector in front of the battery under the left-hand structural member
Connector H24-1:
