Home >> Saab >> 2008 >> 9-3 (9440) L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> Engine Bay Main Fuse Box 342 >> Fuse 6

Fuse 6

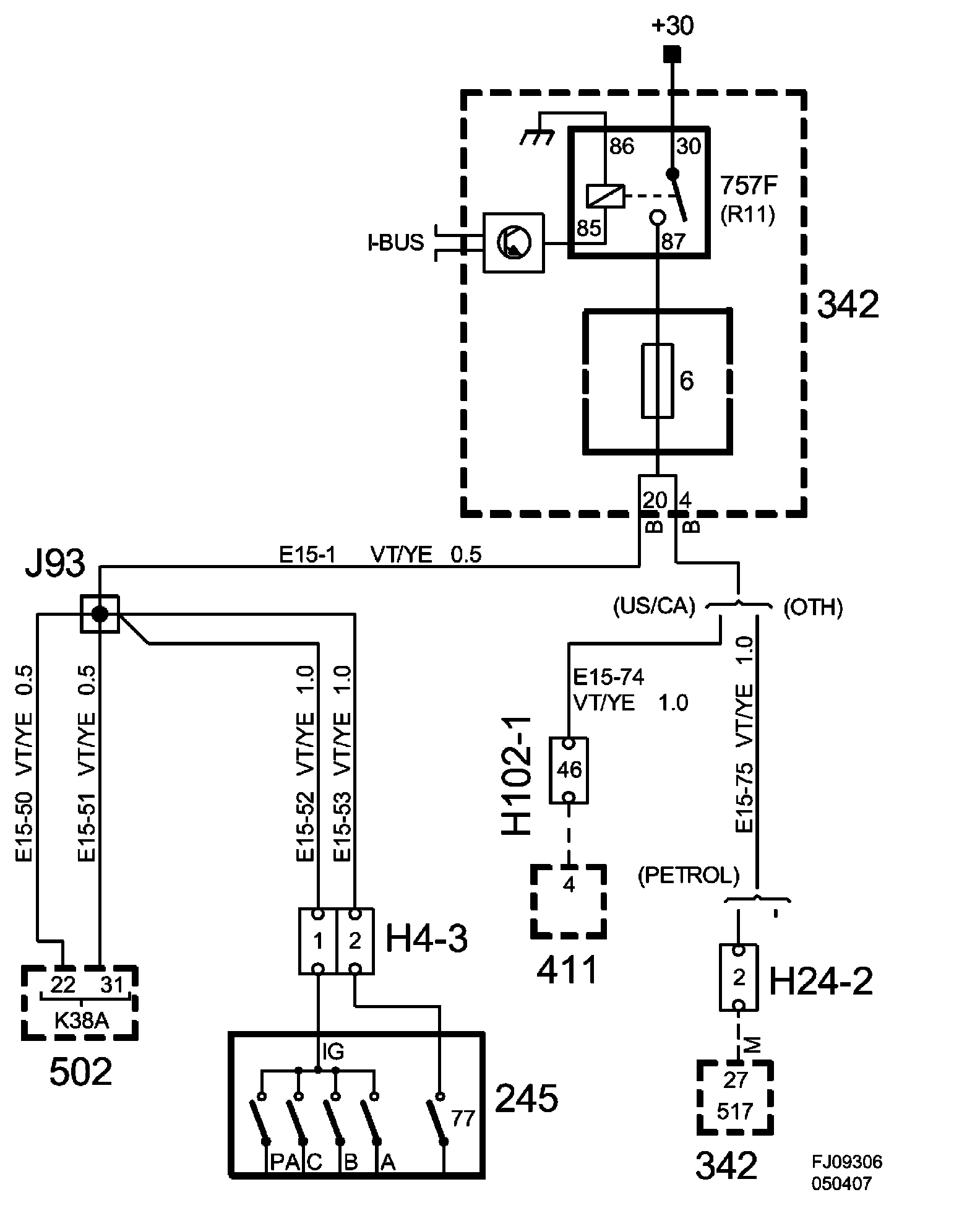

Fuse 6, Engine Bay Fuse Box 342:

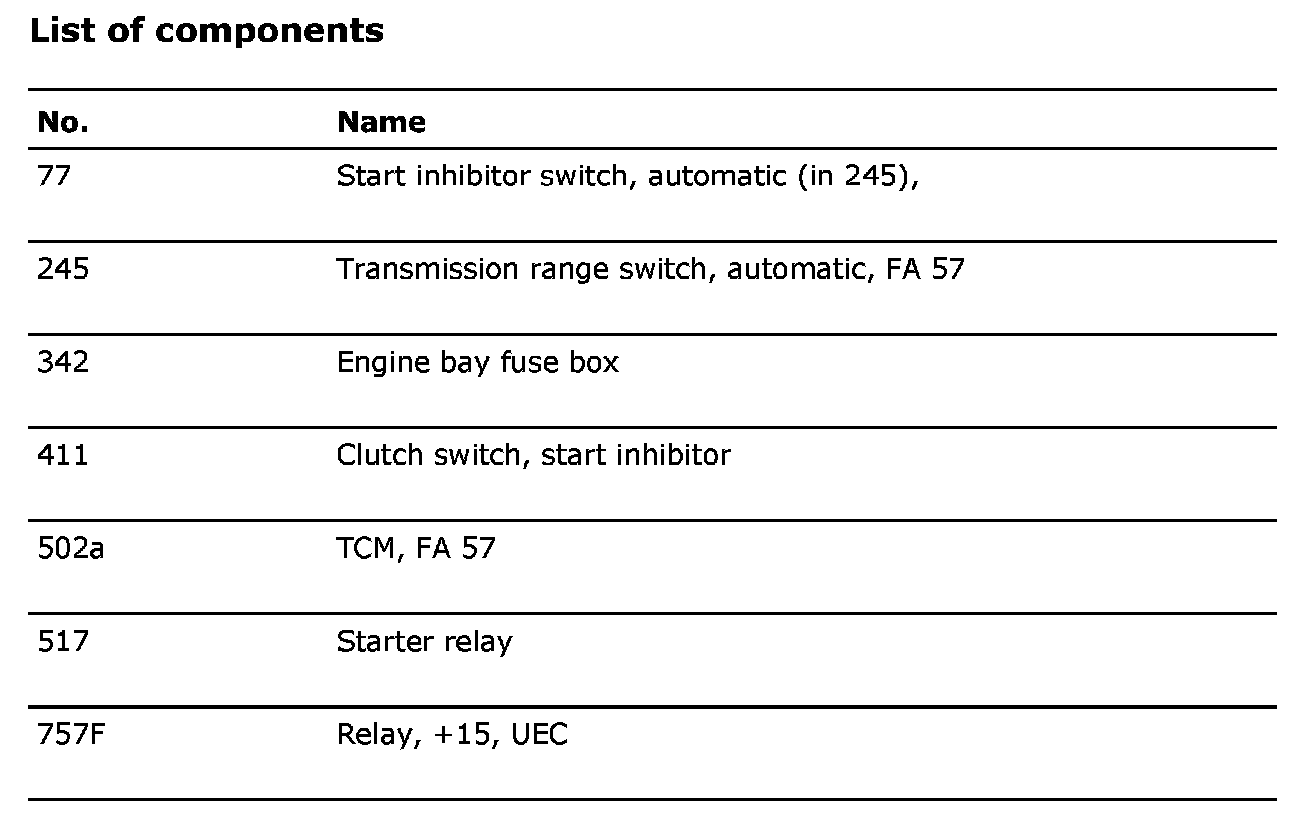

List Of Components:
