Home >> Saab >> 2008 >> 9-3 (9440) L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> Main Fuse Box In the Luggage Compartment 701 >> Fuse 26

Fuse 26

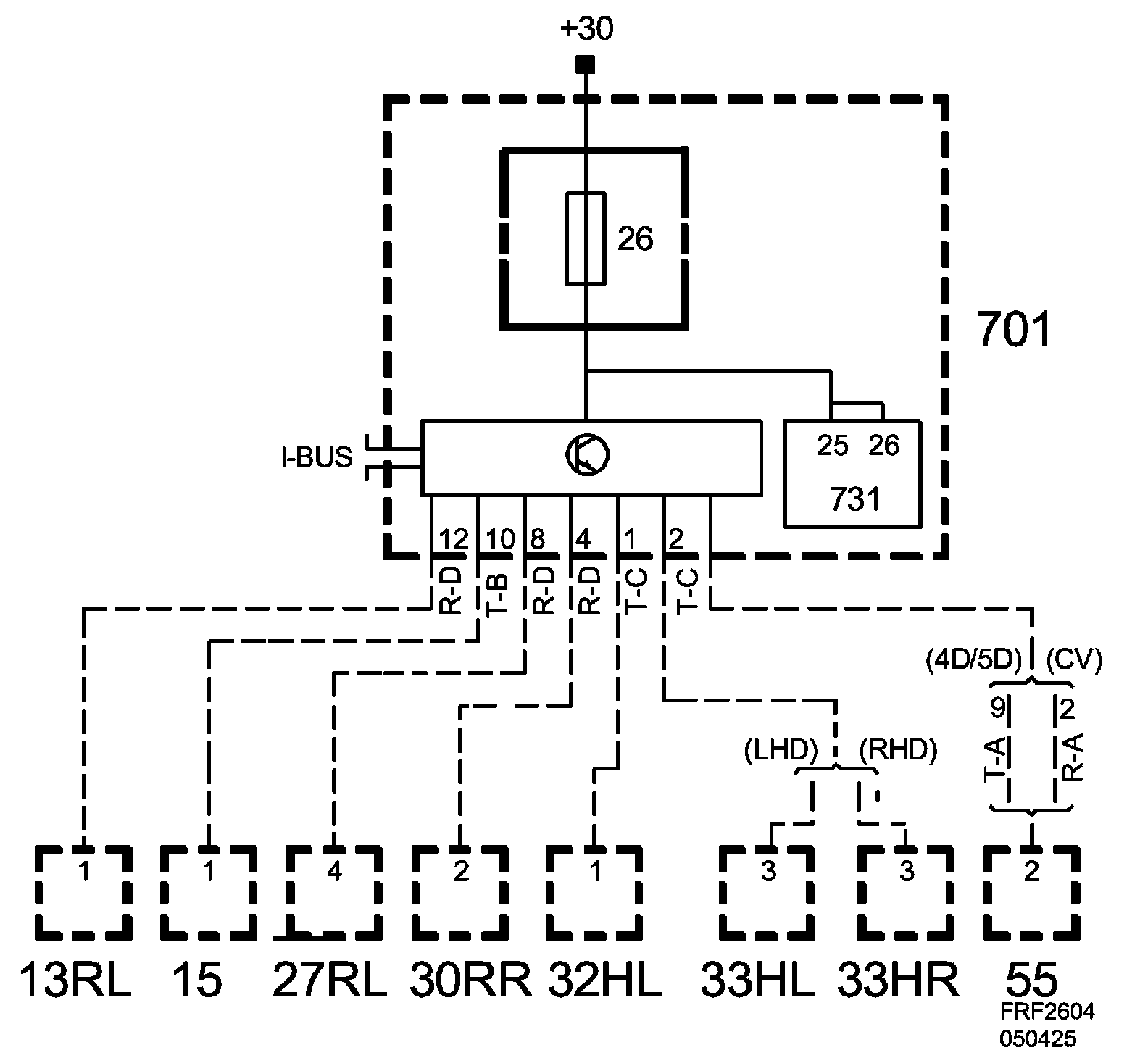

Fuse 26, Main Fuse Box In The Luggage Compartment 701:

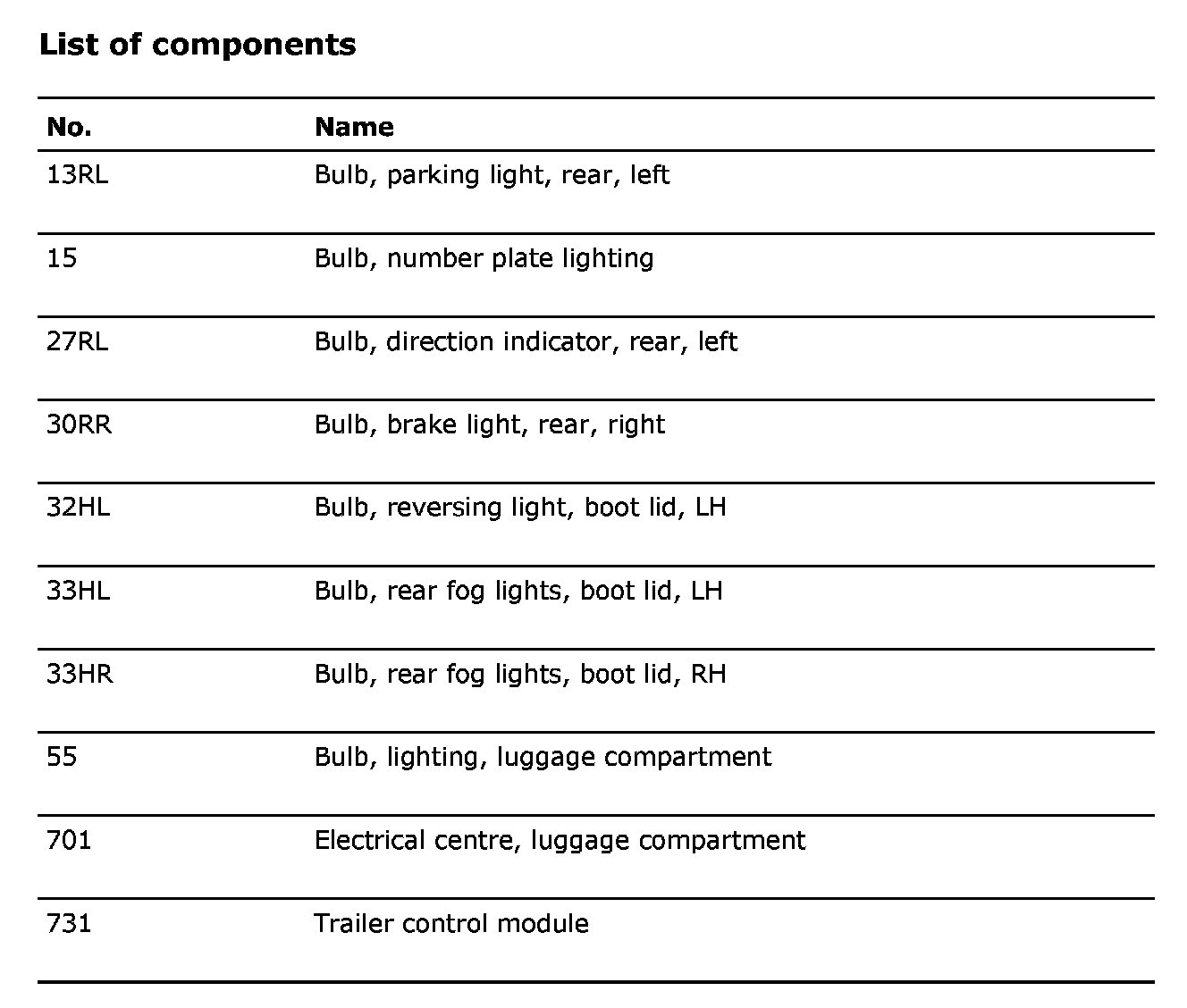

List Of Components:
