Crimp Connection J322, Tailgate 5D



Location: Approx. 360 mm from branching point high level brake light towards speakers

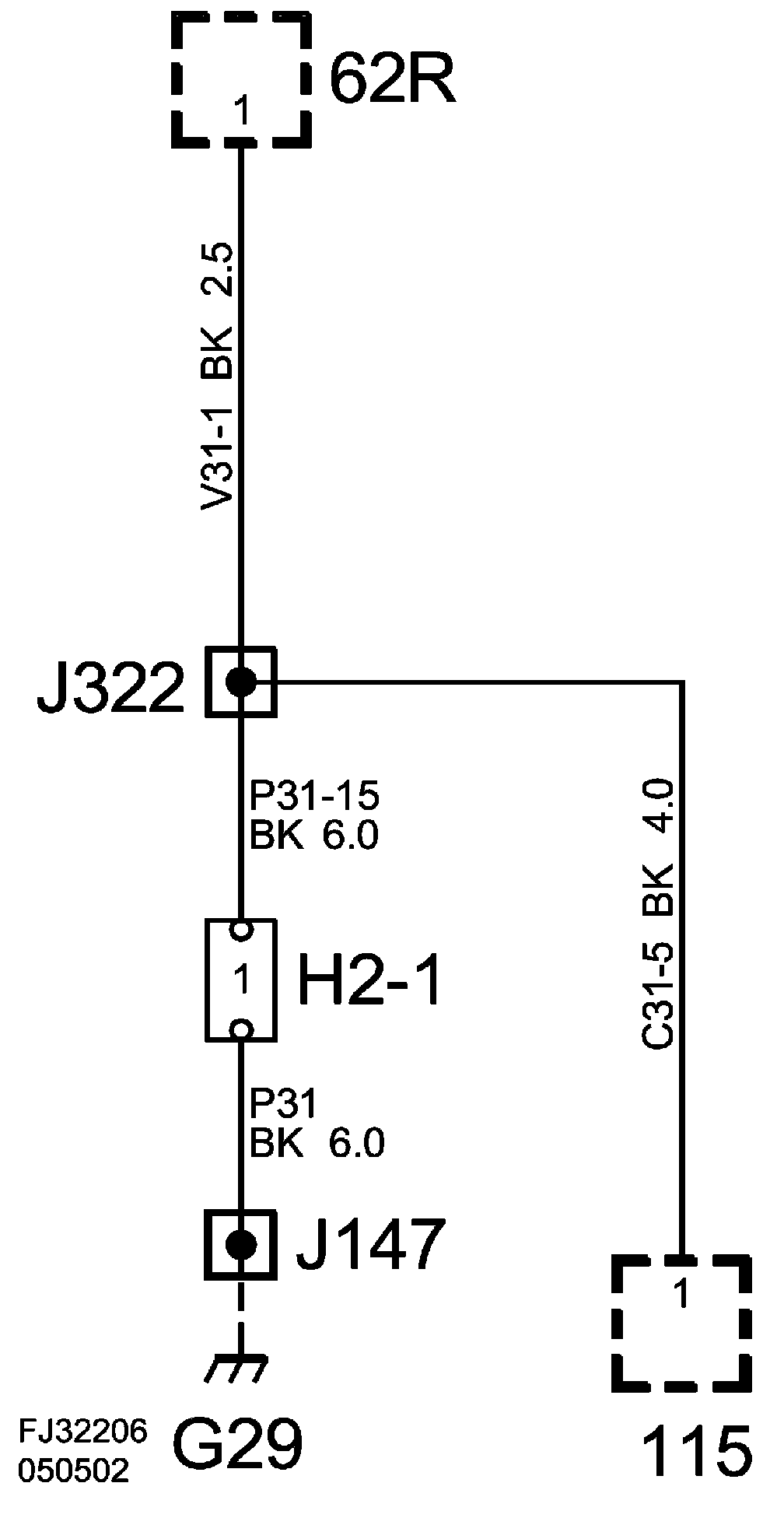

Crimp J322, Tailgate 5D:

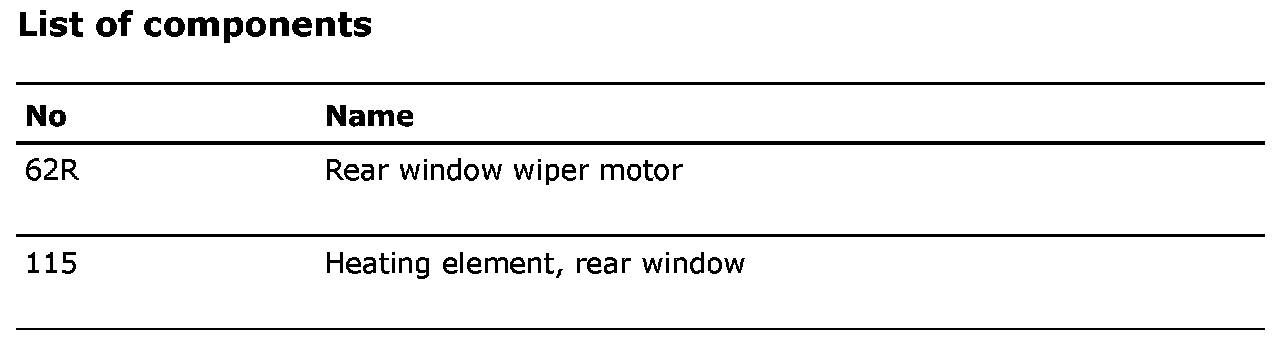

List Of Components:






Crimp J147, rear harness, 5D
