Diesel Data
: Automotive Repair
Home
>>
Saab
>>
2008
>>
9-3 (9440) L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
System Diagram
>>
Passenger Presence System

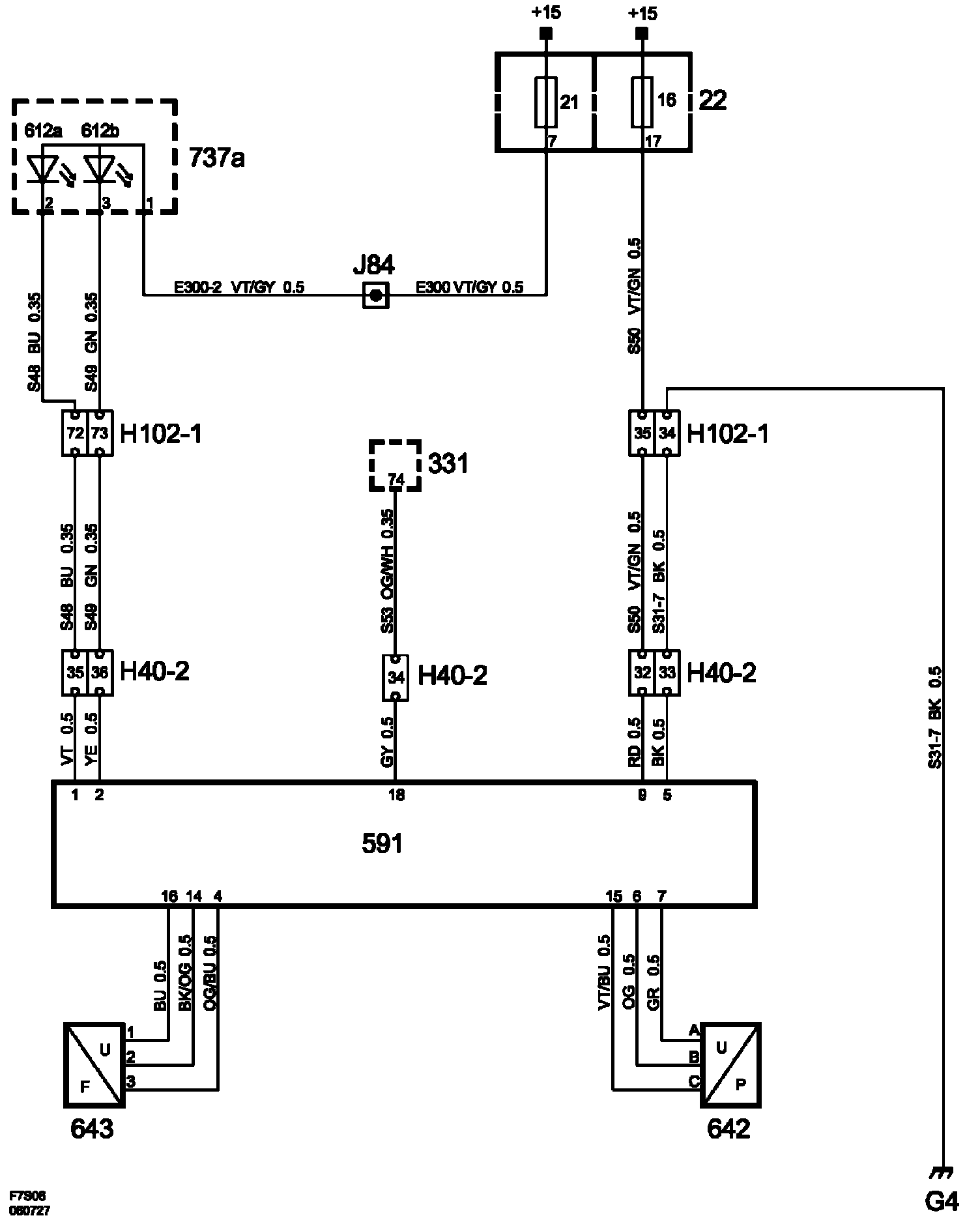

Passenger Presence System
Passenger Presence System
Passenger Presence System:

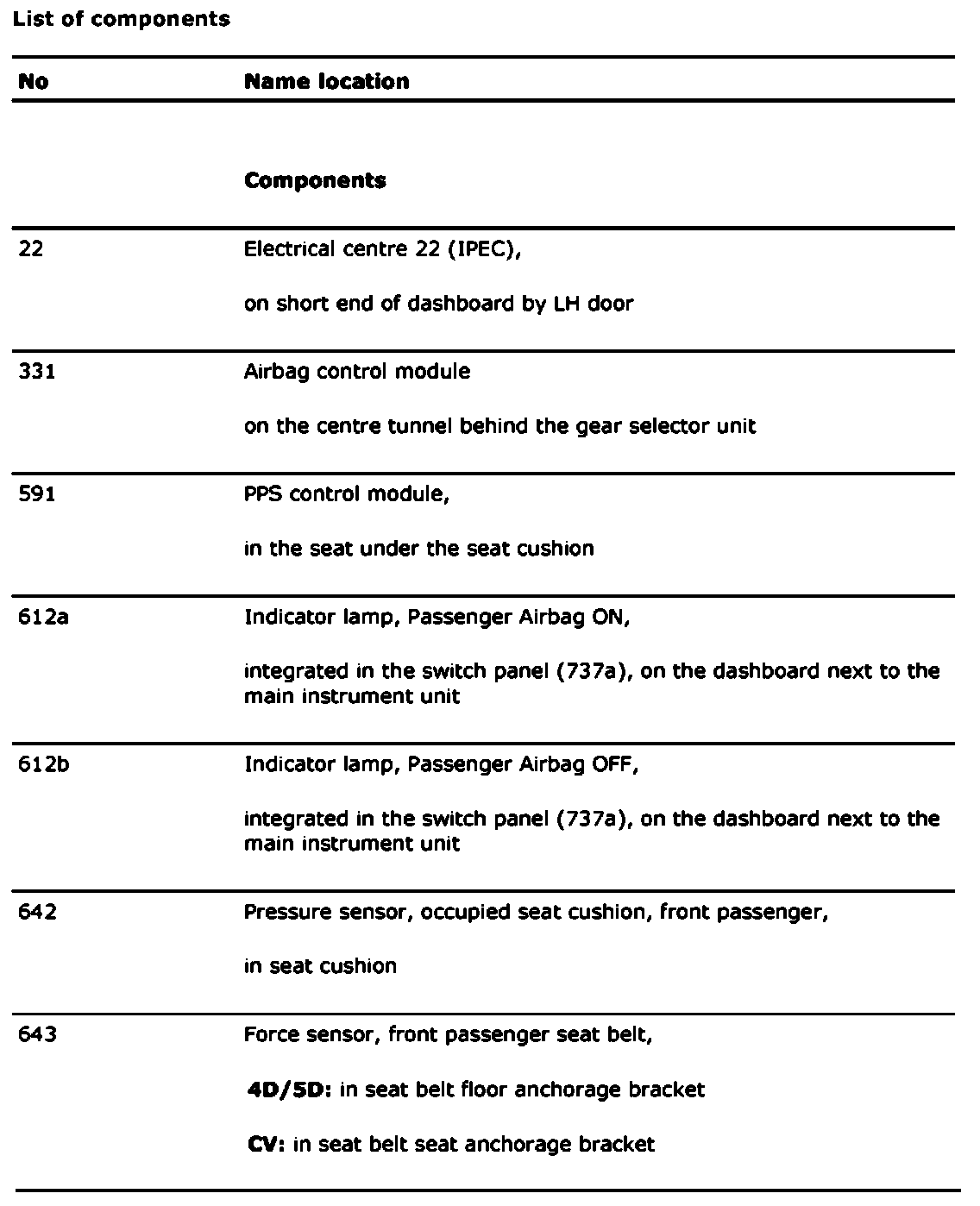

List Of Components (Part 1):

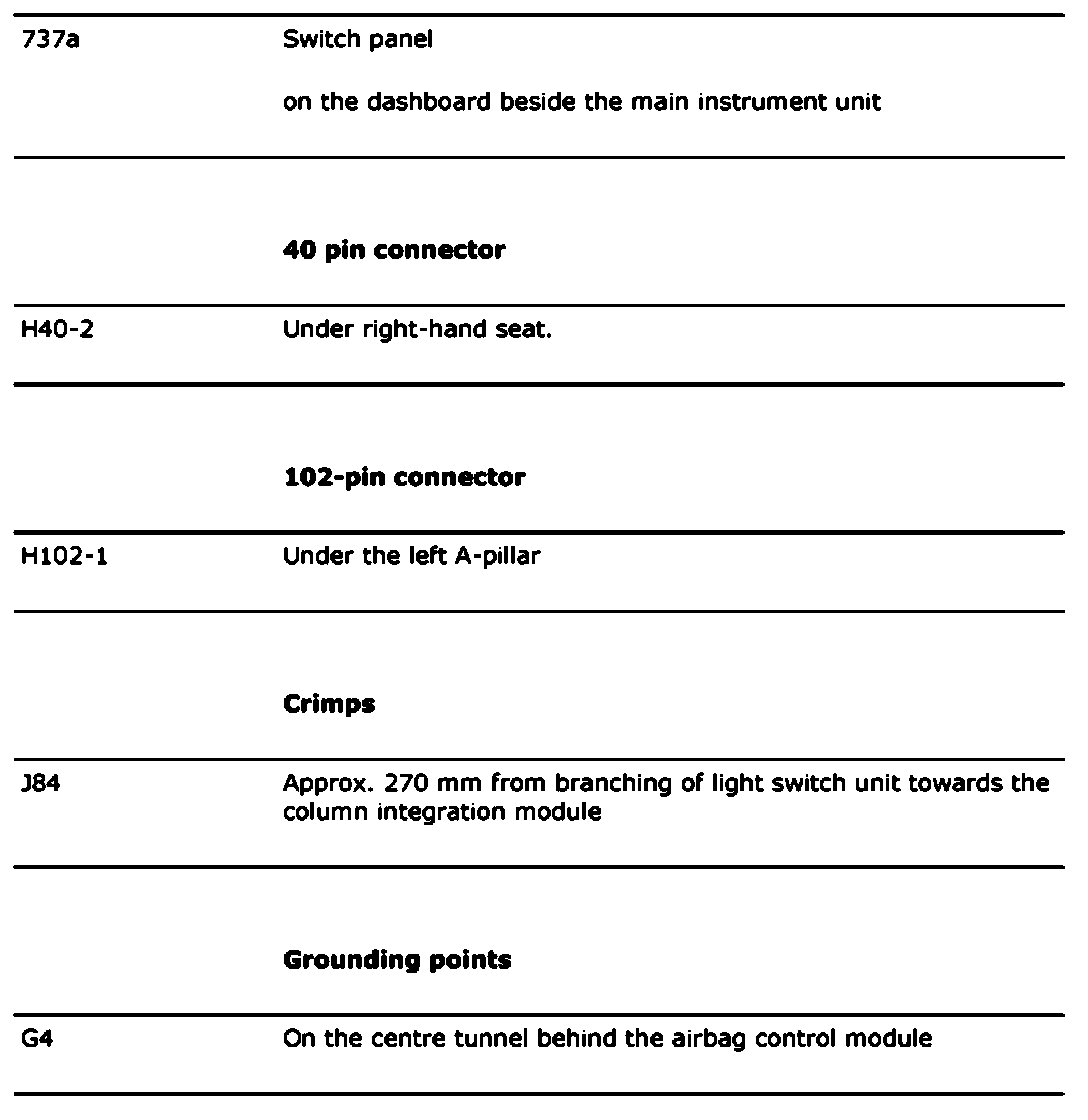

List Of Components (Part 2):
