Electric Window Lift, FR

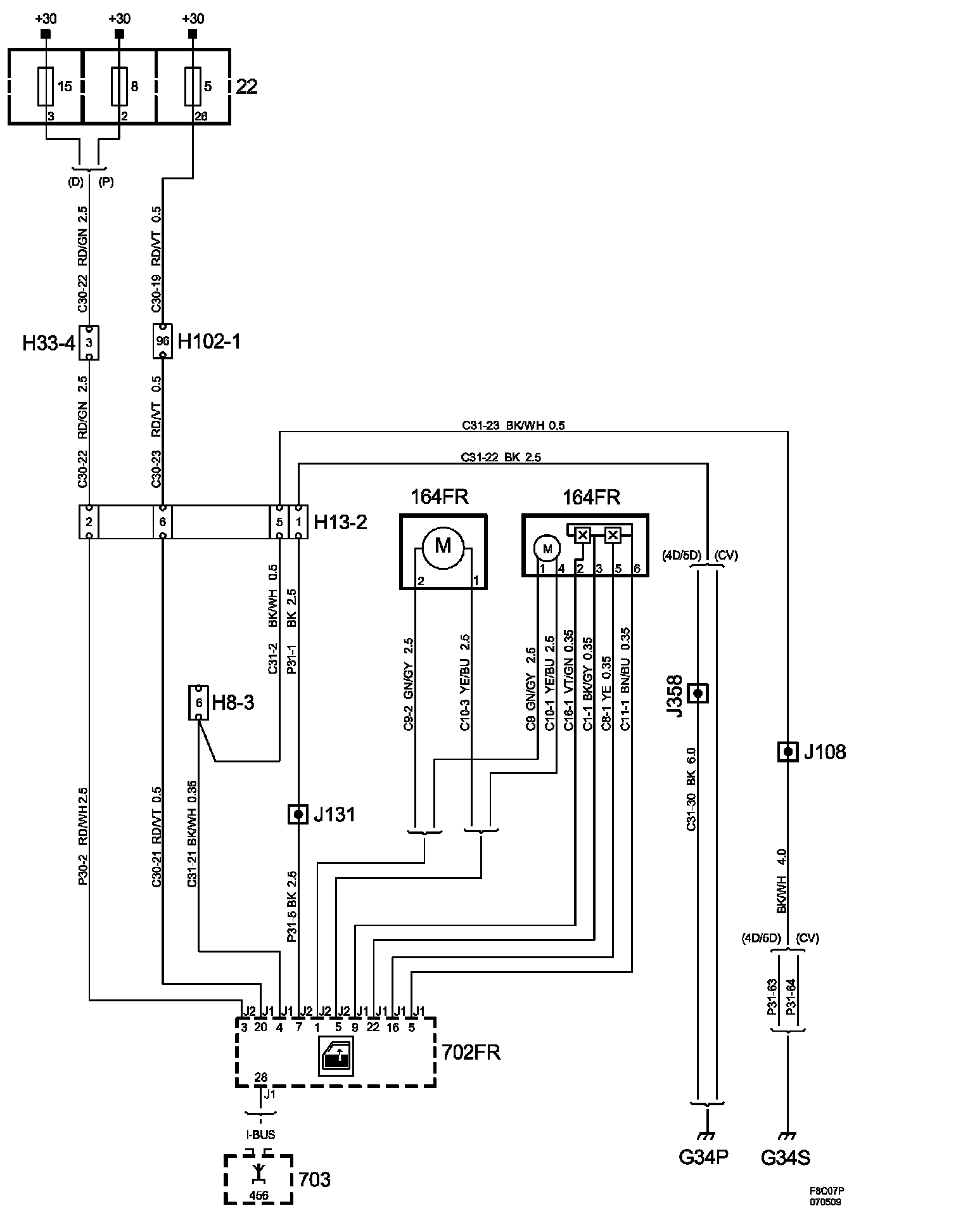

Electric Window Lift, FR:

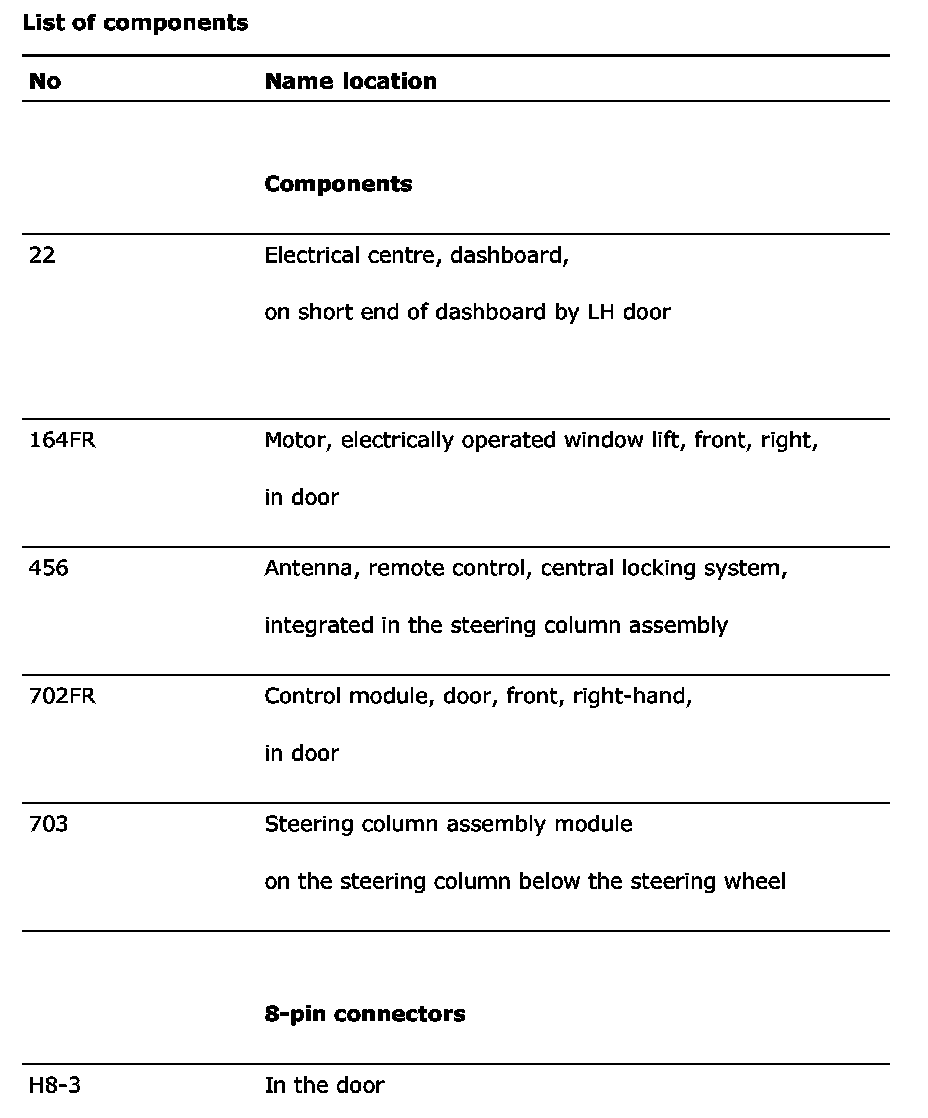

List of Components (Part 1):

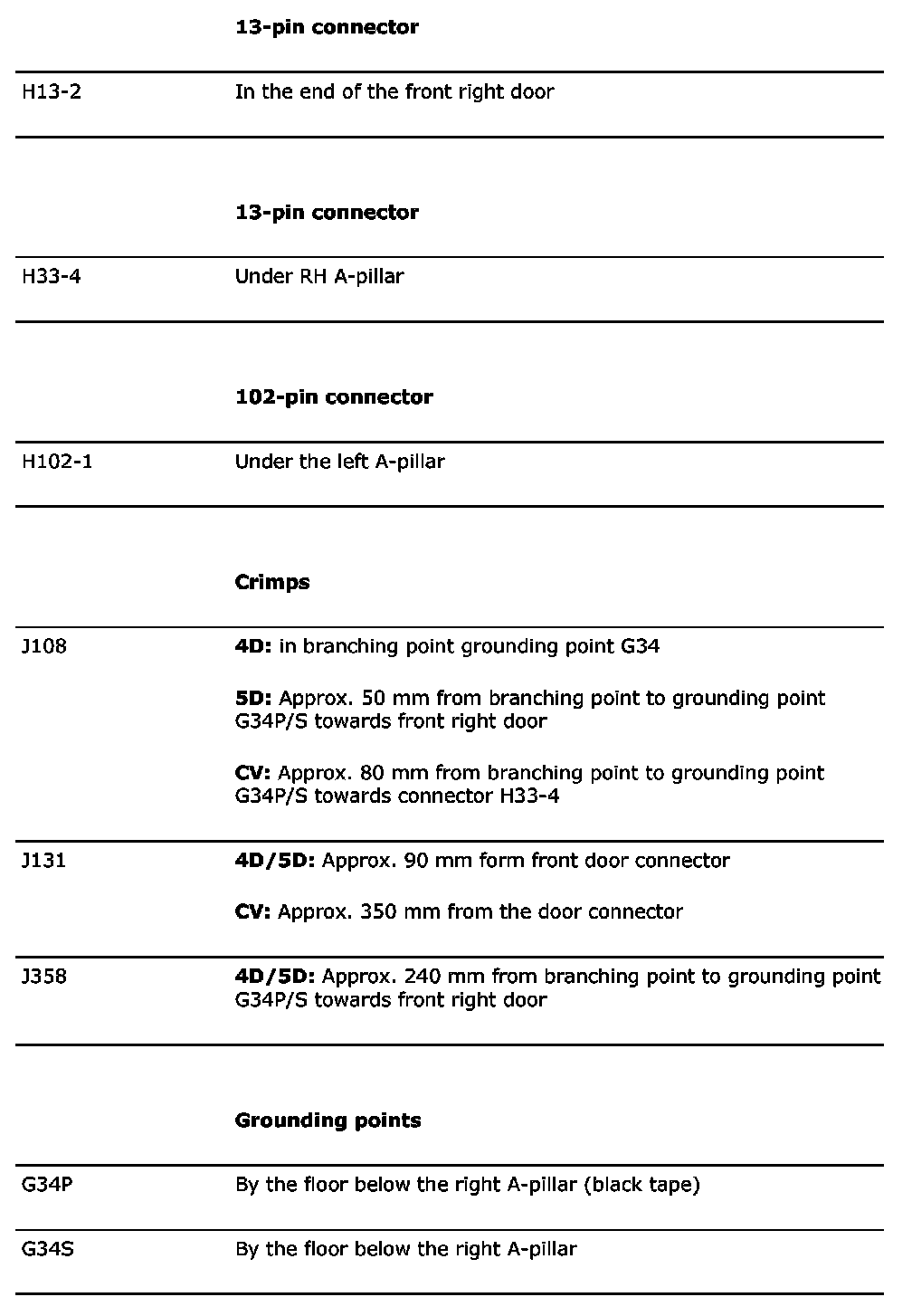

List of Components (Part 2):
