Home
>>
Saab
>>
2008
>>
9-3 (9440) L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Grounds
>>
Grounding Point G4
Grounding Point G4

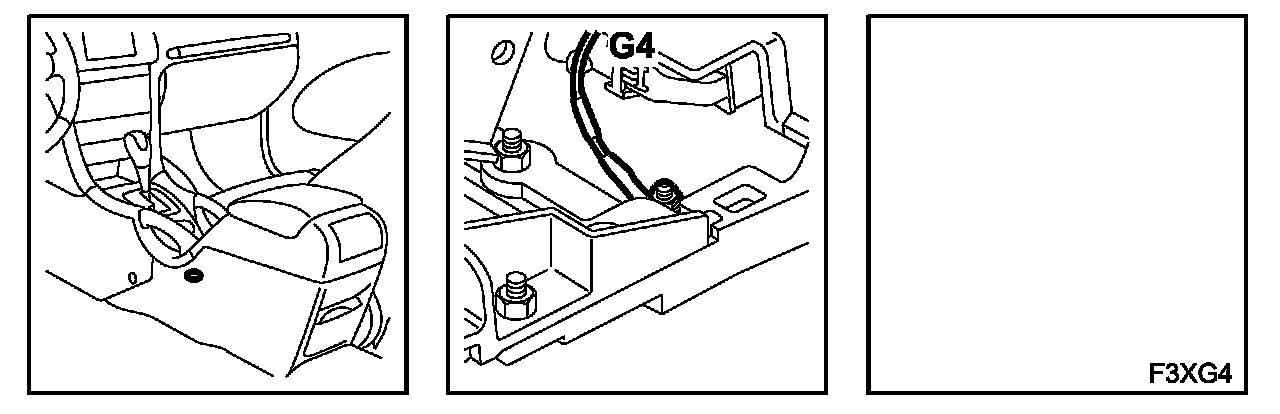

Location:
On the center tunnel

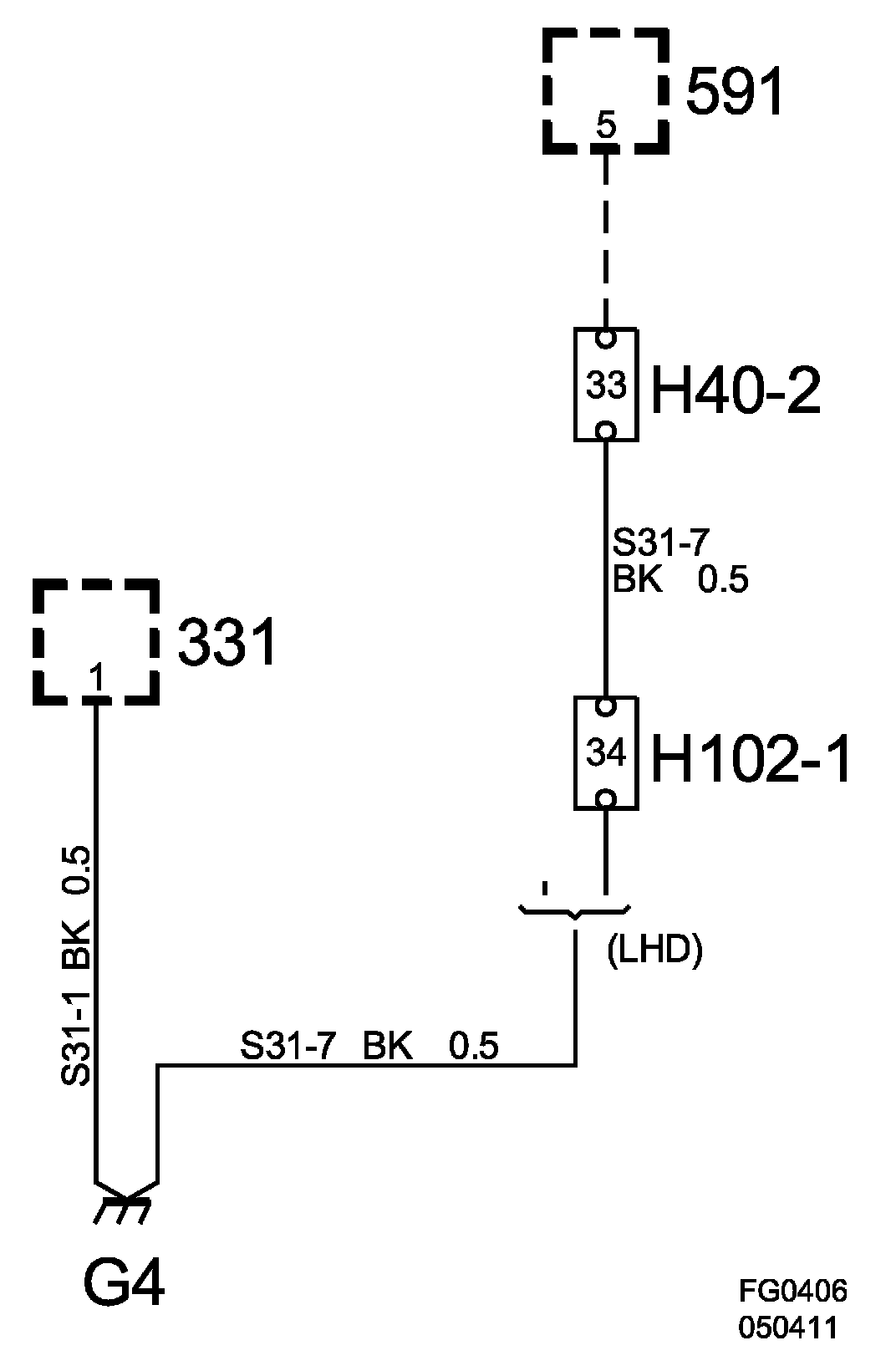

Grounding Point G4:

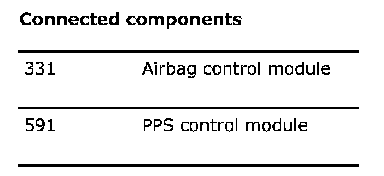

Connected Components:
