Home >> Saab >> 2008 >> 9-3 (9440) L4-2.0L Turbo >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Locations >> Ground Locations >> Grounding Point G30A

Grounding Point G30A

Grounding point G30A

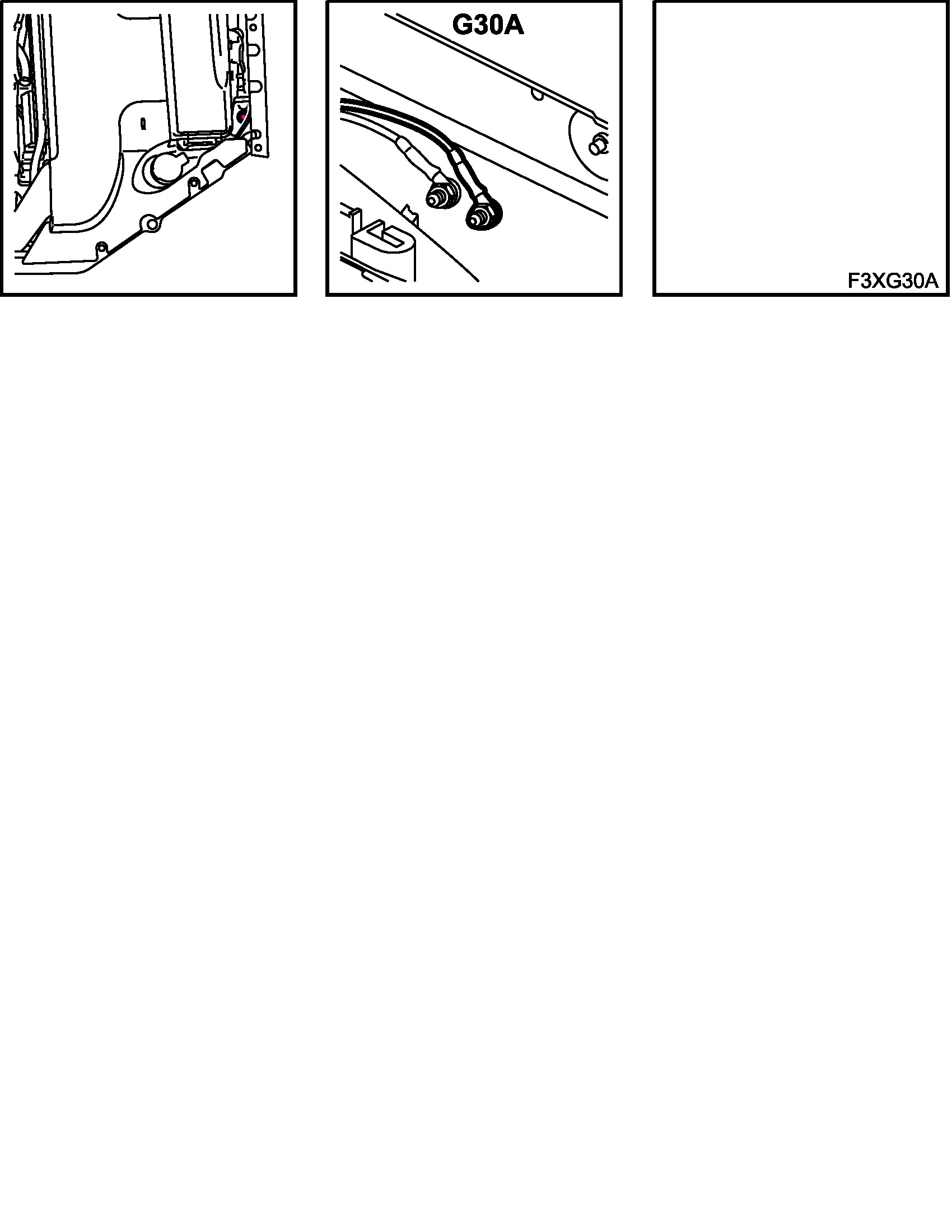

Location: Front grounding point on the side plate above the LH front wheel housing

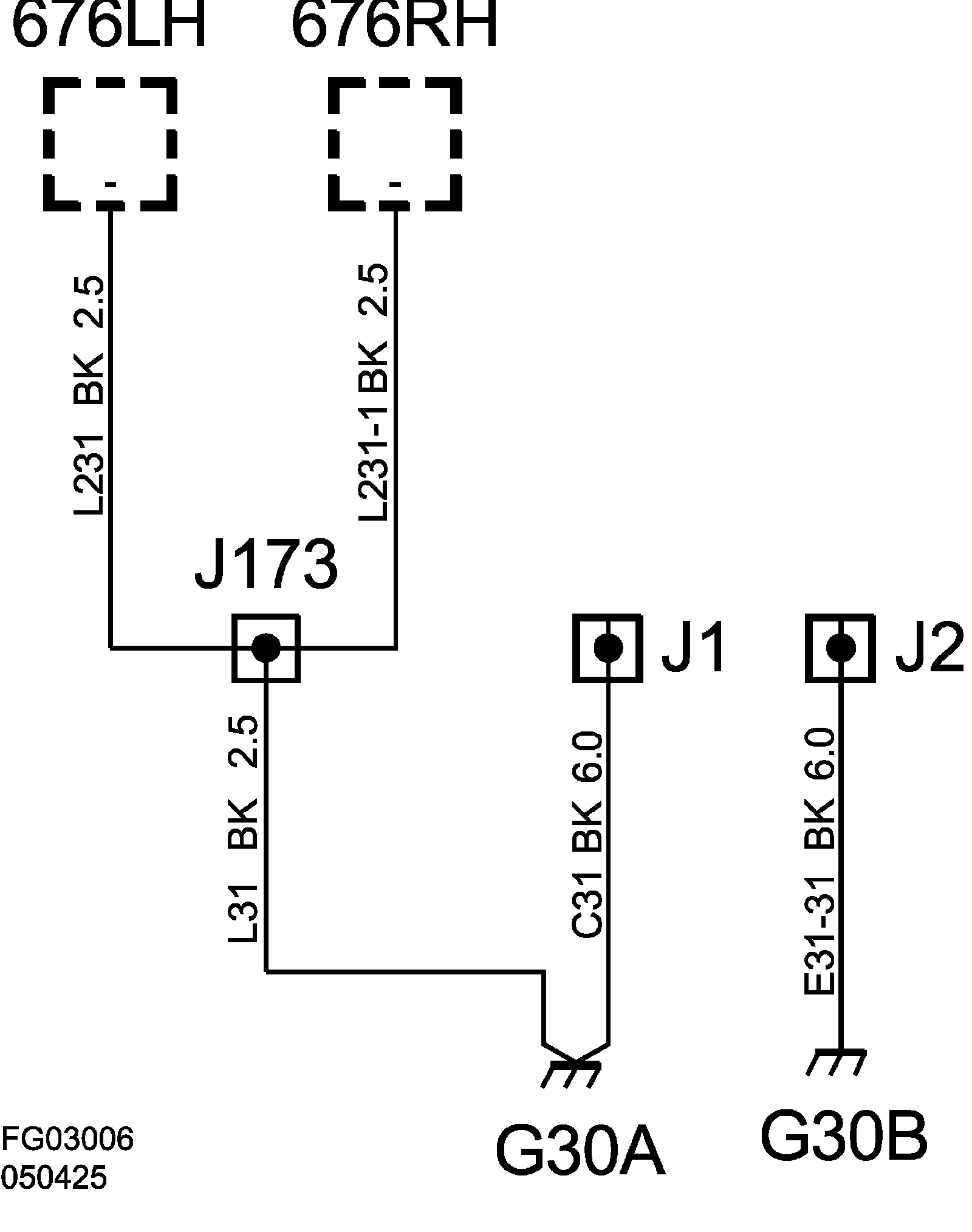

The grounding point is connected to grounding point G31 via crimp 31, the under hood electrical center 342 and crimp 39/312.

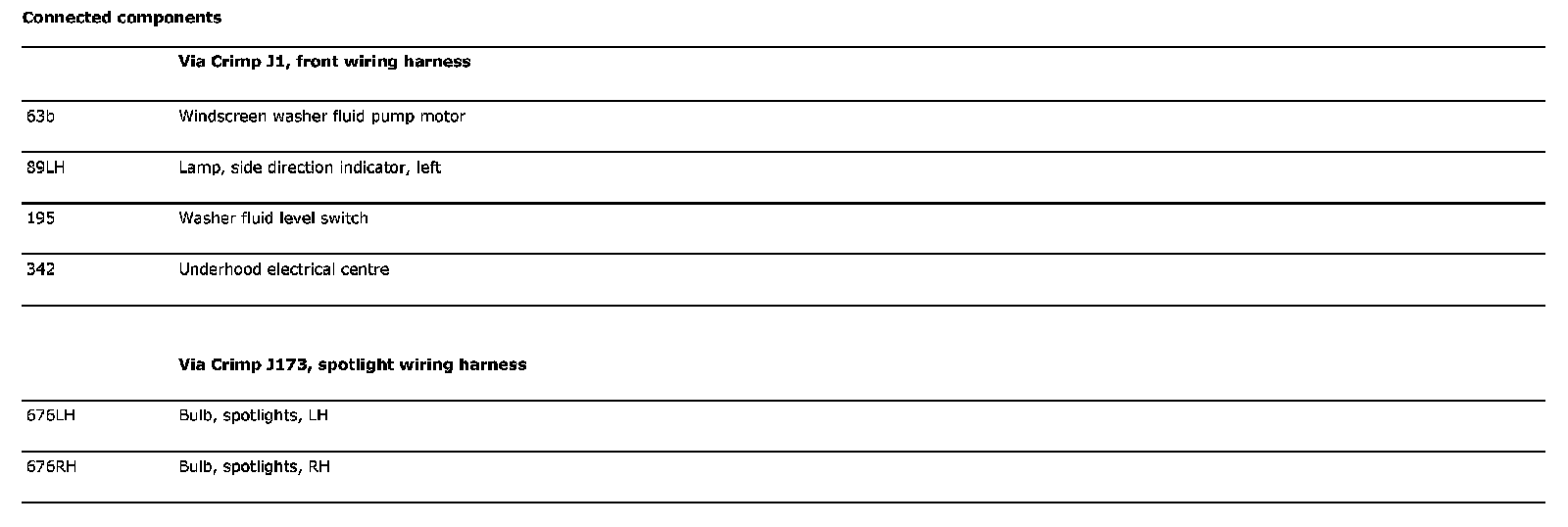

Connected components

Connected Components:
