Grounding Point G25

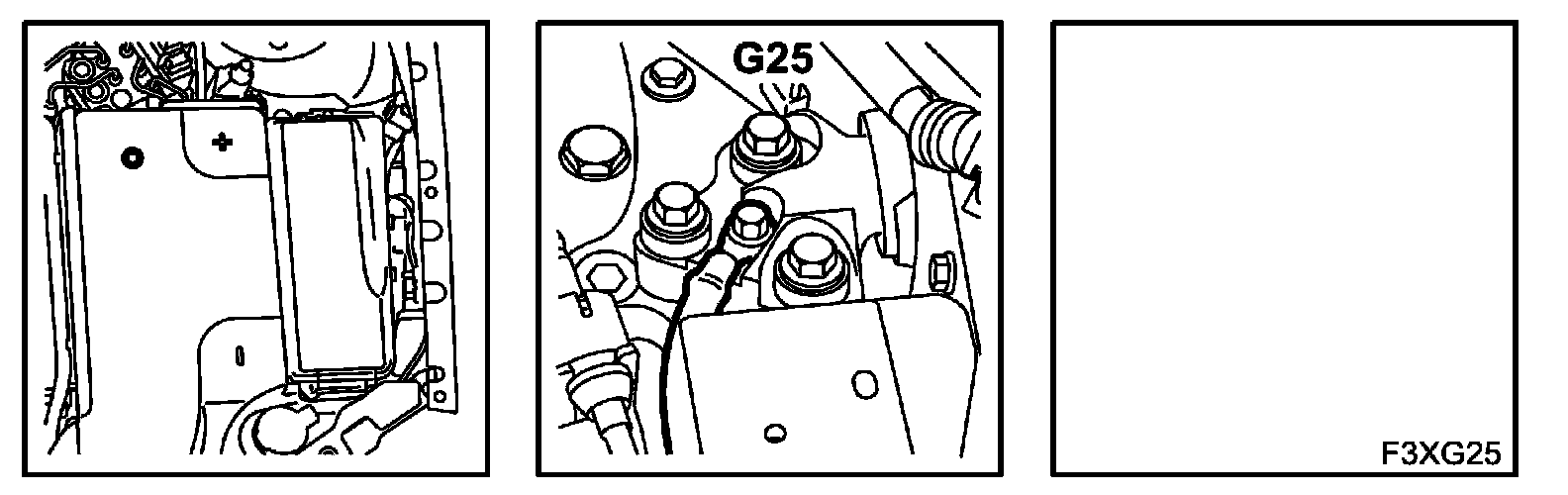

Location:
B284 AUT: On a bracket on the front of the gearbox
Other: On left engine mounting
Grounding Point G25:
Grounding Point G25:

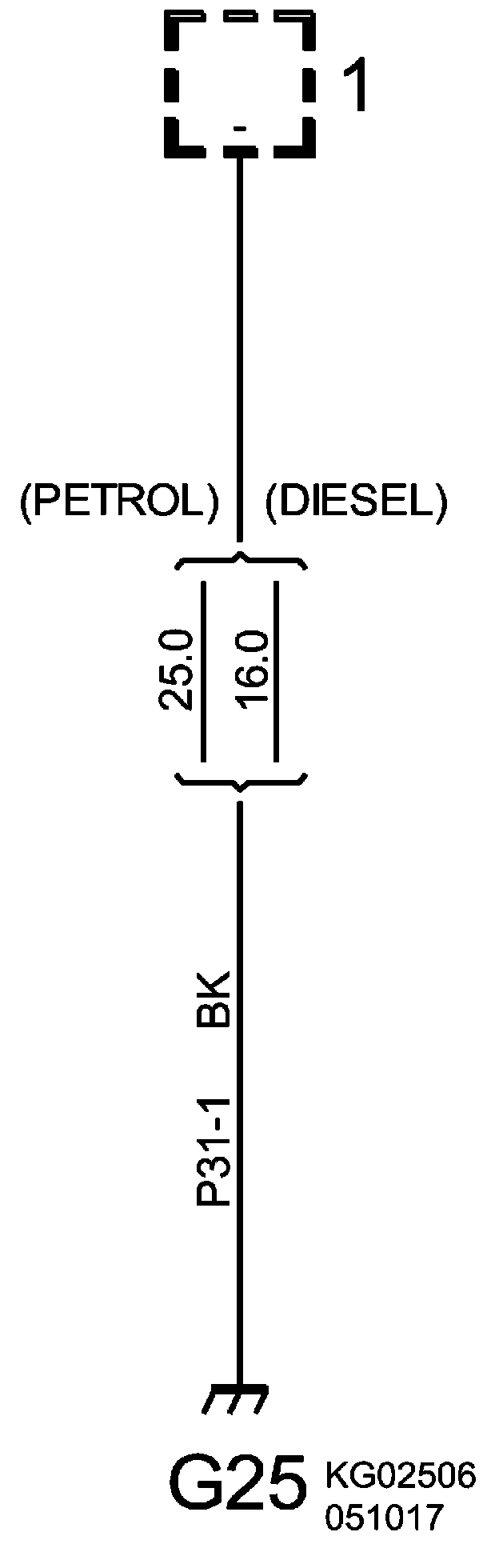

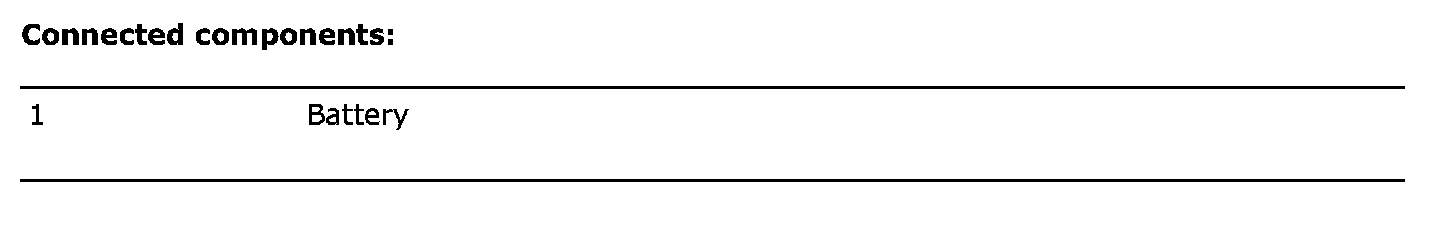

Connected Components:

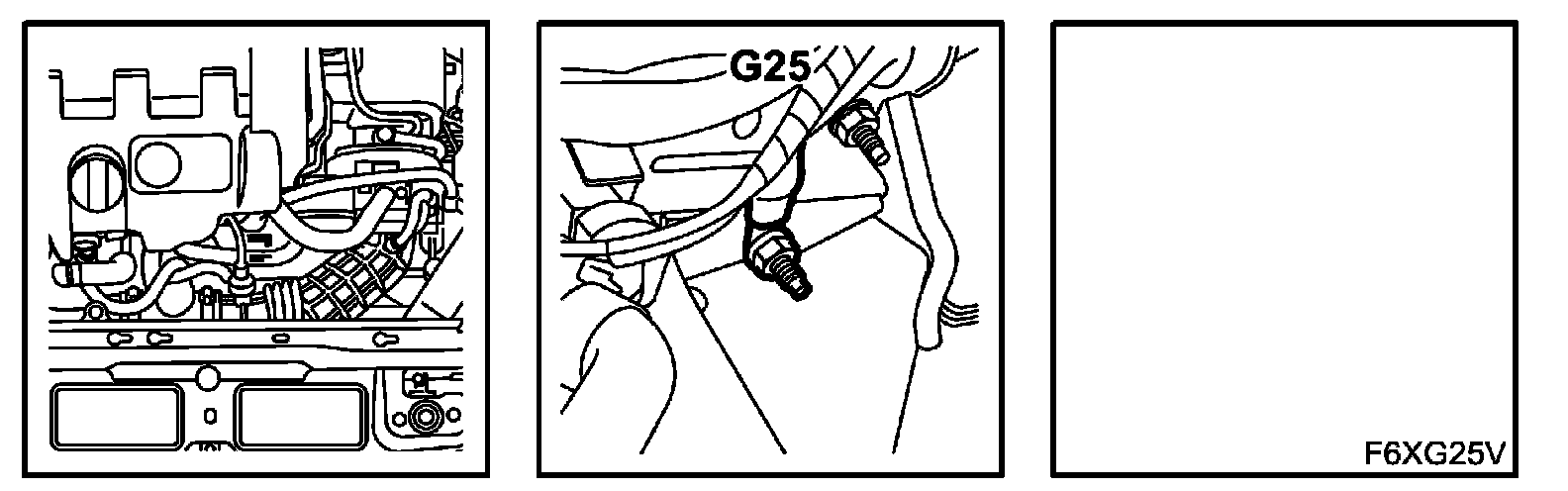

Location:
B284 AUT: On a bracket on the front of the gearbox
Other: On left engine mounting
