Home >> Saab >> 2008 >> 9-3 (9440) L4-2.0L Turbo >> Repair and Diagnosis >> Maintenance >> Fuses and Circuit Breakers >> Fuse >> Diagrams >> Electrical Diagrams >> Engine Bay Electrical Center 342

Engine Bay Electrical Center 342

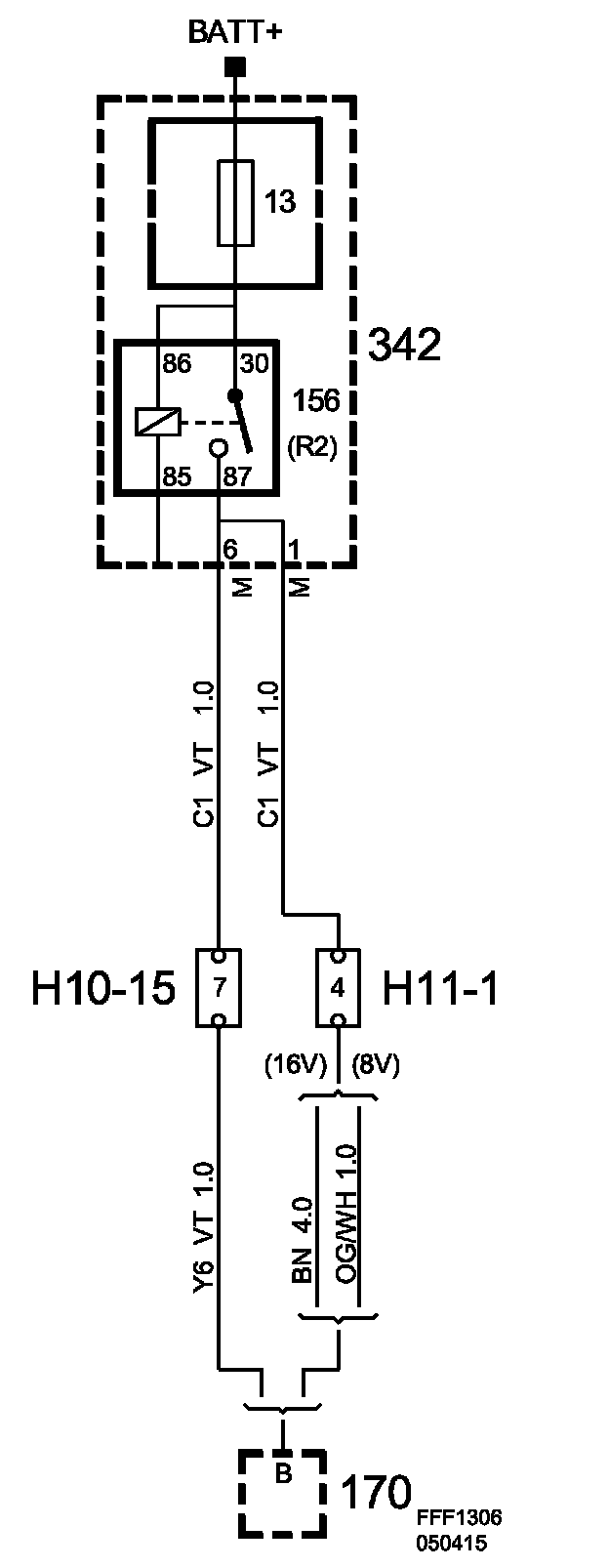

Fuse 13, Engine Bay Electrical Centre 342:

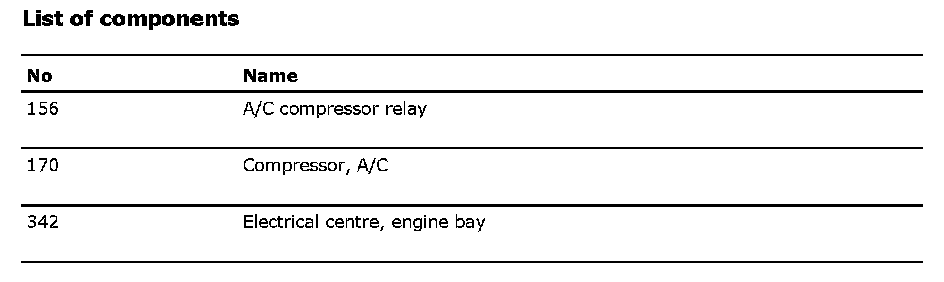

List Of Components:
