Boost Solenoid: Diagrams

Location: on the vacuum box of the turbo unit

B207

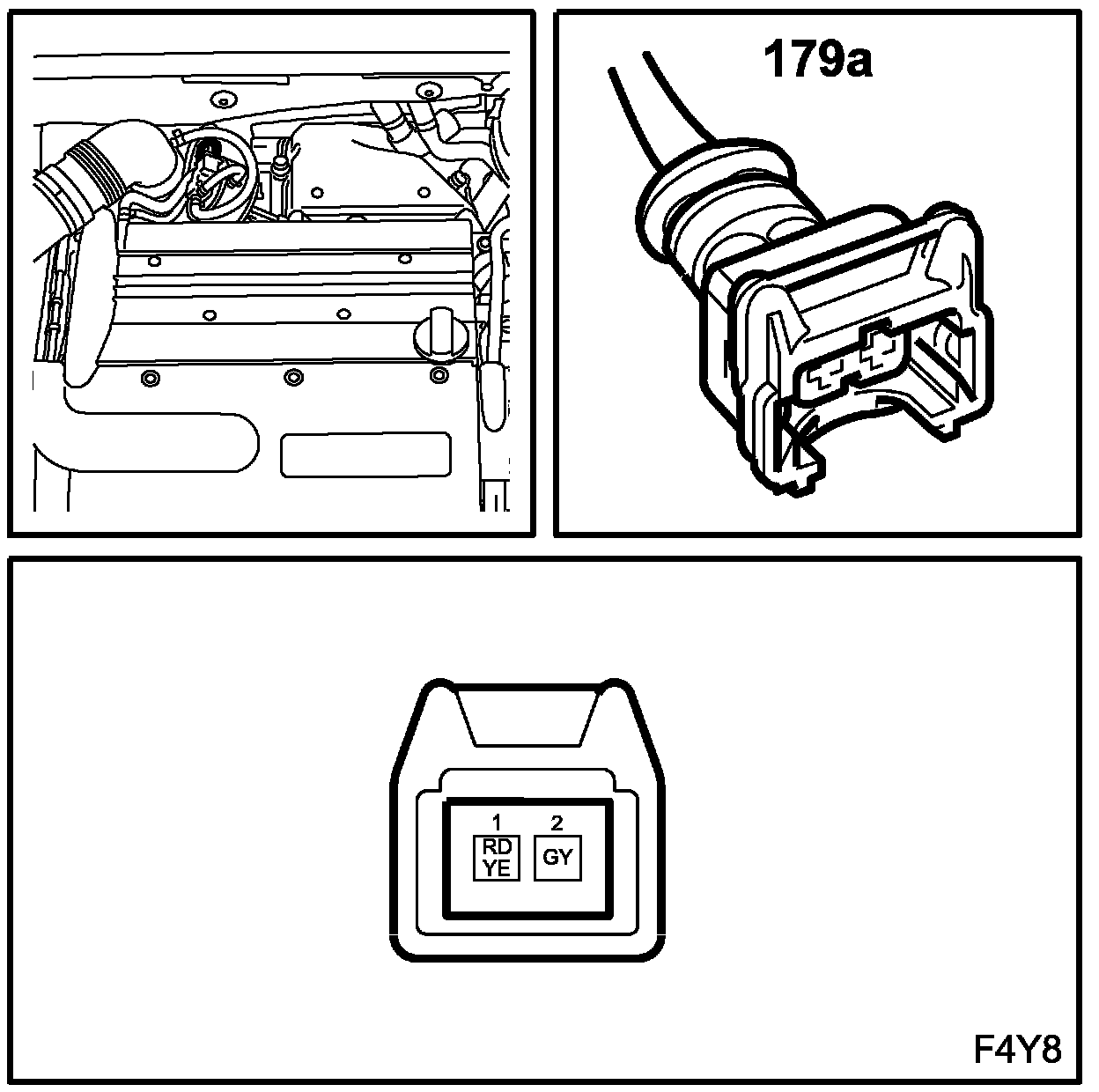

Charge Air Solenoid Valve (179a):
