Home >> Saab >> 2008 >> 9-3 (9440) L4-2.0L Turbo >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Restraints and Safety Systems >> Seat Position Sensor >> Diagrams >> Position Sensor, Height Adjustment, Electrically Operated Driver's Seat With Memory (357Dg)

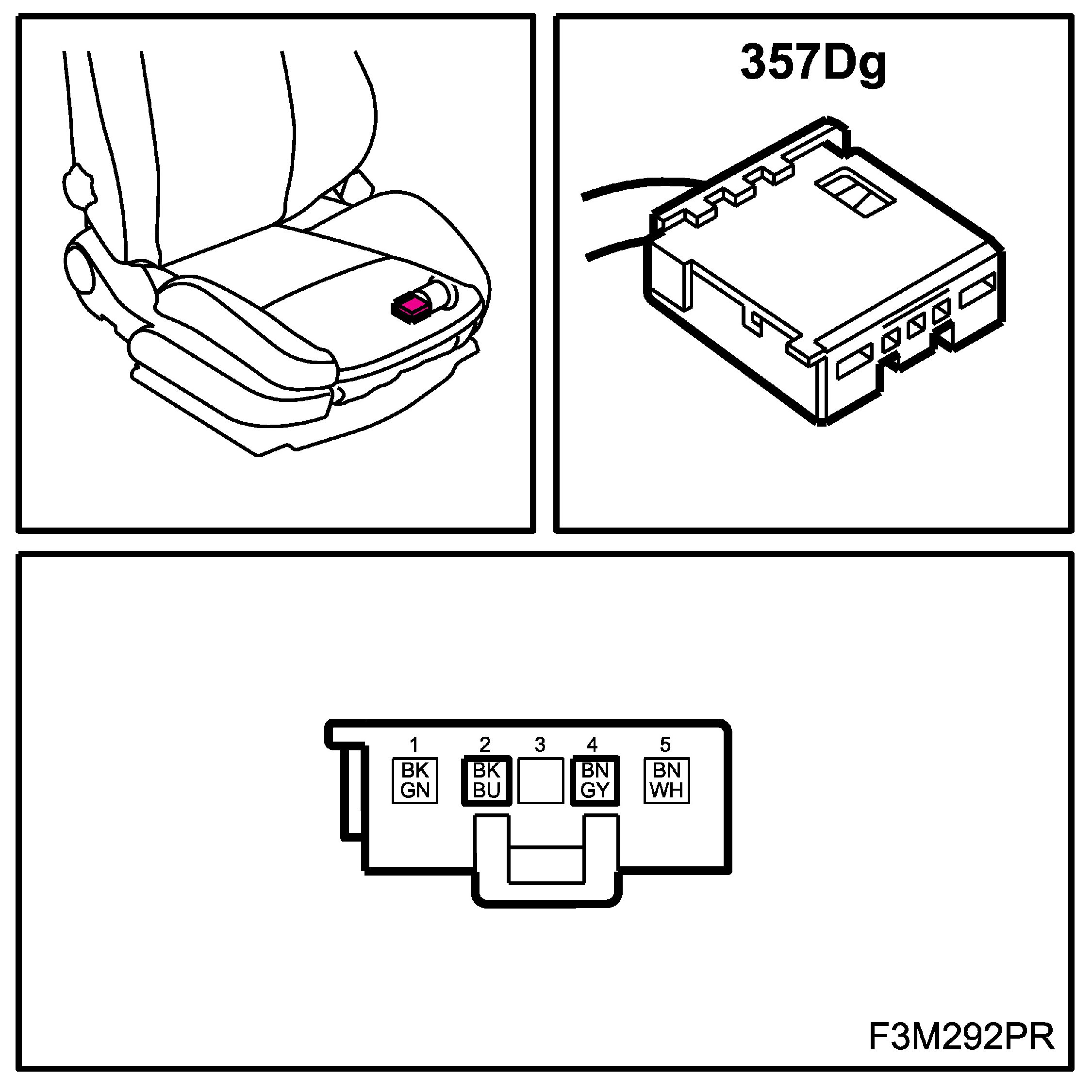

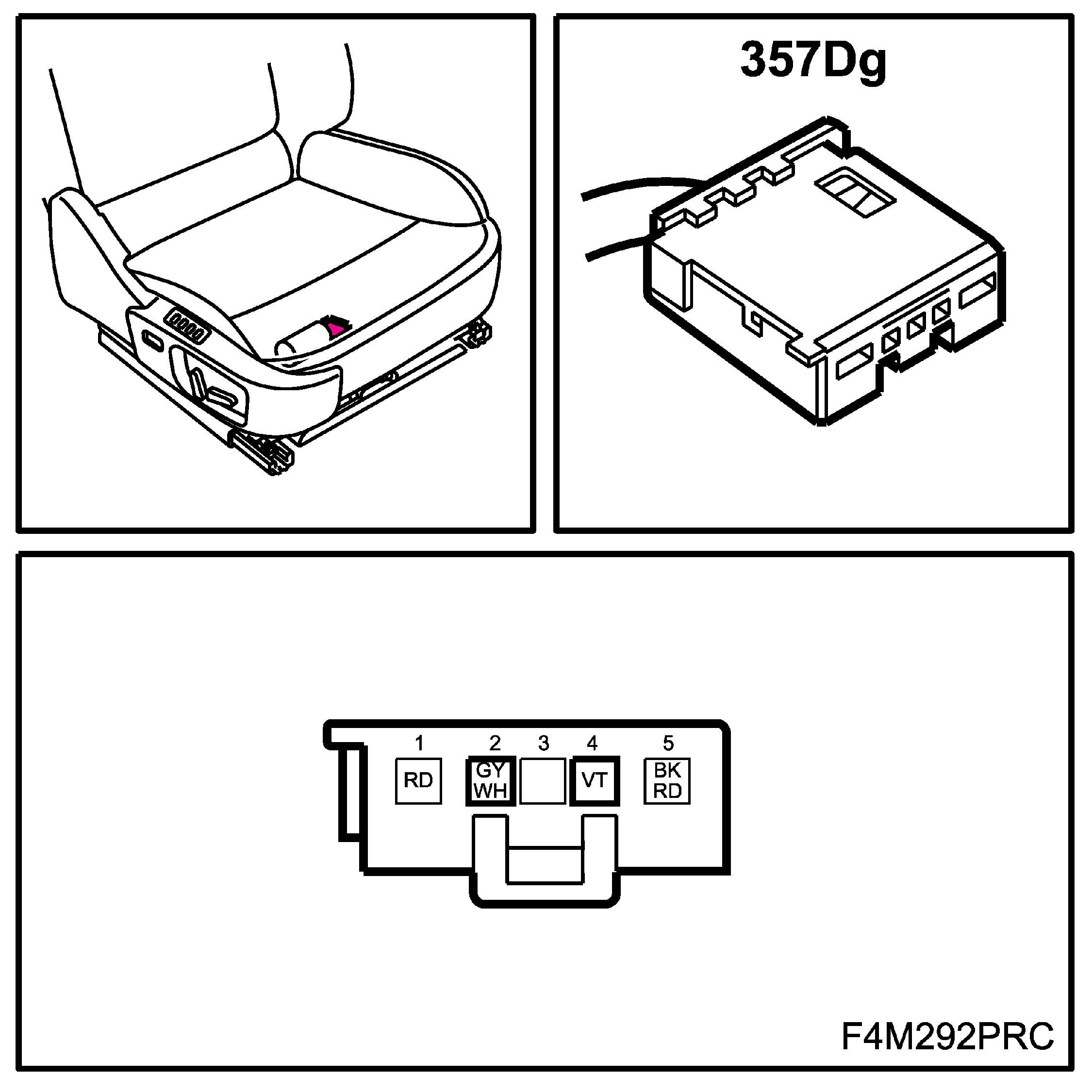

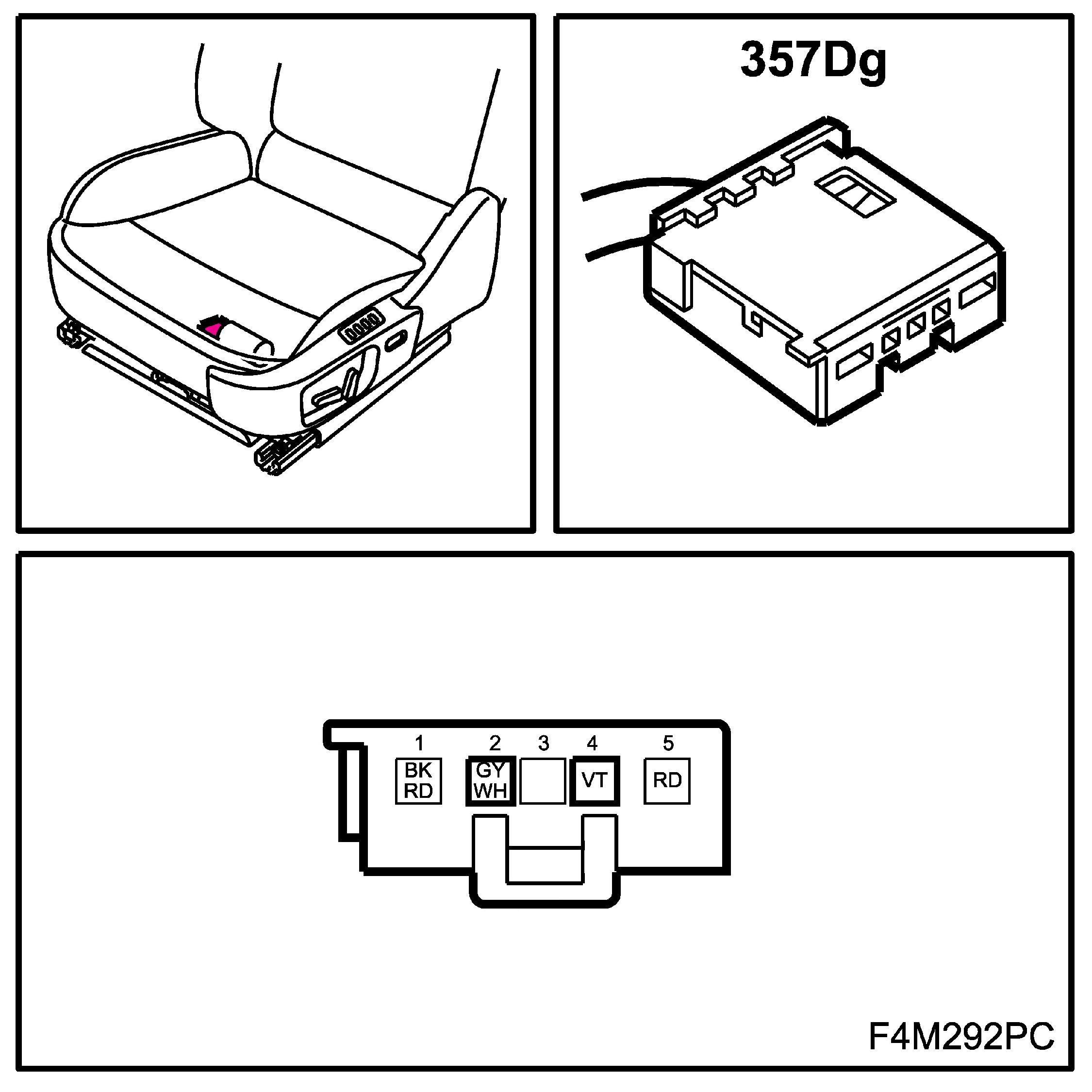

Position Sensor, Height Adjustment, Electrically Operated Driver's Seat With Memory (357Dg)



Position Sensor, Height Adjustment, Electrically Operated Driver's Seat With Memory (357Dg)

Location: on the motor shaft

4D LH







4D RH







CV LH







CV RH
