Diesel Data: Automotive Repair
Home >> Saab >> 2008 >> 9-3 (9440) V6-2.8L Turbo >> Repair and Diagnosis >> Body and Frame >> Locks >> Description and Operation >> Central Locking System, Bus Information

Central Locking System, Bus Information

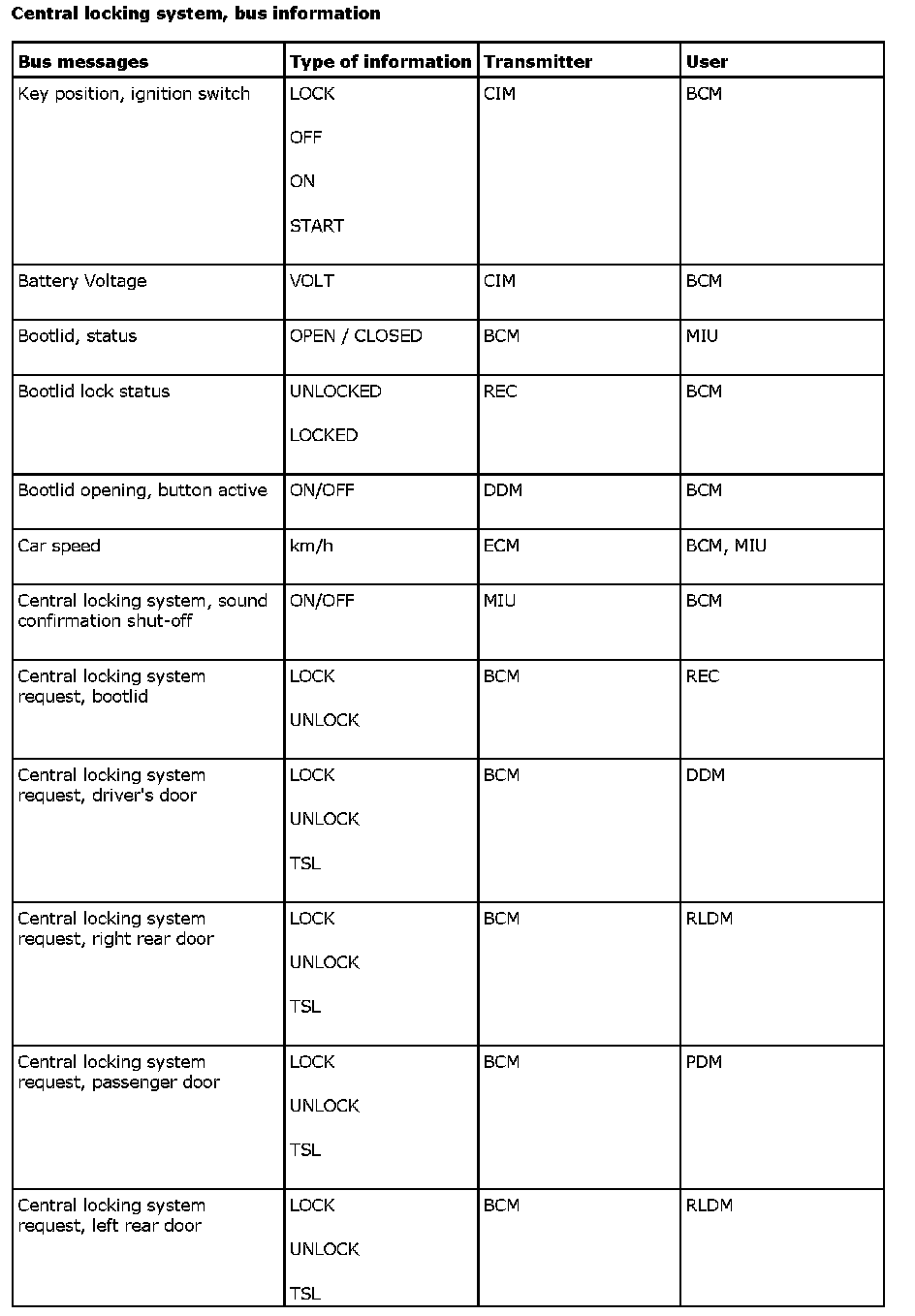

Central Locking System, Bus Information (Part 1):

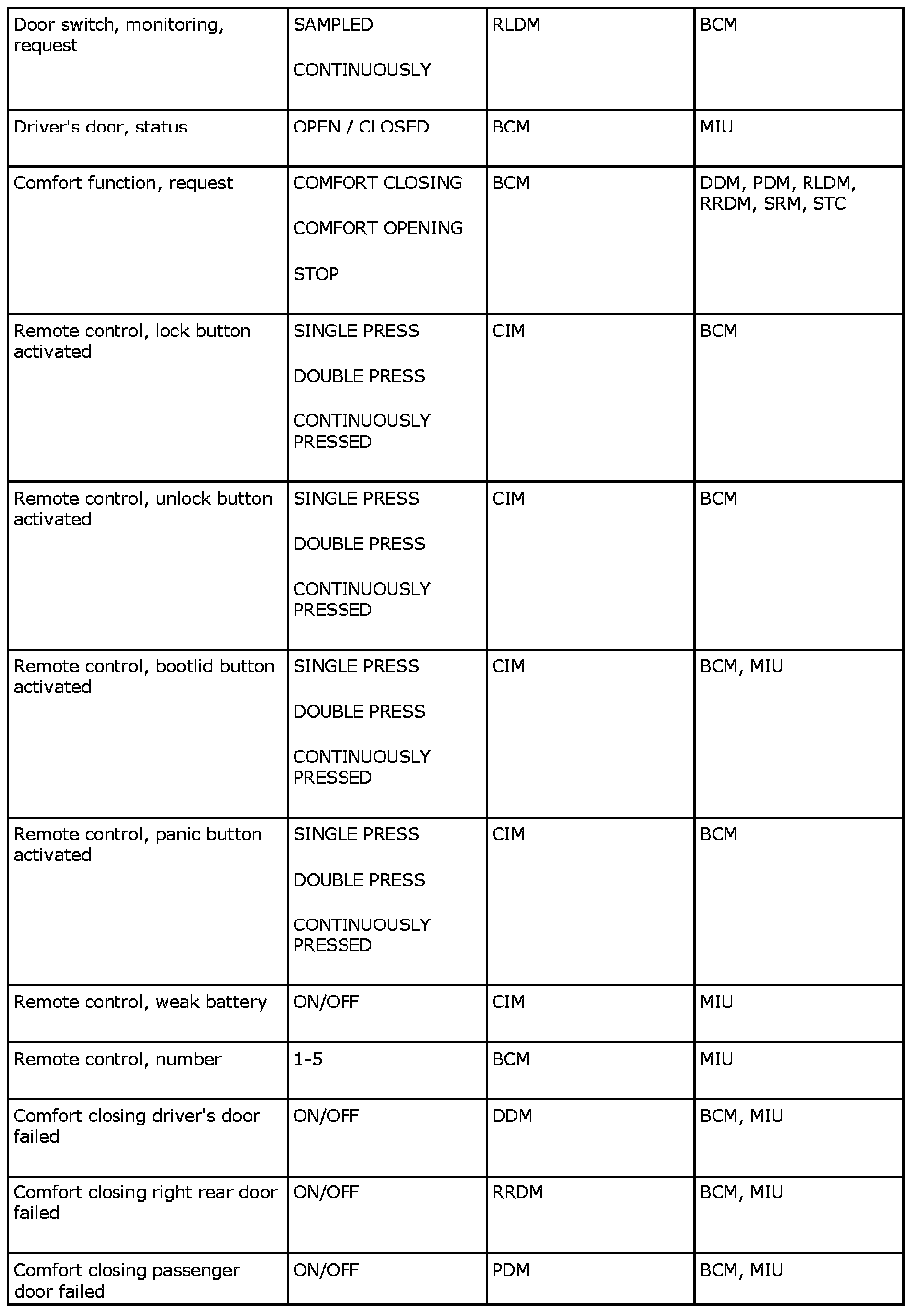

Central Locking System, Bus Information (Part 2):

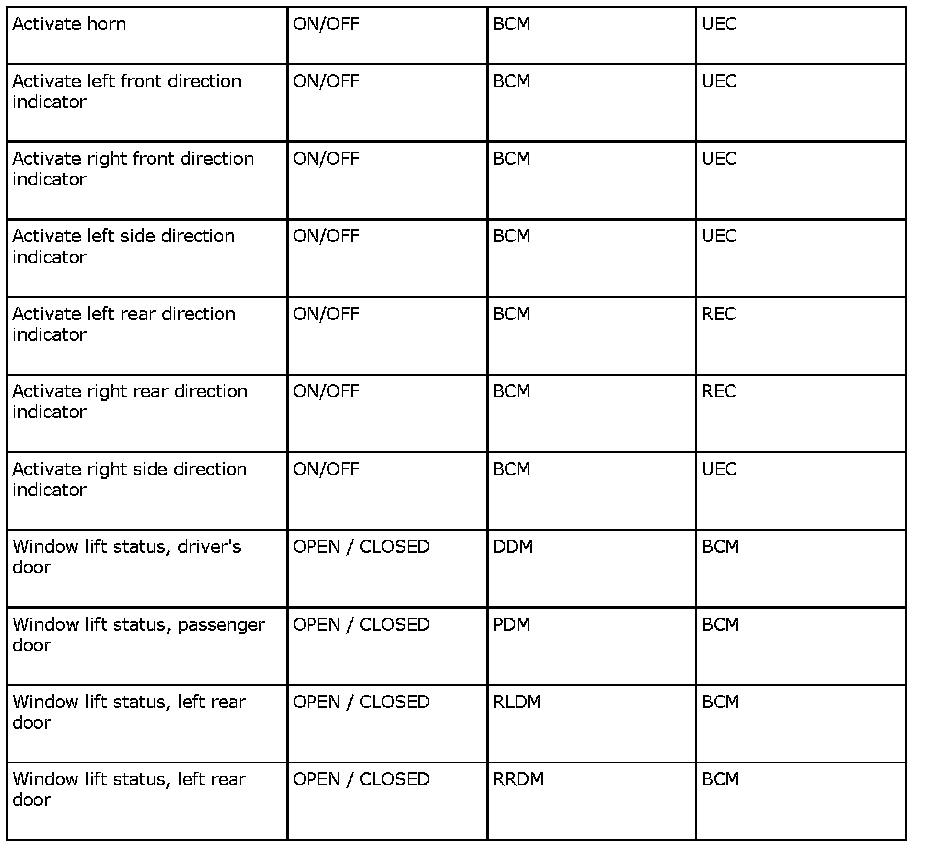

Central Locking System, Bus Information (Part 3):

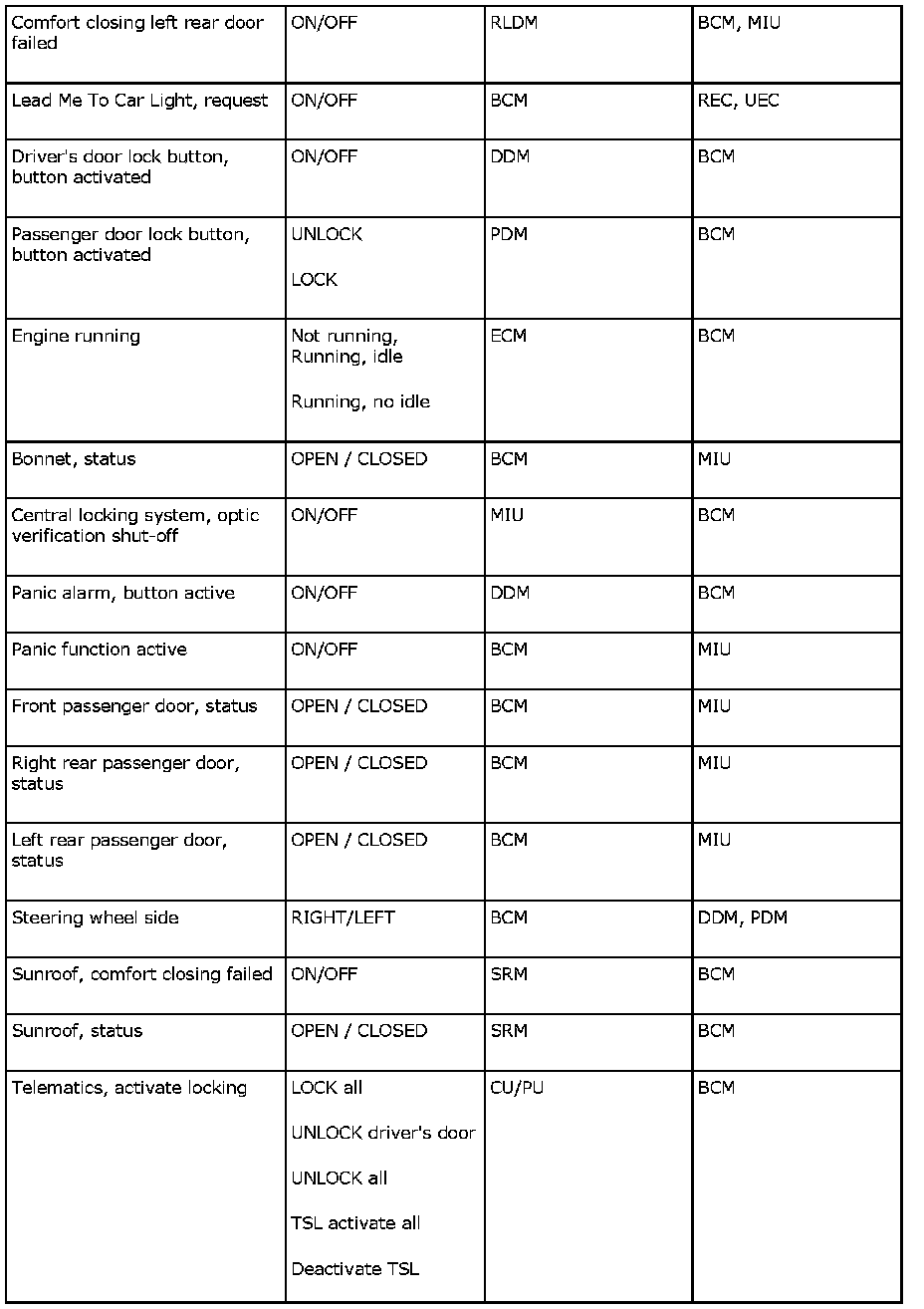

Central Locking System, Bus Information (Part 4):
