Canister Purge Control Valve
Canister Purge Control Valve

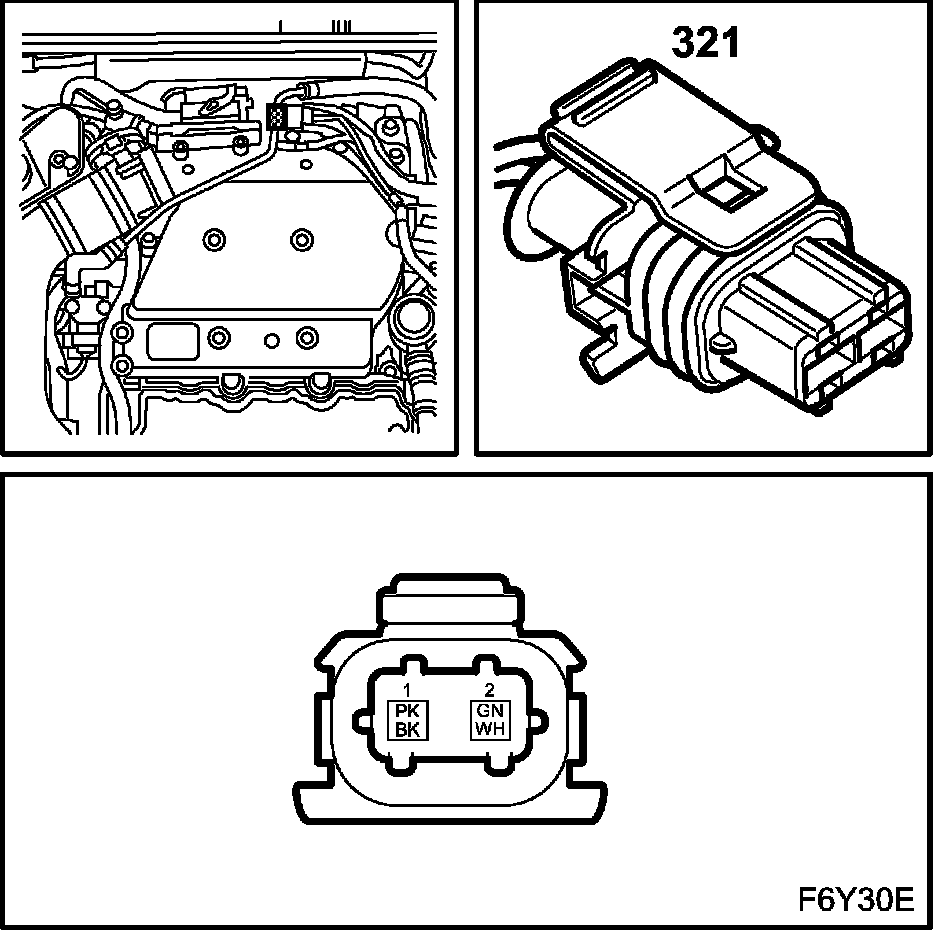

EVAP Canister Purge Valve (321)
Location: On rear cylinder bank below connector H7-1.
