Motor, Air Mixing Damper, Right (222RH)

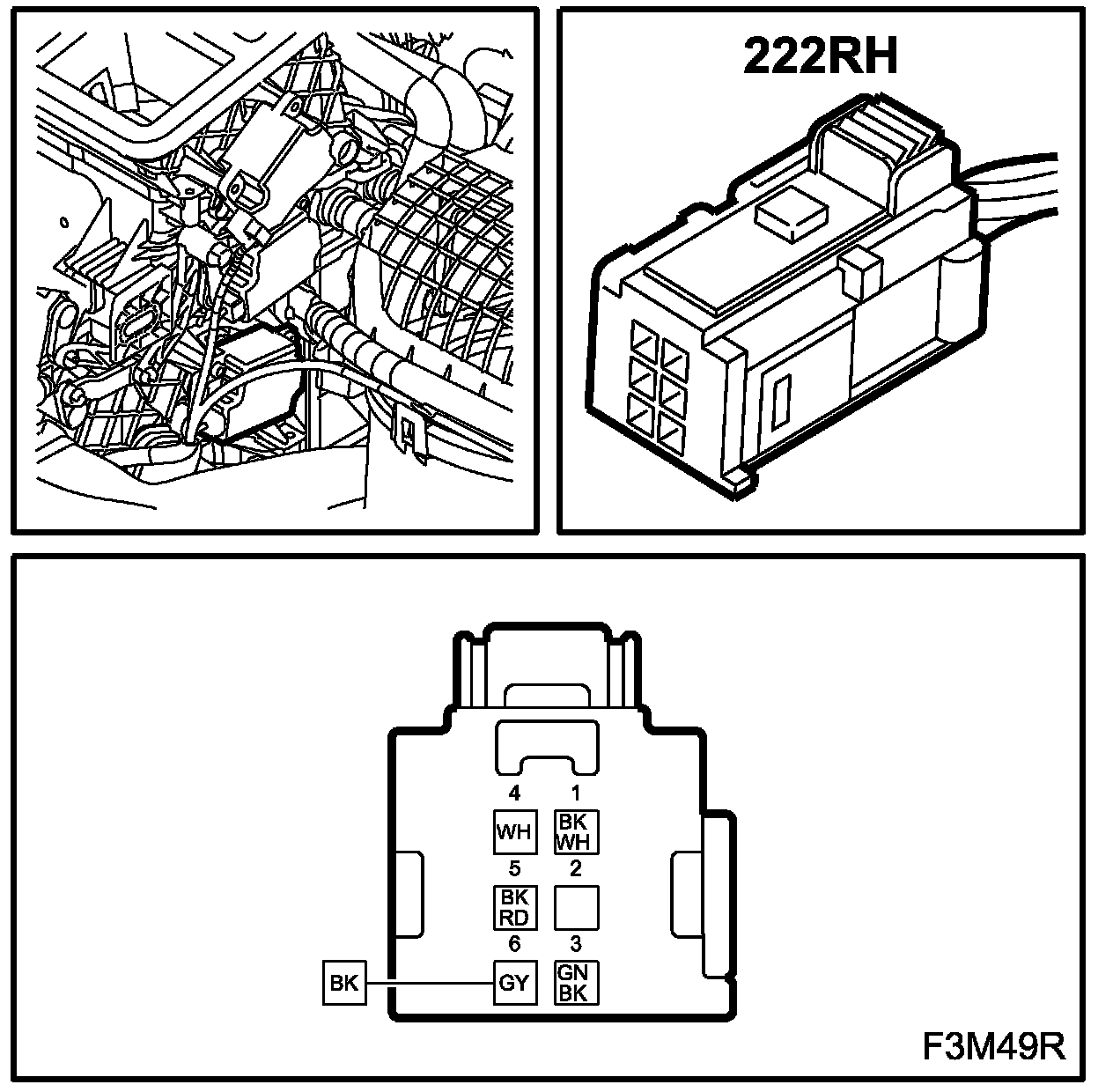

Motor, Air Mixing Damper, Right (222RH)
Location:
lower motor on the RH side of the heating and ventilation unit
Motor, Air Mixing Damper, Right (222RH):
