Saab
>>
2008
>>
9-3 (9440) V6-2.8L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heating and Air Conditioning
>>
Control Module HVAC
Control Module HVAC

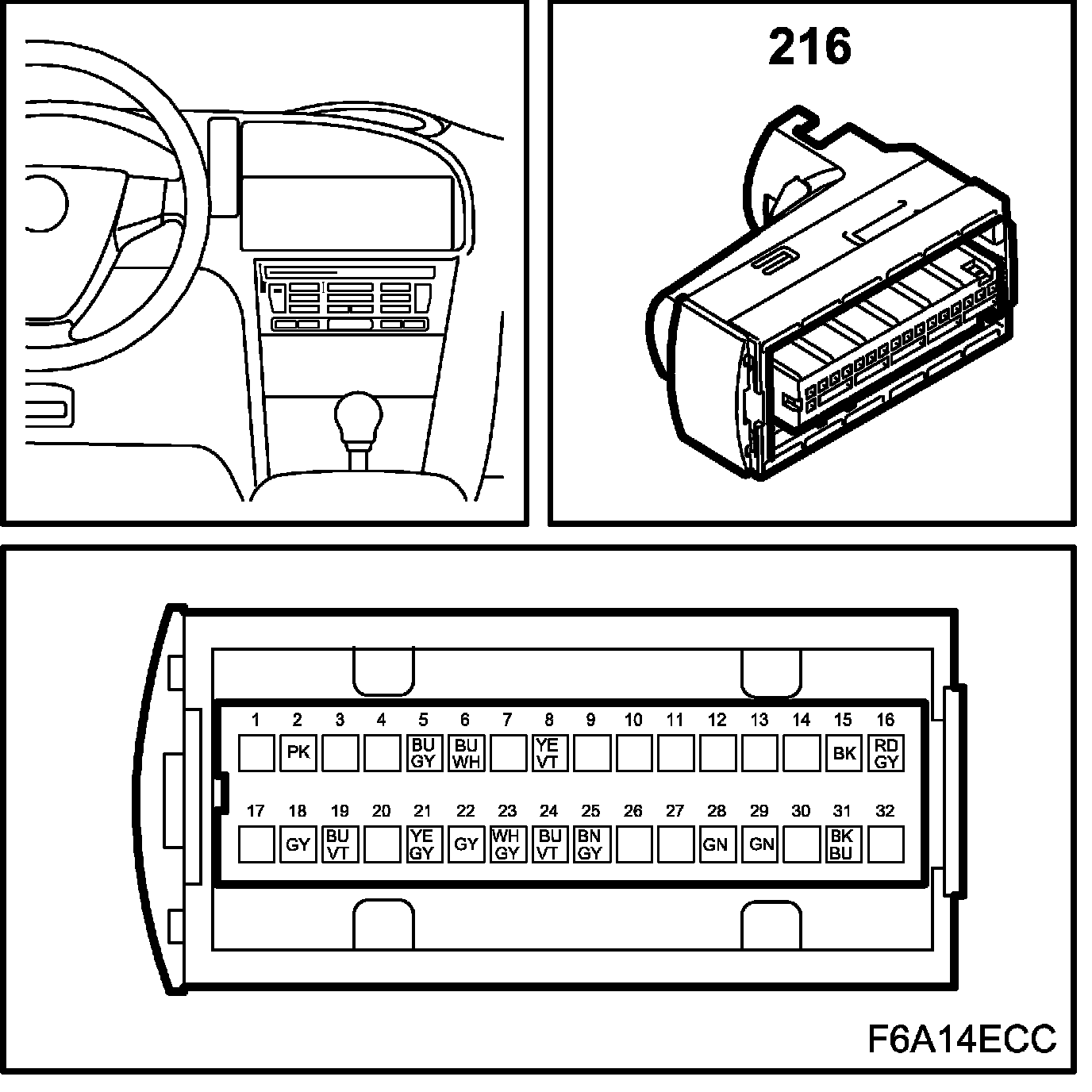

Location:
in the center of the dashboard
Automatic Climate Control (216):
