Motor, Height Adjustment, Electrically Operated Seat (357c)



Motor, Height Adjustment, Electrically Operated Seat (357c)

Location: in the seat under the seat cushion

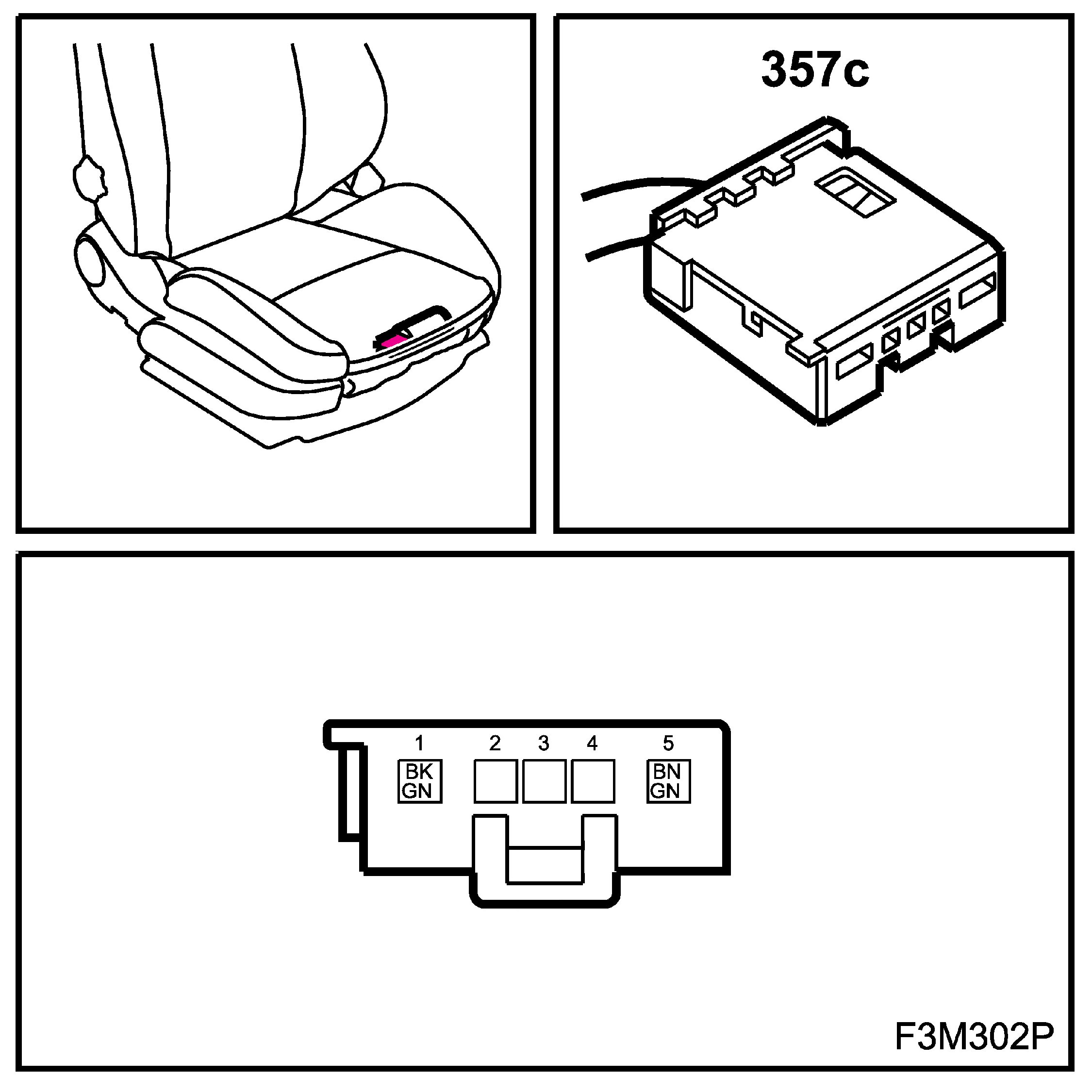

4D LH

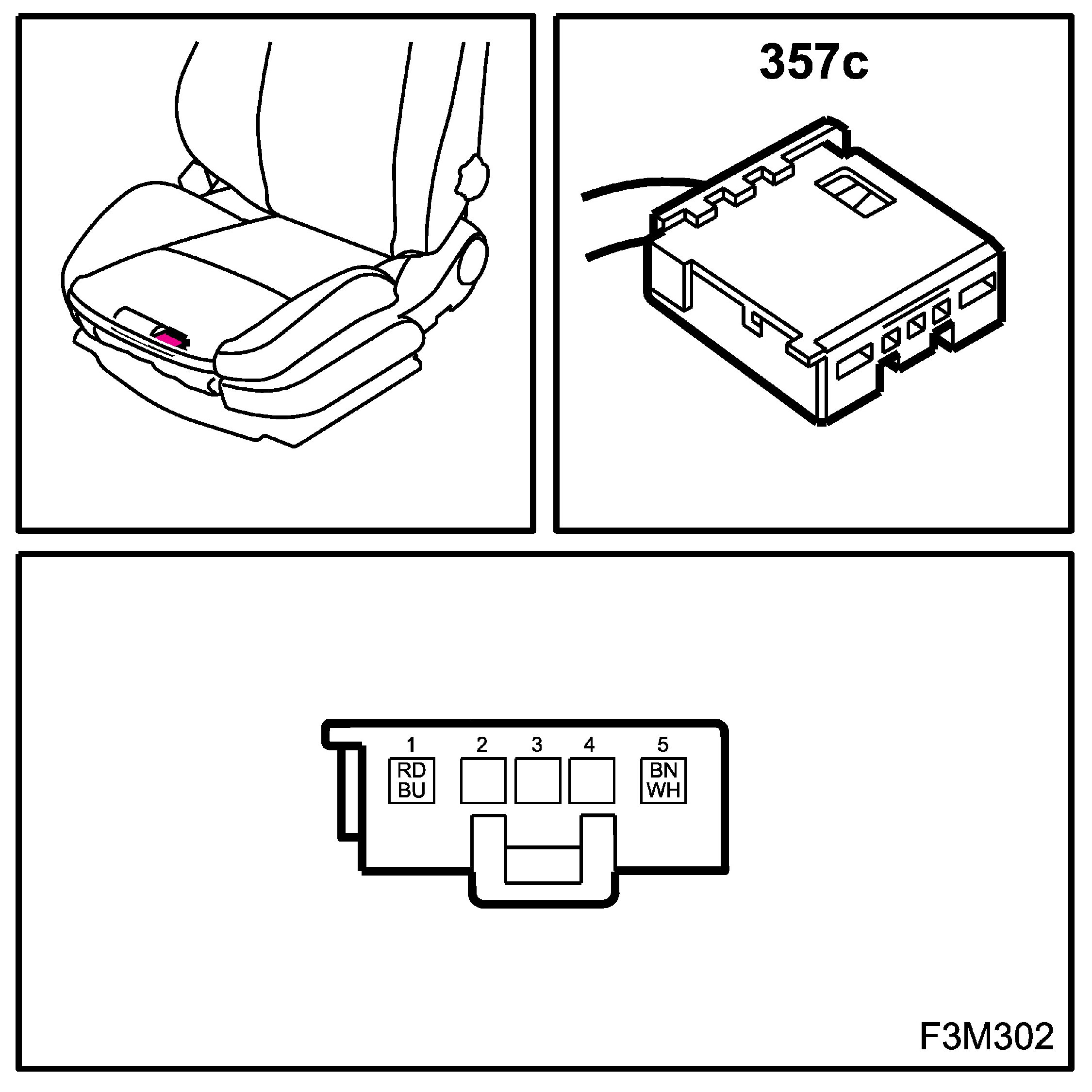

4D RH

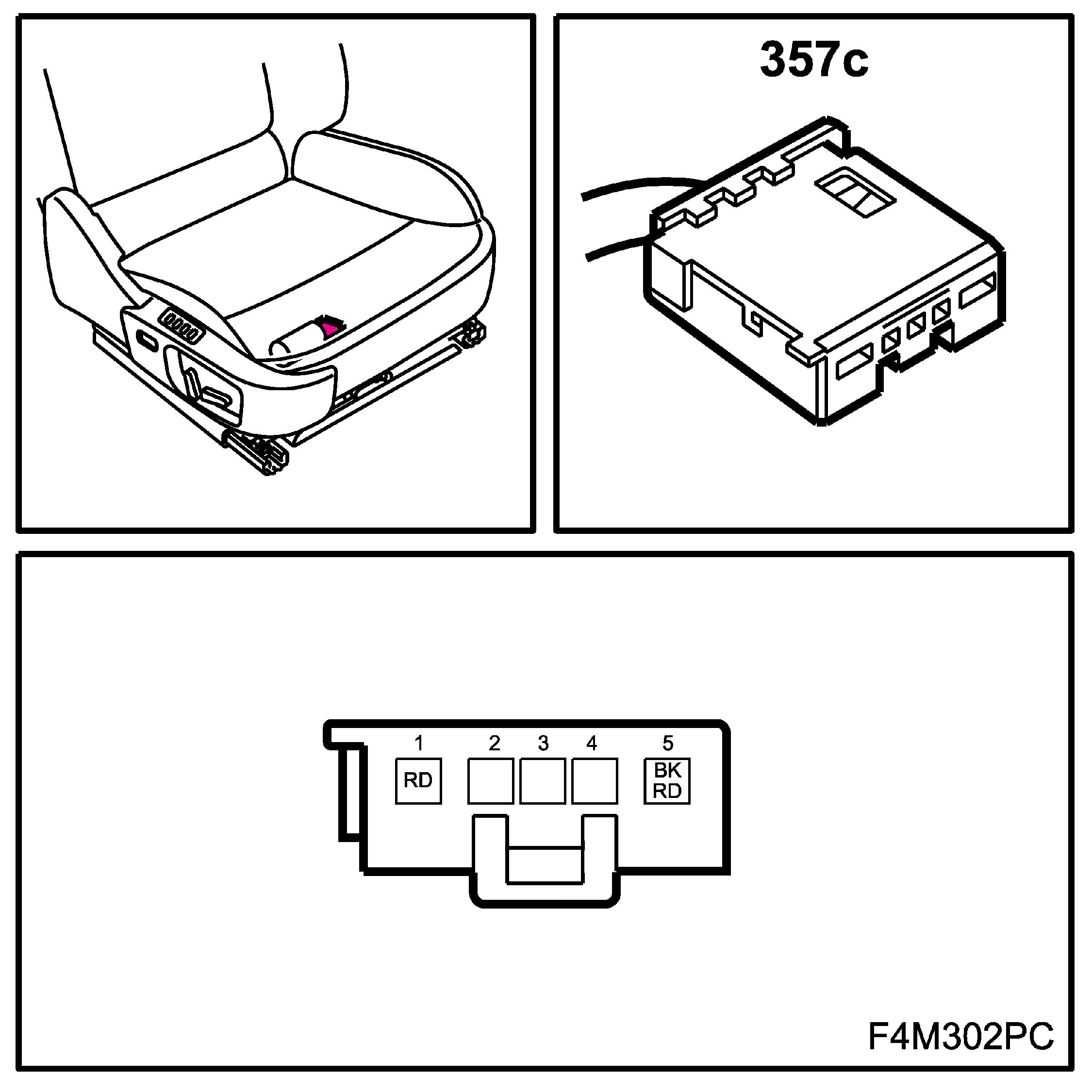

CV LH

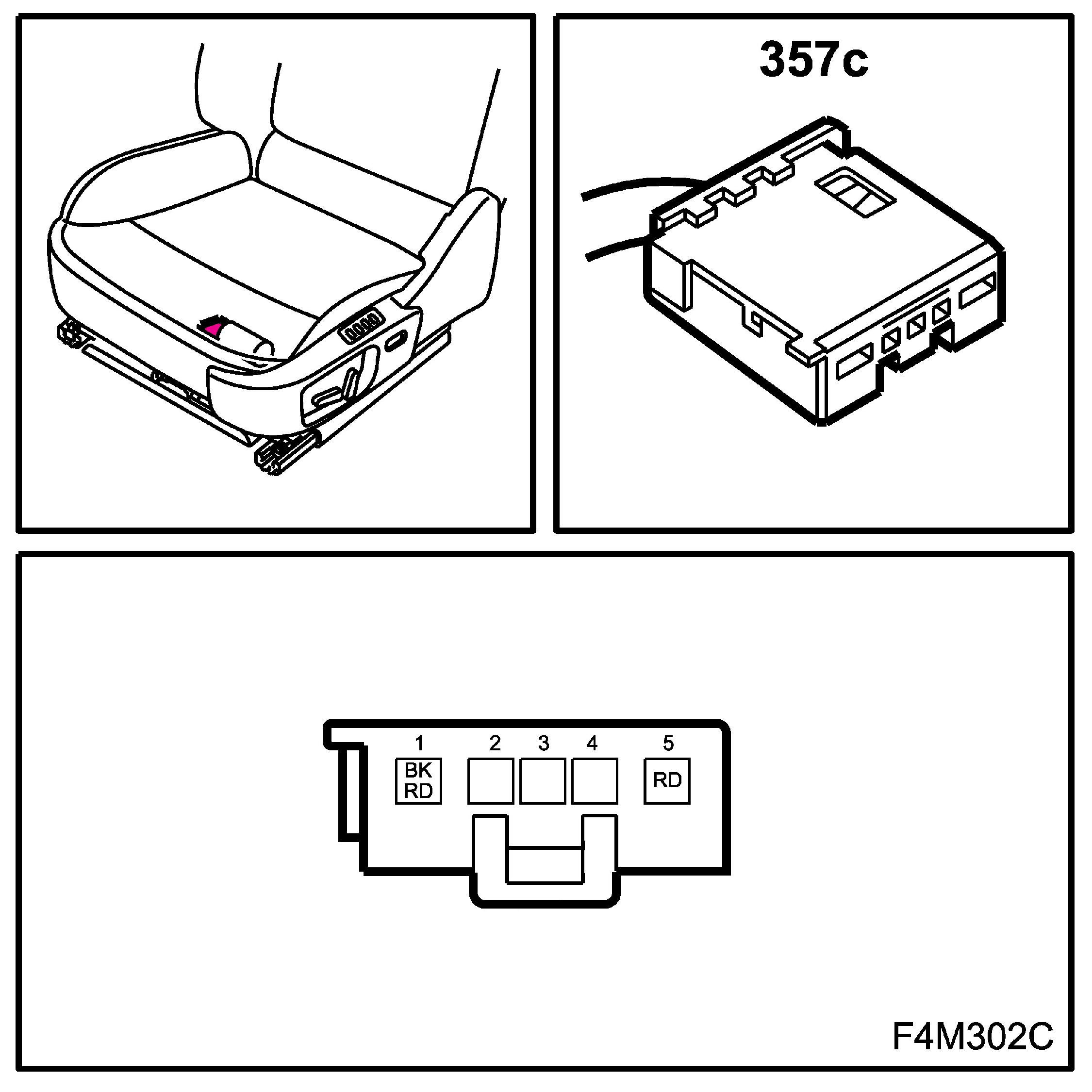

CV RH
