Diesel Data
: Automotive Repair
Home
>>
Saab
>>
2008
>>
9-3 (9440) V6-2.8L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
Amplifier, Sound System
>>

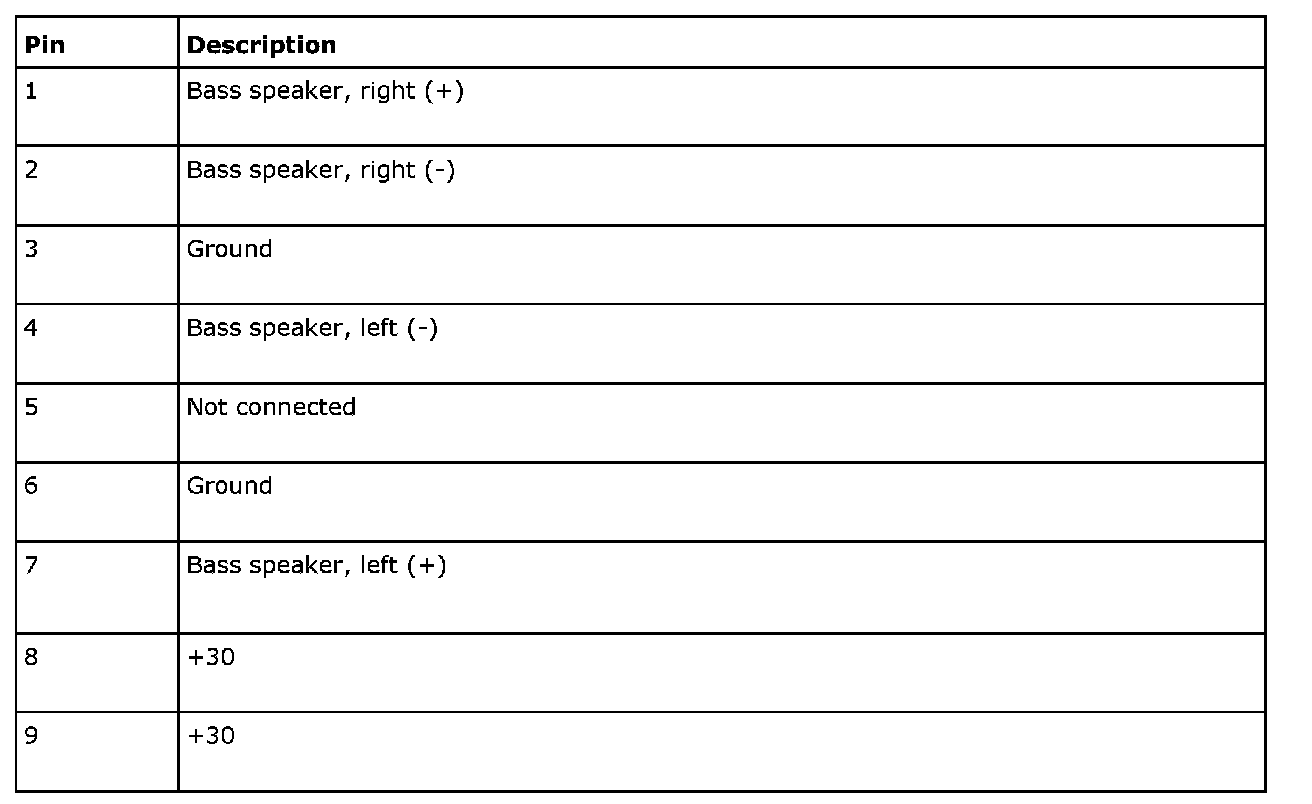

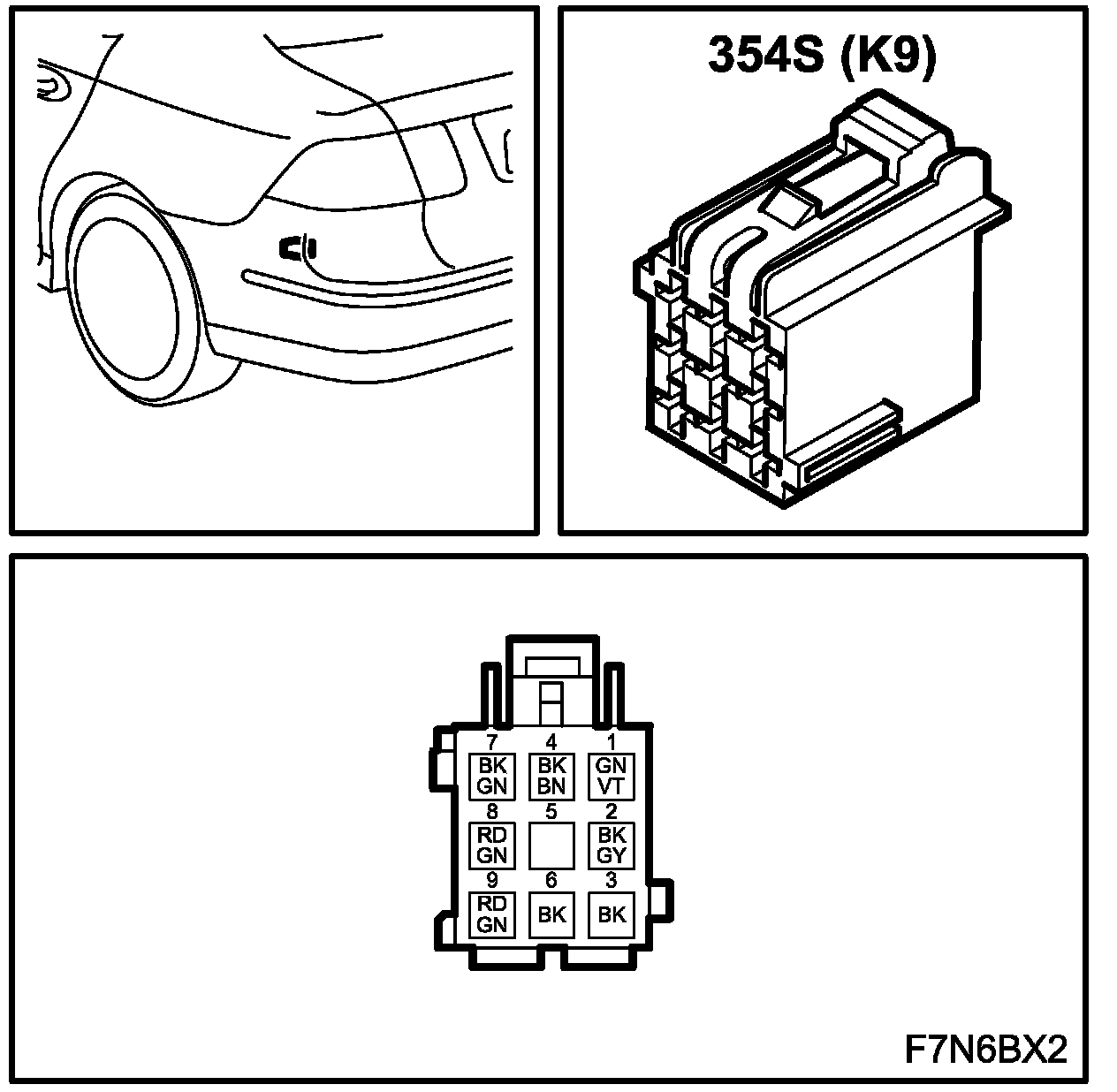

Bass Speaker Amplifier (354S), K9
Bass Speaker Amplifier (354S), K9
Bass Speaker Amplifier (354S), K9:
