Seat Temperature Element
>>
Heating Pad, Backrest (64b)
Heating Pad, Backrest (64b)

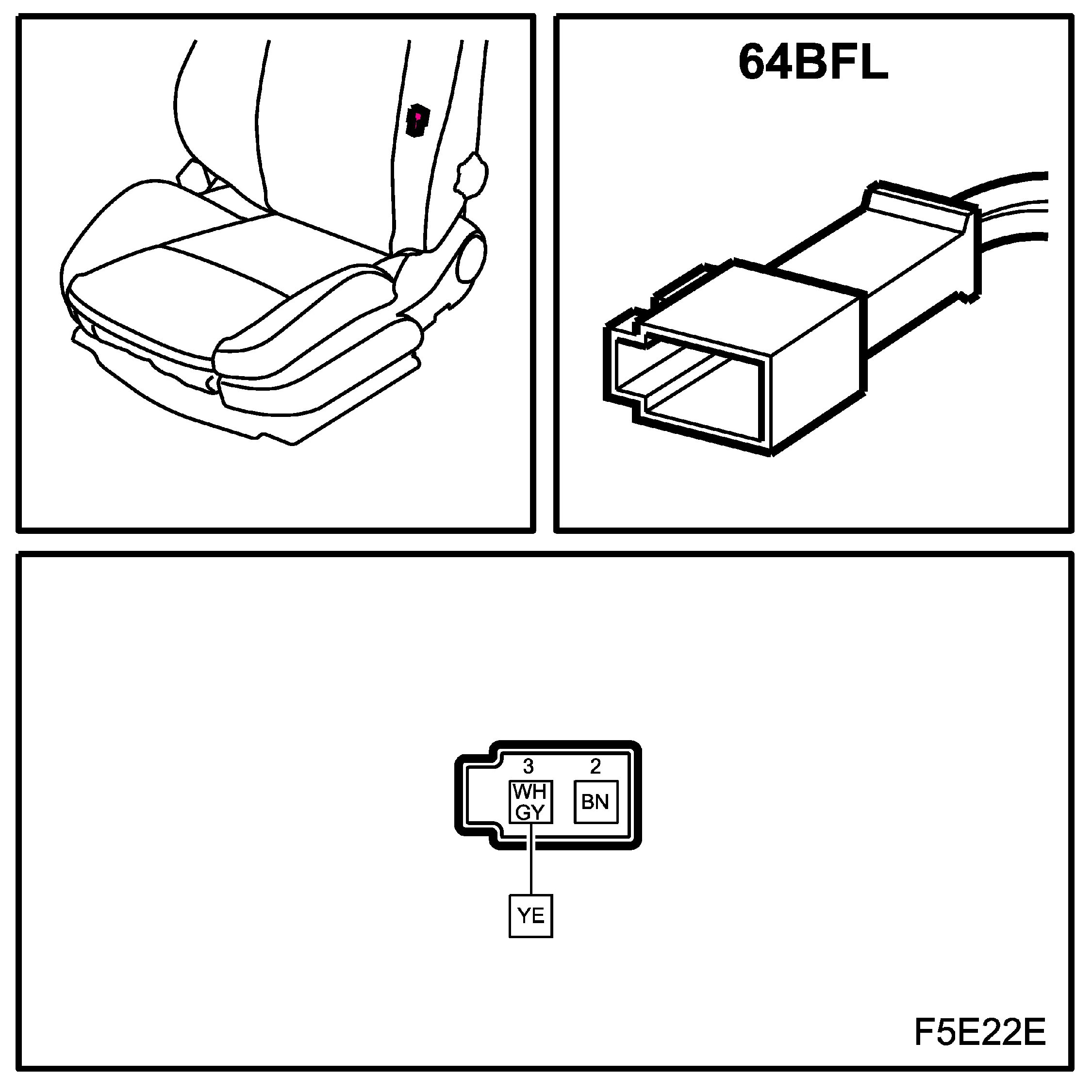

Heating Pad, Backrest (64B)
Location:
in the backrest
LH
RH
